Is your Genie garage door refusing to close, or does it reverse immediately after hitting the floor? You are not alone. This is one of the most common frustrations for homeowners, and in most cases, the culprit is a faulty or misaligned safety sensor. Replacement safety sensors for Genie garage door openers are often the quickest and most cost-effective solution to restore smooth operation and ensure your family’s safety.
Modern garage doors are equipped with infrared beams that act as an invisible barrier. If this beam is broken—by a pet, a toy, or even a spiderweb—the door stops to prevent injury. However, when the sensors themselves fail due to age, weather damage, or electrical issues, your door becomes unusable. In this comprehensive guide, we will walk you through everything you need to know about identifying, selecting, and installing new sensors for your Genie opener.
Understanding How Genie Safety Sensors Work

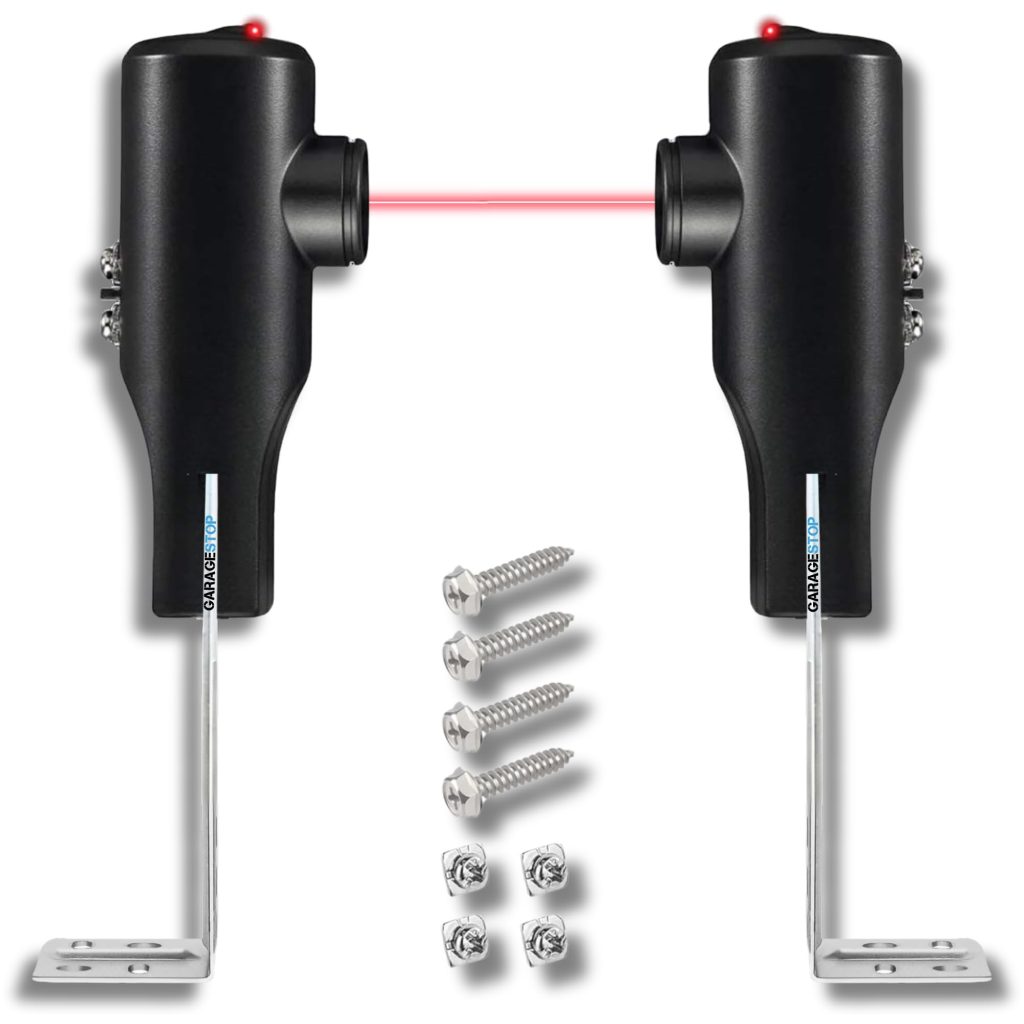

Before jumping into the replacement process, it helps to understand what these small devices actually do. Genie garage door openers use photo-eye sensors located near the bottom of the door tracks. One sensor sends an invisible infrared beam to the other. If the receiving sensor detects the beam, the light stays solid, indicating it is safe to close. If the beam is interrupted or the sensors malfunction, the light blinks, and the door refuses to close.
According to the U.S. Consumer Product Safety Commission, automatic reverse mechanisms and safety eyes have prevented thousands of entrapment incidents since they became mandatory in 1993. For more details on garage door safety standards, you can refer to Wikipedia’s article on Garage Door Openers.
Key Components of the System
- Sending Unit: Emits the infrared signal.
- Receiving Unit: Detects the signal.
- LED Indicators: Show status (solid green/amber means good; blinking means error).
- Wiring: Connects sensors to the main motor head.
Signs You Need Replacement Safety Sensors for Genie Garage Door Openers
How do you know if it’s time to buy new sensors rather than just cleaning or realigning the old ones? Look for these specific red flags:
- Persistent Blinking Lights: Even after cleaning the lenses and realigning the brackets, the LED lights continue to blink.
- Physical Damage: Cracks in the housing, frayed wires, or corrosion from moisture exposure.
- Inconsistent Operation: The door works sometimes but fails randomly, suggesting an intermittent electrical fault within the sensor unit.
- Age: If your Genie opener is over 10 years old, the internal components of the sensors may have degraded beyond repair.
Choosing the Right Replacement Sensors
Not all sensors are created equal. Using incompatible parts can lead to further frustration. Here is how to choose the right replacement safety sensors for Genie garage door openers.
Compatibility Check
Genie has produced several models over the years, including the Intellicode, SilentMax, and PowerMax series. Most modern Genie sensors are universal within their brand ecosystem, but it is crucial to check your model number.
| Sensor Type | Compatibility | Best For |
|---|---|---|
| Genie Universal Kit | Most Genie models post-1995 | Homeowners wanting a guaranteed fit |
| Third-Party Generic | Varies widely | Budget-conscious buyers (check reviews) |
| OEM (Original Equipment) | Specific Model Series | Purists seeking exact factory specs |
Wired vs. Wireless Options
- Wired Sensors: These are the standard. They are reliable, require no batteries, and connect directly to the opener unit via low-voltage wires. Recommendation: Stick with wired sensors for maximum reliability.
- Wireless Sensors: These exist but are rare for residential Genie units and often require additional receivers. They are generally not recommended for primary safety systems due to potential signal interference.
Step-by-Step Installation Guide
Replacing your sensors is a DIY-friendly task that typically takes less than 30 minutes. Follow these precise steps to ensure a successful installation.
Tools You Will Need
- Phillips-head screwdriver
- Wire strippers/cutters
- Electrical tape
- A ladder (if your opener is mounted high)
- New replacement sensor kit
Installation Steps
- Disconnect Power: Always unplug your Genie garage door opener or turn off the circuit breaker. Safety first!
- Remove Old Sensors: Unscrew the existing sensors from the door tracks. Cut the wires close to the sensor body, leaving enough length to strip and reconnect.
- Prepare the Wires: Strip about ½ inch of insulation from the ends of the existing wires coming from the garage ceiling. Do the same for the wires on your new sensors.
- Connect the Wires: Match the colors. Typically, white goes to white, and black (or red) goes to black (or red). Twist the copper strands together tightly.
- Tip: Use wire nuts for a secure connection, then wrap with electrical tape for extra protection against moisture.
- Mount the New Sensors: Attach the new brackets to the door tracks. Ensure they are positioned no higher than 6 inches from the ground.
- Align the Sensors: This is the most critical step. Point the sensors directly at each other. The LED lights should turn solid (usually green or amber, depending on the model). If they blink, adjust the angle slightly until the light stabilizes.
- Test the Door: Plug the opener back in. Press the wall button to close the door. Wave your hand in front of the beam while it closes; the door should immediately reverse. If it does, your installation was successful.
Troubleshooting Common Issues
Even with new replacement safety sensors for Genie garage door openers, you might encounter hiccups. Here is how to solve them.
Problem: Lights Are Solid But Door Won’t Close
- Solution: Check the travel limits. Sometimes, the issue isn’t the sensors but the down-limit setting on the motor head. Adjust the down arrow button on the wall console.
Problem: Lights Keep Blinking After Alignment
- Solution: Sunlight interference. Direct sunlight can overwhelm the infrared receiver. Try shading the sensors with a small piece of cardboard or installing a sun shield. Also, ensure the lens is perfectly clean.
Problem: One Light Is Off Completely
- Solution: This indicates a wiring break or a loose connection. Double-check your wire nuts and ensure the wires are securely connected to the terminal screws on the back of the motor head.
FAQ: Common Questions About Genie Safety Sensors
1. Can I use non-Genie brand sensors for my Genie opener?
Yes, many universal infrared sensors work with Genie openers as long as they operate on the standard 5-12V DC power supply used by most garage door openers. However, using OEM Genie parts ensures perfect compatibility and avoids potential voltage mismatches.
2. Why do my sensors work in the morning but fail in the afternoon?
This is likely due to sun interference. As the sun moves across the sky, direct beams can hit the receiving eye, confusing the sensor. Installing a simple shade or hood over the sensors can resolve this issue permanently.
3. How long do garage door safety sensors last?
With proper maintenance, sensors can last 10–15 years. However, exposure to extreme temperatures, moisture, and physical impacts can shorten their lifespan. If your home is in a humid climate, consider checking them annually for corrosion.
4. Is it dangerous to bypass the safety sensors?
Absolutely. Bypassing sensors removes the primary safety feature that prevents the door from crushing objects, pets, or people. It is illegal in many jurisdictions to operate a garage door without functional safety eyes. Always replace faulty sensors rather than disabling them.
5. What does it mean if the LED light is orange instead of green?
On many Genie models, the sending unit has an amber/orange light, and the receiving unit has a green light. If both are solid, the system is working. If the receiving unit (green) is off or blinking, the beam is blocked or misaligned. Consult your specific model’s manual for color codes.
Conclusion
Dealing with a malfunctioning garage door is stressful, but replacing the safety eyes is a straightforward fix that restores both convenience and security. By choosing the correct replacement safety sensors for Genie garage door openers and following our installation guide, you can save money on service calls and ensure your home remains safe.
Remember, regular maintenance—such as cleaning the lenses and checking alignment—can extend the life of your new sensors. If you found this guide helpful, please share it with friends or neighbors who might be struggling with their own garage door issues. A safe garage is a happy garage!
