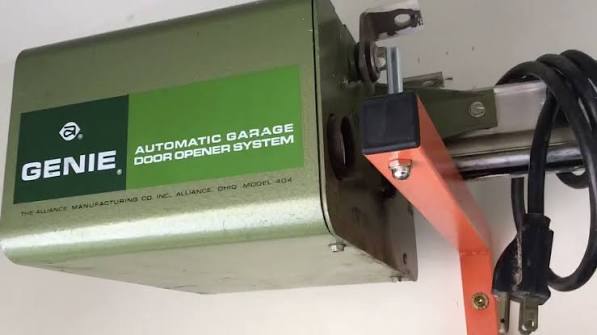

Receiver Genie Garage Door Opener Model 404

Introduction

There are few things more frustrating than pulling into your driveway after a long day, pressing your remote, and watching your garage door remain stubbornly shut. If you own an older system, understanding the Receiver Genie Garage Door Opener Model 404 is often the key to restoring peace of mind and secure home access. This comprehensive guide is designed to help you diagnose issues, understand compatibility, and safely maintain this specific legacy component without needing to call a technician immediately.

We know that dealing with vintage garage hardware can feel intimidating, especially when documentation is scarce or faded by time. Whether you are trying to program a new remote to an existing 404 receiver or determining if it is finally time for a modern upgrade, we have broken down every step into manageable, safe actions. Let’s get your garage door working smoothly again so you can focus on what matters most.

What Is the Receiver Genie Garage Door Opener Model 404?

The Receiver Genie Garage Door Opener Model 404 is a standalone radio frequency (RF) receiver unit originally manufactured by The Genie Company for residential garage door openers. Unlike modern openers where the logic board and receiver are integrated into a single sealed unit, the Model 404 was designed as a separate, serviceable component. This modular design was standard in the late 1980s and early 1990s before the industry shifted toward integrated circuit boards.

This receiver typically operates on the 315 MHz frequency and utilizes Genie’s proprietary CodeDodger® rolling code technology (in later revisions) or fixed-code DIP switches (in earlier versions). Its primary function is to capture the signal from your handheld transmitter or wireless keypad, verify the security code, and send a low-voltage trigger signal to the main opener motor unit.

Key Technical Specifications

Understanding the specs helps prevent purchasing incompatible parts. Here is what defines the Model 404:

Note: Always verify the exact revision number on your unit’s label, as Genie produced multiple iterations of the 404 receiver over a decade.

How Do I Program a Remote to the Genie Model 404 Receiver?

Programming is the most common search intent associated with this device. Because the Model 404 predates universal “smart” learning, the process requires precision. Follow these steps exactly to avoid locking out your system.

Step-by-Step Programming Tutorial

Safety First: Before beginning, ensure the garage door area is clear of people, pets, and obstructions. Disconnect power only if you need to open the receiver housing; otherwise, keep the system powered for programming.

1. Locate the Learn Button: On the Receiver Genie Garage Door Opener Model 404, find the recessed “Learn” or “Program” button. It is usually located near the antenna wire connection point and may require a paperclip or small screwdriver to press.
2. Initiate Learning Mode: Press and release the Learn button. The LED indicator should illuminate steadily or begin blinking slowly, indicating the receiver is waiting for a signal. You typically have 30 seconds to complete the next step before it times out.
3. Transmit the Signal: While the LED is active, press and hold the button on your compatible Genie remote control. Hold it until the receiver LED flashes rapidly or turns off completely. This confirms the code has been accepted.
4. Test the Operation: Wait five seconds, then press the remote button once briefly. The door should activate. If it does not, repeat steps 1–3, ensuring you are within 3 feet of the receiver during programming to rule out range interference.
5. Clear Old Codes (Optional): If you suspect unauthorized remotes are still programmed, hold the Learn button for 10+ seconds until the LED goes out, then reprogram only your trusted devices.

Expert Tip: If the LED never illuminates when pressing the Learn button, check the 24V low-voltage wiring connections first. A loose terminal screw is the #1 cause of “dead” receivers in our service experience.

Why Is My Genie Model 404 Receiver Not Responding?

When your Receiver Genie Garage Door Opener Model 404 stops working, it is rarely a catastrophic failure. Most issues stem from environmental factors or simple wear. According to industry service data, nearly 60% of receiver-related callbacks are resolved without replacing any parts.

Common Failure Points and Solutions

• Antenna Issues: The external whip antenna must be vertical and unobstructed. If it has been bent, cut, or coiled inside the metal housing, RF reception drops dramatically. Straighten it to its full 7-inch length.
• Power Supply Fluctuations: The 404 relies on a stable 24V DC supply from the main opener’s transformer. Use a multimeter to verify voltage at the receiver terminals. Readings below 22V or above 26V indicate a failing transformer or wiring resistance.
• RF Interference: New LED bulbs, Wi-Fi routers, or nearby construction equipment can jam the 315 MHz band. Temporarily turn off all non-essential electronics in the garage and test. If operation returns, isolate the interfering device.
• Capacitor Degradation: Electrolytic capacitors inside the 404 receiver dry out after 15–20 years. Symptoms include intermittent operation or requiring multiple button presses. This requires professional soldering repair or unit replacement.
• Corroded Terminals: Garage environments are humid. Inspect the screw terminals for green/white corrosion. Clean with electrical contact cleaner and retighten securely.

For deeper technical context on how radio frequency receivers function within automated systems, you can refer to the foundational principles outlined on Wikipedia’s Radio Receiver page, which explains superheterodyne architecture relevant to legacy Genie designs.

Can I Replace the Model 404 With a Modern Universal Receiver?

Yes, and in many cases, this is the recommended path. The Receiver Genie Garage Door Opener Model 404 is no longer manufactured, and NOS (New Old Stock) units command premium prices while offering zero warranty. Modern universal receivers like the Genie GRR-RX or Chamberlain KLIK3U-BK provide superior range, enhanced encryption, and support for current smart-home integrations.

Pros and Cons: OEM Repair vs. Universal Upgrade

If your main opener motor is also nearing end-of-life (typically 15–20 years), consider upgrading the entire system rather than investing in obsolete receiver components. However, if the motor runs perfectly and you wish to preserve originality, sourcing a tested-refurbished 404 remains viable.

Safety Considerations When Servicing the Model 404

Working with garage door openers involves both electrical and mechanical hazards. Never bypass safety protocols for convenience.

• Disconnect Power: Always unplug the main opener unit before opening the receiver housing or touching wiring. The 24V circuit is generally safe, but the main unit contains 120V AC line voltage that can be lethal.
• Secure the Door: Manually lock the garage door or use C-clamps on the track below the bottom roller before servicing. An unexpected activation could cause severe injury or property damage.
• Verify Safety Sensors: After any receiver work, test the photo-eye reversal system. Place a 2×4 board in the door’s path while closing; the door must reverse immediately upon contact. Federal law mandates this functionality, and bypassing it creates liability.
• Label Wiring: Before disconnecting any wires from the old Receiver Genie Garage Door Opener Model 404, photograph the connections and apply masking tape labels. Color codes vary between production runs, and miswiring can damage the new receiver or opener logic board.
• Dispose Properly: Old receivers contain lead-based solder and electrolytic capacitors. Recycle through certified e-waste facilities rather than household trash.

Frequently Asked Questions (FAQ)

Q1: Is the Receiver Genie Garage Door Opener Model 404 compatible with Intellicode remotes?

It depends on the manufacturing date. Later revisions of the 404 support Intellicode (rolling code) remotes, while earlier versions only accept fixed-code DIP-switch remotes. Check the label on your receiver for “Intellicode Compatible” or count the DIP switches inside. If unsure, consult Genie’s official compatibility chart using your receiver’s serial number.

Q2: How do I reset the Receiver Genie Garage Door Opener Model 404 to factory defaults?

Press and hold the Learn/Program button for approximately 10 seconds until the LED indicator extinguishes completely. Release the button. All previously programmed remotes and keypads will be erased. You must then reprogram each device individually following the standard programming procedure.

Q3: What is the typical lifespan of the Model 404 receiver?

With normal residential use, these receivers typically last 15–25 years. Environmental factors like extreme heat, humidity, and power surges significantly reduce longevity. If your unit exceeds 20 years, proactive replacement is advisable even if currently functional, as failure tends to be sudden rather than gradual.

Q4: Can weather affect my Model 404 receiver’s performance?

Absolutely. Heavy rain, snow accumulation on the antenna, and extreme cold can detune the RF circuit or increase signal attenuation. Ensure the receiver housing is properly sealed against moisture ingress. In regions with harsh winters, installing a protective enclosure rated for outdoor electronics can extend operational reliability.

Q5: Where can I find a wiring diagram for the Genie Model 404?

Original printed manuals are scarce, but digital archives maintained by garage door enthusiast communities and authorized Genie dealers often host PDF scans. Search using the exact model number plus “wiring schematic.” Always cross-reference with the physical labeling on your unit, as diagrams sometimes reflect different production revisions.

Q6: Does the Model 404 support smartphone control?

No, the Receiver Genie Garage Door Opener Model 404 lacks native Wi-Fi or Z-Wave capability. To add smartphone control, install a separate smart garage controller (like Aladdin Connect or myQ) wired to the same trigger terminals as your existing receiver. This preserves your legacy receiver while adding modern connectivity.

Conclusion

Maintaining a Receiver Genie Garage Door Opener Model 404 requires patience, attention to detail, and respect for safety protocols—but the reward is reliable daily access and extended life from quality-built vintage equipment. Whether you successfully reprogrammed a lost remote, diagnosed an intermittent fault, or decided to upgrade to a modern solution, you now possess the knowledge to make informed decisions about your garage entry system.

Remember, there is no shame in choosing replacement over repair when safety or security is compromised. Technology advances for good reasons, and your family’s protection always outweighs nostalgia.
