Introduction
Is your Genie garage door opener failing to respond to smart home commands or external keypads? You are likely dealing with a faulty interface, and installing a relay circuit for Genie garage door opener systems is often the most reliable solution. We understand how frustrating it is when your automated entry fails, but this guide will walk you through the safe, effective process of restoring full functionality to your garage.

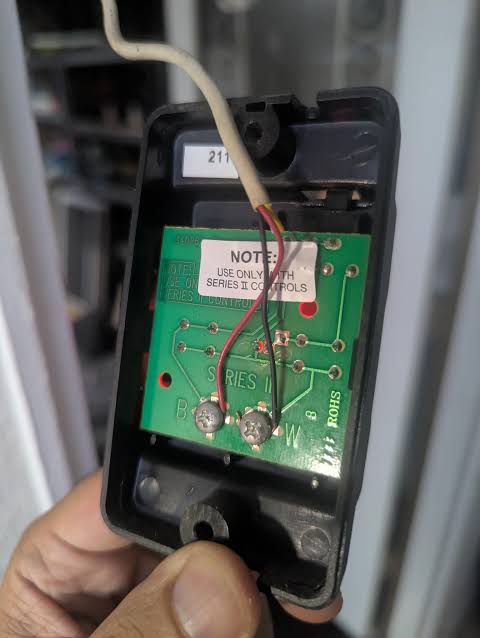

What Is a Relay Circuit For Genie Garage Door Opener?
A relay circuit for Genie garage door opener acts as an electrical bridge between low-voltage control devices (like smart switches, keypads, or home automation hubs) and the high-voltage motor unit. Instead of sending power directly to the motor, the relay uses a small electromagnetic switch to simulate the physical press of a wall button.
This isolation is critical for safety and equipment longevity. According to electrical engineering principles documented on Wikipedia, relays allow a low-power circuit to control a higher-power circuit without direct electrical connection. For Genie models specifically, this prevents voltage spikes from damaging sensitive logic boards in newer Intellicode units.
Why Do You Need One?
- Smart Home Integration: Most Wi-Fi controllers cannot handle the amperage of a garage motor directly.
- Voltage Protection: Isolates 12V/24V control signals from 120V AC motor lines.
- Multiple Trigger Points: Allows hardwired keypads, RFID readers, and voice assistants to share one opener.
- Legacy Compatibility: Enables modern tech to work with older Genie chain-drive models.
How Does a Genie Garage Door Relay Work?
Understanding the mechanism helps prevent installation errors. When you activate a trigger device, current flows through the relay’s coil, creating a magnetic field. This field pulls a metal contact arm closed, completing the circuit between the opener’s “push-button” terminals.
| Component | Function | Typical Spec for Genie |
|---|---|---|
| Coil | Receives trigger signal | 12V DC or 24V AC |
| Contacts | Switches motor circuit | Dry contact, NO (Normally Open) |
| Diode | Suppresses back-EMF | 1N4007 recommended |
| Housing | Protects internal parts | DIN-rail or enclosed PCB |
Key Insight: Genie openers manufactured after 2005 typically use dry contact inputs. Using a wet-contact (voltage-supplying) relay can fry the logic board. Always verify your model’s manual before wiring.
Step-by-Step Installation Guide
Disclaimer: Working with garage door openers involves electricity and moving mechanical parts. Disconnect power at the breaker before beginning. If unsure, hire a licensed electrician.
Tools Required
- Multimeter (for continuity testing)
- Wire strippers/crimpers
- 18-gauge stranded wire
- Screwdriver set (Phillips #2)
- Electrical tape or heat shrink tubing
- Compatible dry-contact relay module
Installation Steps
- Cut Power Completely: Unplug the Genie opener and turn off the dedicated circuit breaker. Wait 60 seconds for capacitor discharge.
- Locate Control Terminals: Remove the light lens cover. Find the two screw terminals labeled “PUSH BUTTON,” “WALL CTRL,” or similar. These are usually near the antenna wire.
- Test for Voltage: Use your multimeter to confirm zero voltage across these terminals. Never skip this step.
- Wire Relay Output: Connect the relay’s normally open (NO) contacts to the push-button terminals using 18-gauge wire. Polarity does not matter for dry contacts.
- Connect Relay Input: Run separate wires from your trigger device (smart switch, keypad) to the relay coil terminals. Match voltage requirements exactly (e.g., 12V DC to 12V coil).
- Install Flyback Diode: Solder a diode across the relay coil (cathode to positive) to suppress voltage spikes. This extends relay life by up to 3x.
- Secure and Test: Mount the relay away from moving parts. Restore power and test manually first, then via your trigger device. Listen for a distinct click from the relay before the motor engages.
Pro Tip: Label all wires during installation. Future troubleshooting will take minutes instead of hours.
Common Wiring Mistakes to Avoid
Even experienced DIYers make these errors when installing a relay circuit for Genie garage door opener:
- Using Wet-Contact Relays: Supplying voltage to dry-contact terminals damages the opener’s microprocessor instantly.
- Skipping the Flyback Diode: Back-EMF from the coil erodes contacts over time, causing intermittent failures.
- Undersized Wiring: 22-gauge wire may cause voltage drop over long runs (>15 feet). Stick to 18-gauge minimum.
- Ignoring Safety Sensors: Never bypass photo-eye sensors to “fix” relay issues. This creates lethal entrapment hazards.
- Poor Grounding: Unshielded relay wires near motor cables pick up EMI noise, causing phantom triggers.
Choosing the Right Relay Module
Not all relays are equal. Consider these factors:
- Contact Rating: Minimum 2A @ 30VDC (Genie control circuits are low-current).
- Coil Voltage: Must match your trigger source exactly.
- Enclosure Type: Indoor-rated modules fail in unheated garages below 32°F. Choose -40°C rated units for cold climates.
- Certifications: Look for UL-listed or CE-marked modules. Uncertified relays lack fire-safe materials.
Popular compatible options include the Altronix RAC24 (24VAC) and Functional Devices RIBU1 (universal dry contact). Always cross-reference with your Genie model number.
FAQ Section
Can I use any universal relay with my Genie opener?
No. Only dry-contact, normally-open relays are safe. Universal relays that supply voltage will damage Genie logic boards. Verify compatibility in your opener’s manual or consult Genie technical support.
Why does my relay click but the door doesn’t move?
Check three things: (1) Confirm relay contacts close with multimeter continuity test, (2) Ensure wires connect to correct “push button” terminals (not safety sensor ports), (3) Verify opener isn’t in lock/vacation mode. Also inspect for broken wires at terminal screws.
Is a relay circuit required for Wi-Fi garage controllers?
Yes, for most aftermarket Wi-Fi modules. Brands like Chamberlain MyQ or Meross include built-in relays, but standalone ESP32/Raspberry Pi setups require external dry-contact relays. Direct GPIO connections risk destroying both devices.
How long do garage door relays last?
Quality electromechanical relays last 100,000–500,000 cycles. At 4 daily uses, that’s 7–35 years. Solid-state relays last longer but cost more. Replace if clicking becomes inconsistent or delayed.
Can I install this myself if I’m not an electrician?
Basic relay swaps are DIY-friendly if you follow safety protocols and have multimeter skills. However, if your opener lacks clear terminal labels, shows burn marks, or you’re uncomfortable working near 120V components, hire a professional. Garage doors store significant kinetic energy—mistakes can be dangerous.
Will adding a relay void my Genie warranty?
Installing third-party relays may void warranty if damage occurs. Document pre-installation condition with photos. Use UL-listed components and follow NEC guidelines to strengthen warranty defense. Contact Genie support beforehand for model-specific guidance.
Conclusion
Installing a proper relay circuit for Genie garage door opener transforms unreliable access into seamless, integrated control. By choosing dry-contact relays, following precise wiring steps, and respecting safety protocols, you’ll gain years of dependable operation while protecting your investment. Remember: patience during installation prevents costly repairs later.
