Genie Garage Door Opener Wired Wall Console Not Working? Here’s How to Troubleshoot and Fix It

If your Genie Garage Door Opener Wired Wall Console is not working, you’re not alone. Many homeowners experience issues with their wall-mounted garage door controls, leaving them frustrated and unsure of what to do next. Fortunately, most problems can be identified and resolved without needing to call a professional technician.

Genie Garage Door Opener Wired Wall Console Not Working

In this guide, we’ll walk you through everything you need to know when your Genie Garage Door Opener Wired Wall Console stops working, including possible causes, DIY troubleshooting steps, repair options, and maintenance tips to prevent future issues. Whether you’re dealing with unresponsive buttons, intermittent power, or flashing LEDs, we’ve got you covered.

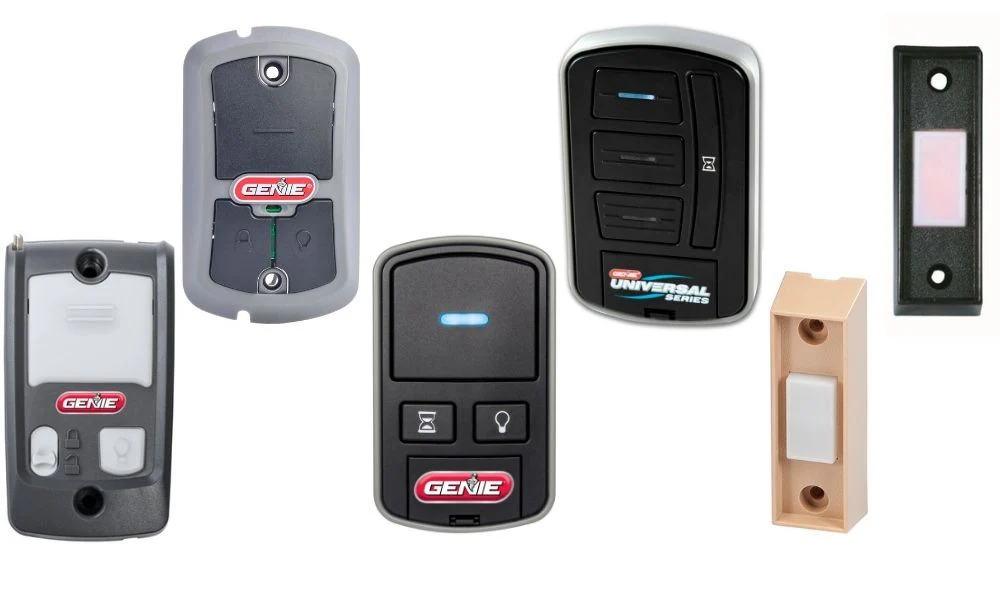

Understanding the Genie Garage Door Opener Wired Wall Console

The Genie wired wall console is the main control unit mounted on the wall of your garage. It allows you to:

  • Open and close the garage door
  • Turn on/off the garage light
  • Lock the system for added security

When this device malfunctions, it can disrupt daily routines and raise safety concerns. Unlike wireless remotes, the wired wall console is directly connected to the garage door opener via low-voltage wiring, meaning issues can arise from both the device itself or the wiring infrastructure.


Common Signs Your Genie Garage Door Opener Wired Wall Console Is Not Working

Before you begin troubleshooting, look for these common symptoms:

  • No LED light on the wall console
  • Buttons not responding when pressed
  • Garage door doesn’t open or close from the wall unit
  • Light won’t turn on/off from the console
  • LED light flashing or flickering
  • Console only works intermittently

Each of these signs can point to different causes—from wiring issues to internal component failure.


Genie Garage Door Opener Wired Wall Console Not Working: Top Causes and Fixes

Here we’ll go over the most frequent reasons why the Genie Garage Door Opener Wired Wall Console is not working, along with how you can fix each issue.

1. Loose or Damaged Wiring

The wired wall console communicates directly with the opener via low-voltage wires. Over time, these wires may become:

  • Disconnected
  • Loose at the terminals
  • Pinched or cut
  • Damaged by pests

How to Fix:

  • Disconnect power to the garage door opener.
  • Remove the wall console from the wall.
  • Inspect the wires for fraying or loose connections.
  • Ensure the wires are connected firmly to the terminal screws.
  • If needed, strip a fresh end of wire and reattach securely.

2. Blown Fuse or Power Issue

If your console shows no signs of power (no LED lights), the issue could stem from a power supply failure or a blown fuse inside the garage door opener unit.

How to Fix:

  • Make sure the opener is plugged in and the outlet is functional.
  • Check for tripped breakers in your home’s electrical panel.
  • Some Genie models have an internal fuse—refer to the user manual for how to check and replace it.

3. Faulty Wall Console

Like any electrical device, the wall console itself can fail over time due to wear, age, or internal component failure.

How to Fix:

  • Test the wiring by connecting a new Genie-compatible wired wall console.
  • If the new console works, the original one is faulty and needs replacement.

4. Incorrect Wiring or Installation

Sometimes during installation or DIY repairs, wires may be connected incorrectly. Reversed polarity or wrong terminals can prevent proper operation.

How to Fix:

  • Refer to your Genie garage door opener manual for the correct wiring diagram.
  • Double-check that the red and white wires are connected to their corresponding terminals.

5. Interference From Lock Mode

Most Genie wall consoles feature a lock switch that disables remote access for added security. If this is accidentally engaged, it may seem like the wall console isn’t working.

How to Fix:

  • Locate the lock button or switch on the wall console.
  • Hold it down for several seconds to toggle the lock mode off.
  • Test the buttons again.

Troubleshooting Steps for Genie Garage Door Opener Wired Wall Console Issues

If you’re not sure where the problem lies, follow these step-by-step troubleshooting instructions:

Step 1: Check for LED Indicators

  • If the LED is off, you may have a wiring or power issue.
  • If the LED is blinking, it could indicate a specific error (refer to your user manual).
  • If the LED is on but unresponsive, the switch may be bad or jammed.

Step 2: Inspect Wiring and Terminals

  • Turn off power to the opener.
  • Remove the wall console faceplate.
  • Use a multimeter to check continuity across the wires.
  • Verify there’s no corrosion, rust, or loose connections.

Step 3: Test with a New Console

Purchase a replacement Genie wired wall console and temporarily wire it into your existing setup. If the new console works, you’ve isolated the problem.

Step 4: Reset the Opener

  • Unplug the opener for 1 minute.
  • Plug it back in and wait for the system to reset.
  • This can clear glitches that might prevent communication with the wall unit.

Preventative Maintenance Tips

Once your wall console is working again, follow these maintenance steps to avoid future issues:

  • Check wiring annually for damage or wear.
  • Clean the console periodically to avoid dust build-up.
  • Avoid using staples to fasten wires—they can cause short circuits.
  • Inspect for moisture—water damage can corrode internal circuits.
  • Keep manuals and diagrams accessible for future reference.

When to Call a Professional

If you’ve exhausted all the DIY options and your Genie Garage Door Opener Wired Wall Console is still not working, it might be time to call a certified garage door technician. Situations that typically require expert help include:

  • Complex wiring repairs
  • Short circuits
  • Board-level failures inside the garage opener unit
  • Integration issues with smart home systems

Replacing vs. Repairing the Wall Console

Should you repair the wall console or replace it? Here are a few considerations:

ConditionRecommendation
Cosmetic damage onlyTry to repair
No power or LEDReplace
Buttons unresponsiveReplace
Damaged wiring inside consoleReplace
Intermittent operationTest then replace if needed

Genie replacement wall consoles are relatively inexpensive and widely available online or at home improvement stores. Make sure to match the model number or compatibility with your garage door opener unit.


Genie Wall Console Compatibility Checklist

Before buying a replacement console, ensure it is:

  • Compatible with your Genie opener model
  • Designed for wired operation
  • Equipped with features you need (light control, lock switch, etc.)
  • Manufactured or recommended by Genie to ensure full functionality

Summary: What to Do When Your Genie Garage Door Opener Wired Wall Console Is Not Working

Here’s a quick recap of what you should do when your Genie Garage Door Opener Wired Wall Console is not working:

  1. Check power and LED lights for initial clues.
  2. Inspect and test wiring connections.
  3. Try a replacement console to isolate faults.
  4. Check for lock mode or safety lockout features.
  5. Reset the garage opener to clear potential errors.
  6. Consider professional help for complex or unsafe issues.

By following these steps, you can restore your garage door system’s full functionality quickly and safely—saving money and time while keeping your home secure.
