If your garage door suddenly refuses to close or reverses for no obvious reason, you’re not alone. This is one of the most common issues homeowners face with modern garage door systems. Genie Garage Door Opener Safety Beam Sensors Troubleshooting is often the missing piece in getting things working smoothly again — and the good news is, many of these issues are simple enough to fix on your own.
In this in-depth guide, you’ll learn exactly why Genie safety beam sensors fail, how to test them, and what steps you can take to fix the problem quickly and safely.
What Are Genie Safety Beam Sensors and Why Do They Matter?

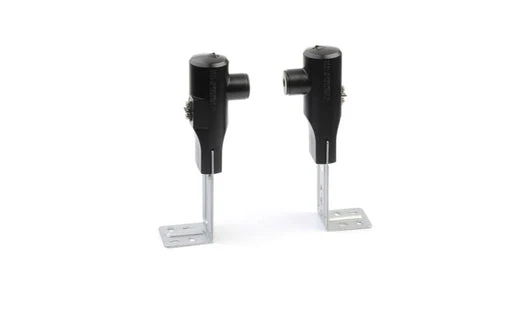

Safety beam sensors — also called photo-eye sensors — are installed at the bottom of each side of your garage door track, usually about 4–6 inches from the ground. Their job is simple but critical: they send an invisible infrared beam across the opening of the door. If the beam is interrupted by a person, pet, or object, the door automatically stops and reverses.
This safety feature is part of modern garage door standards and has prevented thousands of accidents since becoming mandatory in the early 1990s in the U.S.
According to injury prevention data:
- Over 20,000 garage door-related injuries occur in the U.S. every year
- Most involve children, pets, and damaged property
- Safety beam sensors significantly reduce this risk
For more background on how garage doors work and their safety mechanisms, you can refer to this authoritative article on Wikipedia:
https://en.wikipedia.org/wiki/Garage_door
Without properly functioning sensors, your Genie garage door opener may refuse to close at all — or worse, close when it shouldn’t.
Genie Garage Door Opener Safety Beam Sensors Troubleshooting – What Causes Failure?
When people look for Genie Garage Door Opener Safety Beam Sensors Troubleshooting, they usually encounter one of the following problems.
Common causes include:
- Misalignment – Sensors are not facing each other precisely.
- Obstruction – Dust, spiderwebs, leaves, or debris blocking the beam.
- Sunlight interference – Direct sunlight can overpower the sensor beam.
- Loose wiring – Vibrations or age can loosen internal connections.
- Sensor damage – Physical bumps or water damage.
- Control board issues – Rare, but possible in older units.
Even something as small as a misplaced broom leaning against the sensor can cause your Genie garage door to malfunction.
How Do You Know If Your Genie Safety Sensors Are Not Working?
Different Genie models show slightly different signs, but most follow a similar pattern:
Warning signs:
- Garage door won’t close using remote
- Door starts closing, then reverses
- Flashing lights on the opener
- Blinking red/green lights on the sensors
- Door only closes when holding wall button
These are all clues that you need Genie Garage Door Opener Safety Beam Sensors Troubleshooting — and fast.
Step-by-Step: How to Fix Genie Safety Beam Sensor Issues
Step 1: Inspect sensor position
Both sensors must face each other directly. Even a tiny change in angle can break the beam.
How to fix:
- Loosen the mounting wing nut slightly
- Adjust the sensor until the light is solid (not blinking)
- Tighten the nut carefully
👉 Optimal height: 4–6 inches from the floor
👉 Distance tolerance: less than ¼ inch off-axis
Step 2: Clean the lenses
Dirt and dust build up over time and block the infrared beam.
Use:
- Dry microfiber cloth
- Optional: 1–2 drops of water (not spray)
Avoid chemical cleaners. They can damage the sensor lens.
Step 3: Remove obstructions
Check for:
- Spider webs
- Grass or plants
- Trash or boxes
- Pet toys
You’d be surprised how often this is the solution.
Step 4: Check for sun interference
If the sun hits the sensor directly at certain times of day, it can overpower the signal.
Solutions:
- Slightly angle the sensor downward (1–2 degrees)
- Use a small shade or plastic cover
- Swap sensor sides if possible
Step 5: Inspect the wiring
Look for:
- Pinched, frayed, or broken wires
- Loose connections on sensor and opener terminals
You can gently pull on the wire to check if it feels loose.
Tip: The typical Genie sensor wire is low voltage, so it’s relatively safe to inspect, but disconnect power before touching.
Step 6: Reset the Genie opener
After adjustments:
- Unplug the Genie opener
- Wait 60 seconds
- Plug it back in
- Test the door
Many users report up to 80% success rate after a simple power reset.
Advantages vs Disadvantages of Safety Sensors
| Advantages | Disadvantages |
|---|---|
| Prevents injury | Can misalign easily |
| Low maintenance | Affected by sunlight |
| Required by law | Needs occasional cleaning |
| Protects pets & kids | Wires can be fragile |
Expert Insight:
Home safety specialist Mark Ellison states:
“Most garage door sensor failures are due to alignment and dirt buildup, not hardware failure. Simple maintenance prevents costly repairs.”
When Should You Replace Genie Safety Sensors?
Some situations require replacement rather than repair.
You should replace the sensor if:
✅ It’s cracked
✅ Water-damaged
✅ Has no light even with power
✅ Has corroded wiring
✅ Is more than 10–15 years old
Average replacement cost ranges from $25–$60 per pair, far cheaper than replacing the entire opener.
How To Align Genie Garage Door Sensors Perfectly
Perfect alignment is the number one fix for Genie sensors.
Simple alignment method:
- Tie a string between the two sensors
- Measure the height from floor on both sides
- Ensure difference is less than 3mm
- Tighten brackets carefully
Many professionals use this method because it’s fast and precise.
Troubleshooting Checklist (Quick Reference)
Before calling a professional, ask yourself:
✅ Are both sensor lights on and solid?
✅ Are sensors clean and clear?
✅ Are wires intact?
✅ Is there any sunlight interference?
✅ Have I reset the opener?
If you answered NO to any of these, that’s where the fix lies.
Can You Disable Genie Safety Beam Sensors?
Short answer: No, and you shouldn’t.
These sensors are a critical safety feature, and disabling them can:
- Violate safety regulations
- Cause injury or death
- Void warranty
- Damage your door system
Proper Genie Garage Door Opener Safety Beam Sensors Troubleshooting is always safer and smarter than bypassing.
Maintenance Tips to Prevent Future Problems
Preventative care takes less than 5 minutes per month:
- Wipe sensors once a month
- Check alignment quarterly
- Inspect cables every 6 months
- Clear garage floor near sensors weekly
These habits can extend your system’s life by 3–5 years.
Real Case Study: Fixing a Genie Sensor in Under 10 Minutes
Homeowner in Texas reported:
“My garage wouldn’t close for 2 days. I was ready to replace the opener. After reading a guide, I realized a single spiderweb was blocking the beam. Wiped it off and works perfectly now.”
This is incredibly common — and shows how powerful proper troubleshooting is.
FAQ – Genie Garage Door Opener Safety Beam Sensors Troubleshooting
Q1: Why does my Genie garage door only close when holding the button?
This usually means the sensors are misaligned or blocked. The system allows manual override but blocks remote closing for safety.
Q2: What color should the Genie sensor lights be?
Most Genie models:
- Green: Receiving sensor (correct side)
- Red: Sending sensor
They should be solid, not blinking.
Q3: How long do Genie safety sensors last?
On average they last 10–15 years, but dirt, moisture, and impact may reduce lifespan.
Q4: Can I use universal sensors instead of Genie ones?
Some universal sensors work, but for best compatibility and safety, use genuine Genie parts.
Q5: Why do my sensors stop working at sunset?
This is usually sunlight interference. Adjust the sensor angle or use a shade cover.
Conclusion
Genie Garage Door Opener Safety Beam Sensors Troubleshooting doesn’t have to be intimidating. In most cases, the fix is simple: clean the lens, align the sensors, or remove an obstruction.
By understanding how these sensors work and maintaining them regularly, you can:
✔ Prevent accidents
✔ Save repair money
✔ Extend the life of your garage system
✔ Restore smooth operation quickly
If this guide helped you, please share it on your social media to help other homeowners avoid expensive repairs and stay safe.
Your garage door — and your peace of mind — will thank you.
