Is your garage door making unusual squealing or slipping noises when it operates? You are not alone, and the culprit is often a worn-out internal drive component. In this comprehensive guide, we will walk you through everything you need to know about the Genie Garage Door Opener A20 V Belt, helping you restore quiet, smooth, and reliable operation to your home safely and efficiently.
What Is the Genie Garage Door Opener A20 V Belt?
The Genie Garage Door Opener A20 V Belt is a critical internal drive component found in specific Genie motor assemblies. Unlike the long rubber belts that run along the ceiling rail, this is a classic industrial-style V-belt. It is responsible for transferring power directly from the electric motor to the drive mechanism
beilerhydraulics.com.
Genie has long been a trusted name in residential garage door openers, renowned for durable screw-drive and belt-drive systems. While modern units often utilize long, reinforced rubber belts running the length of the ceiling track, many classic and heavy-duty Genie models rely on this internal V-belt setup. This compact system is designed to handle the high-torque requirements of heavier doors.
Understanding its specifications is crucial for purchasing the correct replacement. The A20 designation indicates a standard “Classic” V-belt profile. It features a top width of 1/2 inch (0.5 inches) and a thickness of 5/16 inch (0.312 inches)
www.biedlers-belts.com. The “20” refers to its inside circumference of 20 inches, which translates to an outside length of approximately 22 inches
www.vbelts4less.com. These belts are typically manufactured from heat- and oil-resistant rubber compounds, ensuring durability under the mechanical stress of daily garage door cycles
www.motion.com.
Signs Your Genie A20 V Belt Needs Replacement
Ignoring a failing drive belt can lead to complete opener failure or costly damage to the motor. Watch out for these common warning signs:
- Unusual Noises: A high-pitched squealing or screeching sound during operation often indicates a loose or glazed belt slipping on the pulley.
- Inconsistent Movement: If the garage door hesitates, jerks, or struggles to open, the belt may have stretched or lost its grip on the sprocket.
- Visible Wear and Tear: Cracks, fraying edges, or a shiny, glazed appearance on the belt’s surface are clear indicators that the rubber has degraded.
- Burning Smell: Friction from a slipping belt can generate excessive heat, sometimes producing a faint burning rubber odor near the motor head.
Tools You Will Need
Before you begin, gather the following tools to ensure a smooth and safe process:
- A sturdy step ladder
- 7/16-inch socket wrench or adjustable wrench
- Phillips-head and flat-head screwdrivers
- Work gloves to protect your hands from sharp metal edges
- A flashlight or headlamp for better visibility inside the motor housing
- A smartphone (to take reference photos before disassembly)

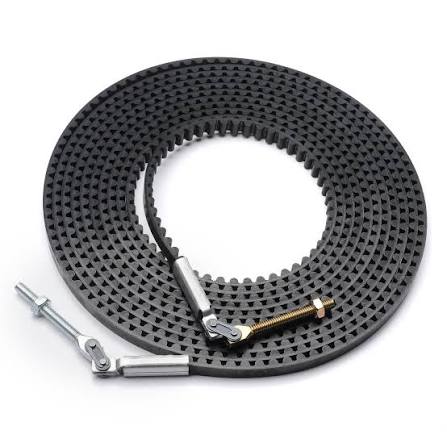

Genie A20 V Belt vs. Rail Drive Belts: A Quick Comparison
Many homeowners confuse the internal motor V-belt with the main rail drive belt. Here is a quick breakdown to ensure you are fixing the right part:
| Feature | Genie A20 V Belt (Internal) | Genie Rail Drive Belt (e.g., 37561R.S) |
|---|---|---|
| Location | Inside the motor head assembly | Runs along the ceiling track/rail |
| Primary Function | Transfers power from motor to drive shaft | Pulls the trolley and garage door |
| Typical Length | ~22 inches (outside circumference) | 223+ inches (for 7-foot doors) bluestarsparts.com |
| Replacement Difficulty | Moderate (requires opening motor cover) | Moderate to Hard (requires rail disassembly) |
Step-by-Step Guide to Replacing the Genie A20 V Belt
Replacing this component is a highly rewarding DIY project. Follow these concrete steps to ensure a safe and successful installation.
Pro Tip: For optimal rubber flexibility and ease of installation, perform this task in a garage environment with a temperature between 22–28°C (72–82°F).
- Disconnect Power: Safety first. Unplug the garage door opener’s power cord from the wall receptacle. If your unit has a battery backup, disconnect it as well store.geniecompany.com.
- Disengage the Opener: Pull the emergency release cord on the carriage to manually close the garage door. This relieves tension on the drive system store.geniecompany.com.
- Remove the Motor Cover: Use a step ladder to access the motor head. Typically, you will need a 7/16-inch socket or a Phillips-head screwdriver to remove the screws securing the plastic motor cover www.facebook.com.
- Locate and Inspect the Belt: Identify the A20 V belt connecting the motor pulley to the drive sprocket. Take a quick photo with your phone for reference during reassembly.
- Release Tension and Remove: Loosen the motor mounting bolts slightly to release tension on the belt. Slide the old, worn A20 V belt off both pulleys.
- Install the New Belt: Place the new Genie Garage Door Opener A20 V Belt onto the motor pulley first, then stretch it over the drive sprocket. Ensure the belt sits squarely in the grooves without twisting.
- Re-tension and Secure: Push the motor back to apply proper tension to the belt. The belt should have about 1/2 inch of deflection when pressed firmly in the middle. Tighten the motor mounting bolts securely.
- Reassemble and Test: Replace the motor cover and secure all screws. Plug the opener back in, reconnect the battery backup, and test the door operation using the wall button.
For a deeper understanding of mechanical power transmission and belt mechanics, you can refer to the comprehensive overview on V-belts via Wikipedia.
Pro Maintenance Tips to Extend Belt Life
Preventative maintenance is the key to avoiding unexpected breakdowns and extending the lifespan of your opener.
- Do Not Lubricate the Belt: Never apply grease, oil, or silicone spray to the V-belt itself. This will cause it to slip and degrade rapidly www.justanswer.com.
- Lubricate Moving Parts: Instead, apply a lithium-based grease or silicone spray to the door’s rollers, hinges, and springs. This reduces the overall load on the motor.
- Check Alignment: Periodically inspect the pulleys to ensure they are perfectly aligned. Misalignment causes uneven wear and premature belt failure.
- Keep the Area Clean: Dust and debris can accumulate inside the motor housing. Use a soft brush or compressed air to gently clean the area during your bi-annual maintenance checks.
Frequently Asked Questions (FAQ)
Q1: How do I know if my Genie opener uses an A20 V Belt? A: The A20 V belt is typically found in older Genie screw-drive models or specific internal motor assemblies. The best way to confirm is to open the motor cover and check the existing belt for the “A20” or “4L220” marking printed on its side
www.amazon.com.
Q2: Can I use a generic A20 V belt instead of an OEM Genie part? A: Yes, because the A20 is a standard industrial belt size (1/2″ x 22″ outside length), high-quality generic brands like Gates or Dayco are perfectly acceptable. They are often more cost-effective than branded OEM parts while maintaining the same heat- and oil-resistant specifications
beilerhydraulics.com.
Q3: How long does a Genie A20 V belt typically last? A: With normal residential use (2–4 cycles per day), a high-quality A20 V belt can last anywhere from 7 to 10 years. However, extreme temperature fluctuations in an uninsulated garage can accelerate rubber degradation.
Q4: Is it safe to replace the V belt myself? A: Yes, it is generally safe for a DIYer, provided you strictly follow safety protocols. Always disconnect the power and disengage the opener from the door before opening the motor housing to prevent accidental activation or injury.
Q5: What happens if I install the belt too tight? A: Over-tensioning an A20 V belt puts excessive stress on the motor bearings and the drive shaft. This can lead to premature motor failure, increased operational noise, and a significantly shortened lifespan for the belt itself.
Q6: Can a worn A20 V belt damage my garage door opener motor? A: Absolutely. If a worn belt continues to slip, it generates excessive friction and heat. Over time, this heat can degrade the motor’s internal components, warp plastic pulleys, and ultimately lead to a complete motor burnout. Replacing a $15 belt promptly can save you from a $300+ motor replacement.
Conclusion
Replacing a worn Genie Garage Door Opener A20 V Belt is a straightforward, cost-effective way to restore peace and reliability to your home. By understanding the exact specifications, recognizing the early warning signs, and following our detailed step-by-step guide, you can confidently tackle this repair without calling a professional. Remember, regular, simple maintenance is your best defense against unexpected garage door failures.
