Installing a new garage door opener can feel overwhelming, but you are not alone. Whether you are upgrading your home or replacing an old unit, finding a reliable Genie Garage Door Opener 550 Installation Youtube guide is the first step to a smooth, safe DIY project. Let’s break down the process into simple, manageable steps so you can get your garage running perfectly in no time.
Genie Garage Door Opener 550 Installation Youtube Overview
Before diving into the physical setup, it is helpful to understand why the Genie Chain Drive 550 (Model 2035-TKV) is a top choice for US homeowners. According to industry reviews, it offers a robust 1/2 HPc motor specifically designed for standard sectional residential garage doors
www.amazon.com.
To help you decide if this is the right fit, here is a quick breakdown:
Pros:
- Heavy-Duty Performance: Features a durable chain drive system built for long-lasting reliability.
- Safety First: Equipped with the Safe-T-Beam® non-contact reversing system and Safe-T-Reverse® contact reversing system hdsupplysolutions.com.
- Smart Compatibility: Works seamlessly with Intellicode® encryption and in-car systems like HomeLink® and Car2U®.
Cons:
- Noise Level: Chain drives are naturally louder than modern belt-drive alternatives.
- Weight: The motor unit is heavy, often requiring a two-person lift during ceiling mounting.
Expert Insight: “A properly installed garage door opener not only enhances daily convenience but significantly improves home safety by ensuring reliable reversal mechanisms,” notes a certified door system technician.
Essential Tools and Preparation
To ensure a seamless installation, gather these tools before you begin. Being prepared prevents mid-project trips to the hardware store:
- Power drill with assorted bits
- Socket wrench set (typically 9/16″ and 1/2″)
- Stepladder (minimum 6-foot height)
- Measuring tape and a spirit level
- Safety glasses and heavy-duty work gloves
- A helper (highly recommended for lifting the motor unit)
Pro Tip: Always disconnect power to the existing opener and manually disable any physical door locks before starting your work.
Step-by-Step Genie Garage Door Opener 550 Installation Guide
Follow these concrete, step-by-step instructions to install your Genie 550 safely and efficiently. Treat this as your ultimate textual companion to any video tutorial.
Step 1: Assemble the Rail Lay the 5-piece rail assembly on a flat, clean surface. Connect the rail sections using the provided hardware, ensuring the chain is properly seated in the sprocket. Tighten all bolts securely, but avoid over-tightening, which can strip the threads or warp the rail.
Step 2: Install the Header Bracket Locate the exact center of your garage door opening. Mount the header bracket to the structural support above the door. Use the provided lag screws, ensuring the bracket is anchored into solid wood or a structural header, not just drywall. The bottom of the bracket should be positioned exactly 2 to 4 inches above the top of the garage door when fully open.

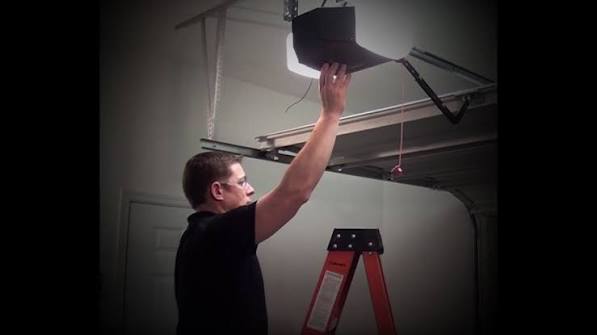

Step 3: Mount the Motor Unit This is where a helper is invaluable. Lift the motor unit and attach the hanging straps to the ceiling joists. For optimal performance and safety compliance, the bottom of the motor unit should be mounted at least 7 feet above the floor
m.media-amazon.com. Ensure the rail is perfectly level and aligned with the header bracket.
Step 4: Connect the Door Arm Attach the curved door arm to the top section of the garage door using the provided clevis pin and cotter pin. Connect the straight door arm to the carriage on the rail. Adjust the turnbuckle so the door arm is perfectly level when the door is in the closed position.
Step 5: Wire the Safe-T-Beam® System The Safe-T-Beam® system is mandatory for safe operation. Mount the sending and receiving sensors on each side of the garage door track, exactly 6 inches above the floor. Run the wires neatly along the wall and ceiling, securing them with insulated staples. Connect the wires to the designated terminals on the back of the motor unit. The system will not allow the door to close if the sensors are misaligned or obstructed.
Step 6: Mount the Wall Console Install the wall control button inside the garage. It must be mounted at least 5 feet above the floor to prevent small children from reaching it. Ensure it is within clear sight of the garage door and away from any moving parts.
Step 7: Program Travel Limits and Force Plug the unit into a grounded electrical outlet. Never use an extension cord.
- Press and hold the DOWN arrow button until the door is fully closed and the weather seal is compressed. Press the SET/PRGM button to lock the limit.
- Press and hold the UP arrow button until the door is fully open. Press SET/PRGM to lock.
- The force control is automatically set during the first full open-and-close cycle.
Step 8: Perform the Contact Reverse Test For your family’s safety, this test is non-negotiable. Place a 1-1/2 inch high object (like a standard 2×4 piece of wood laid flat) at the center of the door opening
m.media-amazon.com. Close the door using the wall console. Upon contact, the door must stop and reverse to the fully open position within two seconds. If it does not, adjust the down travel limit and repeat the test.
Common Installation Mistakes to Avoid
Even with a great visual tutorial, DIYers often stumble on a few key areas:
- Ignoring Door Balance: If your garage door does not stay open when manually lifted halfway, the springs are unbalanced. Do not install the opener until a professional repairs the springs, as the opener will strain and fail prematurely.
- Misaligned Sensors: If the LED lights on the Safe-T-Beam® are not solid, the door will not close. Ensure nothing is blocking the invisible infrared beam, including direct sunlight or spiderwebs.
- Skipping the Grounding Step: The opener must be plugged into a properly grounded outlet to prevent electrical shock and equipment damage.
For a deeper understanding of how these mechanisms protect your home and the history of automated entry systems, you can read more about the garage door opener on Wikipedia.
Frequently Asked Questions (FAQ)
Q1: How long does it take to install a Genie Garage Door Opener 550?
A: For a DIYer with basic tools and a helper, the installation typically takes between 1.5 to 2.5 hours. First-time installers should allocate up to 3 hours to carefully follow the manual and complete all safety checks.
Q2: Can I install the Genie 550 on an 8-foot tall garage door?
A: Yes. The standard Genie Chain Drive 550 is designed for doors up to 7 feet tall. However, you can easily accommodate an 8-foot door by purchasing a separate Genie Rail Extension Kit, which adds the necessary length to the rail assembly.
Q3: Why won’t my Genie 550 close, and the lights are flashing?
A: This is almost always a Safe-T-Beam® sensor issue. Check if the LED lights on the sensors are solid. If one is flashing or off, realign the sensors so they face each other directly, and ensure no dirt or debris is interfering with the infrared beam.
Q4: Is the Genie Chain Drive 550 compatible with my car’s built-in remote?
A: Absolutely. The Genie 550 is fully compatible with major in-car garage door opener systems, including HomeLink® and Car2U®. You can program your vehicle by following the specific “Vehicle Programming” steps outlined in the official manual.
Q5: Do I need a professional to install this, or is it a true DIY project?
A: The Genie 550 is designed with the DIY homeowner in mind, featuring clear, step-by-step instructions and pre-programmed remotes. However, if your garage door has broken springs, damaged cables, or is severely unbalanced, you must hire a trained door system technician before proceeding.
Conclusion
Installing a Genie Garage Door Opener 550 does not have to be a daunting task. By following this comprehensive guide, gathering the right tools, and prioritizing critical safety checks like the Contact Reverse Test, you can achieve professional-grade results right from your own garage. Not only will you save on professional installation fees, but you will also gain the confidence of maintaining your home’s largest moving object.
