If your Genie Model 404 garage door opener suddenly stops working, reverses mid-cycle, or flashes an error light, the issue could be the rotation sensor. This small but crucial component monitors the door’s movement to ensure it opens and closes smoothly and safely.
Homeowners often panic when their garage door opener malfunctions, thinking they’ll need to replace the entire unit. In most cases, however, replacing or cleaning the rotation sensor on Genie Model 404 garage door opener fixes the issue quickly and affordably.
In this guide, you’ll learn how the sensor works, how to diagnose issues, and how to replace it step-by-step — even if you’re not a professional technician.

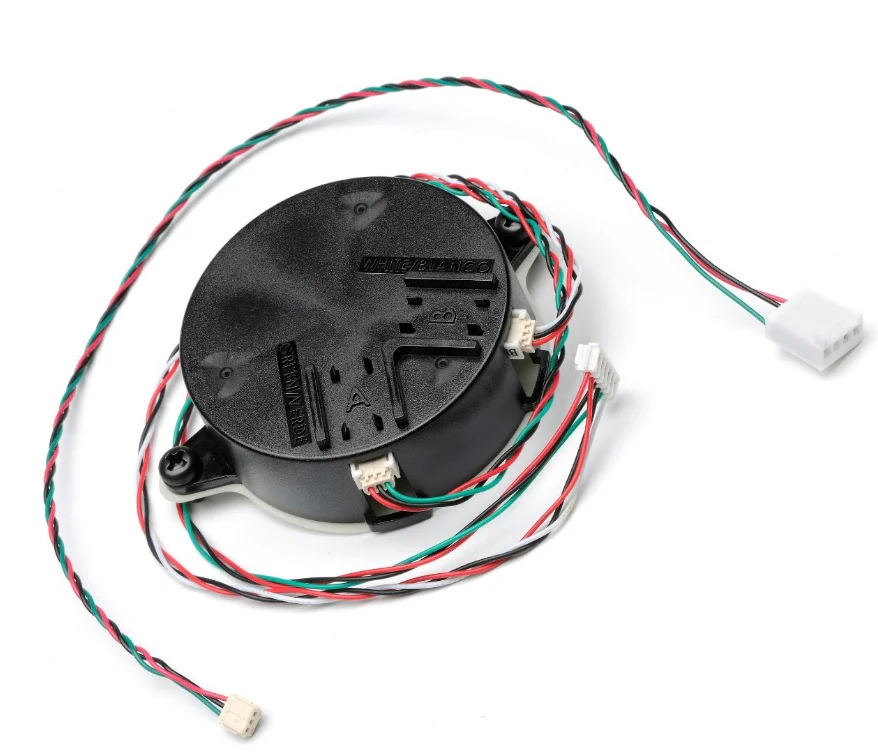

What Is the Rotation Sensor on Genie Model 404 Garage Door Opener?
The rotation sensor (also called a RPM sensor or optical encoder) is responsible for detecting the speed and direction of the motor shaft. It sends this data to the opener’s logic board to regulate motor movement.
When the sensor malfunctions, the opener cannot properly determine door position, leading to random stops, failure to close, or flashing LEDs.
In short: The rotation sensor is the “eye” of your Genie opener’s motor system.
How It Works
- The motor shaft rotates, passing through a slotted optical wheel.
- The sensor reads light interruptions from the wheel.
- The controller board interprets the pulses to determine movement direction and speed.
- The system adjusts motor torque and stops at open/close limits accordingly.
Without a working sensor, the door can’t operate safely — it may reverse unexpectedly or fail to open entirely.
Signs of a Faulty Rotation Sensor
You might suspect a sensor problem if your Genie 404 exhibits one or more of these symptoms:
- The door opens partially and then stops.
- The motor hums but doesn’t move the chain or belt.
- The LED light blinks continuously (often red or orange).
- The door reverses unexpectedly before closing.
- Error codes appear on the opener’s display (if equipped).
| Symptom | Possible Cause | Solution |
|---|---|---|
| Door stops mid-travel | Dirty or misaligned sensor | Clean or adjust sensor |
| Continuous blinking light | Sensor not detecting motion | Replace sensor |
| Motor runs but door doesn’t move | Broken optical wheel | Inspect motor shaft |
| Door reverses instantly | Faulty RPM feedback | Replace rotation sensor |
Tools and Materials You’ll Need
Before starting the repair, gather these items:
- Phillips and flathead screwdriver
- ¼-inch nut driver
- Replacement Genie Model 404 rotation sensor
- Small brush or compressed air
- Electrical contact cleaner
- Ladder and safety gloves
Estimated time: 30–45 minutes
Step-by-Step Guide: How to Replace the Rotation Sensor on Genie Model 404
Step 1: Disconnect Power
Unplug the garage door opener to prevent electrical shock. Never work on the motor assembly while power is connected.
Step 2: Remove the Motor Cover
- Unscrew the side and rear cover panels.
- Carefully remove the housing to expose the motor and circuit board.
You’ll find the rotation sensor mounted near the rear end of the motor shaft.
Step 3: Detach the Old Sensor
- Locate the sensor assembly—a small black component with a wiring connector.
- Gently unplug the sensor harness from the circuit board.
- Unscrew or unclip the sensor bracket.
- Remove the optical wheel if necessary (it’s often mounted on the motor shaft).
Step 4: Clean the Area
Before installing the new sensor:
- Use a small brush or compressed air to remove dust.
- Clean the optical wheel using isopropyl alcohol or contact cleaner.
- Make sure there’s no debris between the sensor and the wheel.
Even a small dust particle can block light detection and cause malfunction.
Step 5: Install the New Rotation Sensor
- Position the new sensor so that the optical wheel fits precisely between its detection arms.
- Reattach the mounting screws or clips.
- Reconnect the sensor harness to the circuit board.
Make sure all connections are snug and the cable isn’t twisted or pinched.
Step 6: Test the System
- Plug in the opener again.
- Press the wall control to operate the door.
- Watch for smooth, consistent movement with no stalls or flashing LEDs.
If everything functions correctly, reinstall the cover panels.
Genie Model 404 Rotation Sensor Troubleshooting Chart
| Issue | Diagnosis | Fix |
|---|---|---|
| LED flashing rapidly | Sensor misalignment | Re-seat or adjust sensor |
| No LED or motor response | Loose wire harness | Reconnect or replace wire |
| Motor spins endlessly | Faulty circuit board | Replace logic board |
| Door jerks open/close | Dirty optical wheel | Clean with alcohol pad |
Expert Tips for Maintenance
- Keep the motor housing clean: Dust and spider webs can block the sensor beam.
- Inspect annually: Check for cracks in the optical wheel or loose brackets.
- Avoid water exposure: Moisture can corrode electrical components.
- Lubricate the door system: A smooth track reduces strain on the opener motor and sensor.
According to Genie’s official maintenance guide, regular inspection of sensors and wiring can extend the opener’s lifespan by up to 25%.
When to Replace vs. Repair
Sometimes cleaning the sensor can solve the issue. However, replacement is better when:
- The sensor lens is cracked or scratched.
- The optical wheel is bent or missing teeth.
- The sensor fails continuity tests with a multimeter.
Replacement sensors for Genie Model 404 are affordable (typically $15–$30) and widely available at home improvement stores or online.
Safety Notes
- Always disconnect power before handling any internal components.
- Avoid using lubricants or solvents near the sensor—this can damage plastic parts.
- If you’re not comfortable with electrical repair, consider hiring a certified Genie technician.
For more technical background, check Wikipedia – Garage Door Opener for details on opener mechanisms and safety systems.
FAQ
Q1: What does the rotation sensor do on my Genie Model 404?
It detects motor shaft rotation and sends speed and direction data to the control board, ensuring the door stops at correct limits.
Q2: Can I clean the sensor instead of replacing it?
Yes, if the problem is dust or debris buildup. Use compressed air and alcohol to clean gently.
Q3: Are Genie rotation sensors universal?
No. Always check compatibility by model number — Genie Model 404 uses a specific sensor shape and connector type.
Q4: Why is my opener light blinking after replacing the sensor?
This may indicate misalignment or wiring issues. Double-check the harness connection and optical wheel position.
Q5: How long does a rotation sensor last?
Typically 5–10 years depending on usage and maintenance frequency.
Q6: Can I install it myself?
Yes, most homeowners can replace it with basic tools and patience. Just follow the safety steps in this guide.
Conclusion
The rotation sensor on Genie Model 404 garage door opener plays a critical role in safe and reliable operation. When it fails, your opener may act unpredictably—but fortunately, the fix is straightforward and inexpensive.
By following the step-by-step instructions above, you can replace the sensor yourself in under an hour and restore your garage door to smooth working condition.
