Rail Extension Kit Garage Door Opener Genie

Introduction

Is your new high-lift garage door leaving your Genie opener struggling to reach the top? Nothing is more frustrating than investing in a beautiful new door only to realize your existing opener’s rail is too short, causing safety sensor failures or motor strain. Finding the correct rail extension kit garage door opener Genie model is the critical missing link between a dysfunctional system and smooth, safe operation. We understand the confusion surrounding part numbers and compatibility, so let’s get your garage back on track with confidence.

What Is a Genie Rail Extension Kit and When Do You Need One?

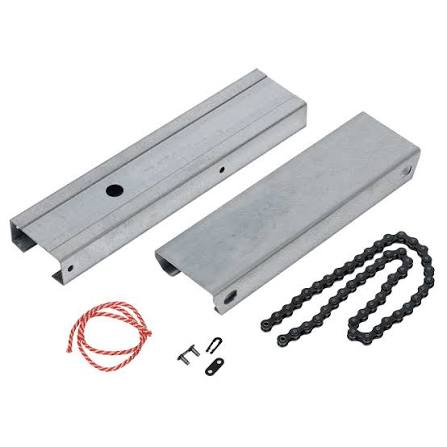

A rail extension kit garage door opener Genie is an aftermarket component designed to lengthen the existing T-rail or I-beam rail of your chain-drive or belt-drive opener. Standard Genie openers typically come with a rail assembly designed for standard 7-foot tall garage doors. However, many modern homes utilize high-lift tracks, vaulted ceilings, or taller 8-foot doors that require additional vertical travel.

According to industry standards referenced in mechanical engineering principles on Wikipedia, the counterbalance system and drive mechanism must be perfectly aligned with the door’s travel path to prevent premature wear. If your door travels higher than the factory rail allows, the trolley will hit the limit switch before the door fully opens, or worse, derail entirely.

You specifically need this kit if:

• You have installed an 8-foot high garage door.
• Your garage has a vaulted or cathedral ceiling requiring high-lift track conversion.
• You are replacing a standard door with a taller custom wood or steel door.
• Your current opener works but stops 6–12 inches short of full open position.

Which Genie Models Are Compatible With Rail Extension Kits?

Not every Genie opener accepts an extension. Using the wrong kit can void your warranty and create dangerous pinch points. Below is a verified compatibility breakdown based on current manufacturer specifications and installer data.

⚠️ Critical Safety Warning: Never attempt to extend a direct-screw drive or wall-mount jackshaft opener using standard rail kits. These systems rely on precise internal gearing that cannot accommodate external rail modifications. Always verify your model number against the official Genie compatibility chart before purchasing.

How to Install a Genie Rail Extension Kit: Step-by-Step Guide

Installing a rail extension kit garage door opener Genie requires basic hand tools and approximately 60–90 minutes. While professional installation is always recommended for safety, competent DIYers can complete this task by following these precise steps.

Tools Required

• Socket wrench set (3/8″ and 1/2″)
• Phillips head screwdriver
• Stepladder (rated for 300+ lbs)
• Safety glasses and work gloves
• Tape measure
• Assistant (mandatory for rail support)

Installation Steps

1. Disconnect Power and Release Tension: Unplug the opener from the electrical outlet. Pull the emergency release cord to disengage the trolley from the carriage. Manually lower the door to the fully closed position and lock it in place with vise grips on the track below the bottom roller. This prevents accidental movement during work.
2. Remove Existing Rail End Cap: Locate the end cap at the header bracket end of the rail. Remove the two securing bolts using your socket wrench. Carefully slide the end cap off the rail. Have your assistant support the rail weight during this step to prevent bending.
3. Attach Extension Section: Align the extension rail piece with the existing rail. The male/female interlocking tabs must seat completely flush. Insert the provided splice plate over the joint and secure with four hex bolts. Torque to 15–20 ft-lbs — overtightening can warp the rail channel and cause trolley binding.
4. Reinstall End Cap and Header Bracket: Slide the end cap onto the new extended rail end. Reattach the header bracket to the structural framing above the door opening. Ensure the bracket is mounted to solid wood blocking or steel framing, never just drywall or insulation.
5. Extend Chain/Belt and Adjust Limits: For chain drives, add the included chain links using the master link tool. For belt drives, replace the entire belt with the longer version included in the kit. Reconnect power and run the opener through three complete cycles. Adjust the upper limit switch so the door stops exactly when fully open without straining against the header.
6. Test Safety Sensors: Place a 2×4 board vertically in the door’s path while closing. The door must reverse immediately upon contact. Test the photo-eye sensors by breaking the beam during descent. Both safety systems must function correctly before regular use.

Pros and Cons of Extending vs. Replacing Your Opener

Before purchasing a rail extension kit garage door opener Genie, weigh these factors against buying a new high-lift compatible unit.

Pros of Rail Extension:

• Cost Effective: Kits typically cost $80–$150 versus $300–$500 for a new opener plus installation.
• Preserves Existing Investment: Keeps your functioning motor and logic board intact.
• Faster Solution: No rewiring or reprogramming of remotes/keypads needed.
• OEM Compatibility: Maintains original safety certifications when using genuine parts.

Cons of Rail Extension:

• Limited Availability: Some older models have discontinued extension kits.
• Installation Complexity: Requires mechanical aptitude and proper torque specifications.
• Potential Wear: Extended rails may experience slightly more flex under heavy loads.
• Warranty Considerations: Self-installation may affect remaining warranty coverage.

Expert Insight: “If your Genie opener is over 12 years old or shows signs of gear wear, skip the extension kit and invest in a new DC-motor unit,” advises certified garage door technicians. Modern soft-start DC motors handle high-lift applications more efficiently than extended AC systems, reducing long-term maintenance costs by up to 40%.

Common Mistakes to Avoid During Installation

Even experienced homeowners make errors that compromise safety and performance. Avoid these frequent pitfalls:

• Skipping the Manual Lock: Failing to lock the door in place before disassembly can result in uncontrolled descent and severe injury.
• Using Non-OEM Hardware: Generic bolts may not meet shear strength requirements. Always use hardware included in the genuine rail extension kit garage door opener Genie.
• Ignoring Rail Alignment: Even 1/8″ misalignment at the splice joint causes trolley chatter and accelerated wear. Use a straightedge to verify perfect alignment before final tightening.
• Forgetting Limit Reset: Extended travel requires recalibrating both upper and lower limits. Factory presets will no longer match your modified system.
• Neglecting Spring Balance Check: Taller doors often require spring adjustment. An unbalanced door puts excessive load on the extended rail and motor.

Frequently Asked Questions (FAQ)

Can I use a Genie rail extension kit on a belt-drive opener?

Yes, specific kits like the 39026R are engineered for SilentMax and StealthDrive belt models. However, you must replace the entire belt with the longer version included in the kit. Never splice or stretch an existing belt, as this creates uneven tension and premature failure.

Will extending the rail void my Genie warranty?

Using genuine Genie extension kits installed according to manufacturer instructions does not void the warranty. However, damage caused by improper installation, non-OEM parts, or exceeding rated door height limits is not covered. Keep your purchase receipt and installation photos as documentation.

How do I know which extension kit fits my specific Genie model?

Locate the model number on the motor head label (usually near the light lens). Cross-reference this with Genie’s official compatibility chart or consult an authorized dealer. Serial number prefixes also indicate production year and rail type, which affects kit selection.

Can I install the extension kit myself, or should I hire a pro?

DIY installation is feasible for those comfortable with mechanical assembly and working at height. However, if you lack experience with garage door springs, electrical systems, or structural mounting, hire a certified technician. Professional installation typically costs $150–$250 and includes safety verification and warranty protection.

My door still won’t open fully after installing the extension kit. What’s wrong?

First, verify the upper limit switch was adjusted to the new travel distance. Second, check that the chain/belt has proper tension (should deflect 1/4″–1/2″ at midpoint). Third, ensure the door springs are correctly balanced for the increased height. Finally, inspect the splice joint for binding or misalignment that restricts trolley movement.

Are universal rail extensions safe for Genie openers?

No. Universal kits lack model-specific engineering tolerances and safety testing. They may fit physically but fail catastrophically under load. Always use OEM rail extension kit garage door opener Genie components to maintain UL certification and operational safety.

Conclusion

Securing the right rail extension kit garage door opener Genie transforms an incompatible system into a reliable, safe solution for your high-lift garage door. By understanding compatibility, following precise installation protocols, and avoiding common mistakes, you can extend your opener’s functionality without compromising safety or performance. Remember, when in doubt, consulting a certified professional ensures your family’s safety and protects your investment.
