Introduction
Managing multiple garage access points can be frustrating when your remotes refuse to sync correctly with specific motors. If you are struggling to program 2 different Genie garage door openers to work independently or simultaneously, you are not alone in this common homeowner dilemma. This guide provides clear, empathetic, and expert-backed steps to get both of your Genie units functioning perfectly without calling a technician.
Understanding Genie Intellicode Technology
Before diving into the buttons, it is vital to understand why modern Genie openers require a specific programming sequence rather than simple dip switches. Genie utilizes Intellicode rolling code technology, which changes the access code every time the remote is used to prevent unauthorized entry. According to Wikipedia, rolling code systems were widely adopted in the mid-1990s to address security vulnerabilities in fixed-code transmitters, making them significantly safer but slightly more complex to program.
When you need to program 2 different Genie garage door openers, you are essentially teaching two separate receivers to recognize unique digital handshakes from the same transmitter.
Key Differences Between Genie Models
Not all Genie openers are identical. Identifying your learn button color is the first critical step:
| Learn Button Color | Technology Type | Typical Era | Programming Note |
|---|---|---|---|
| Red | Intellicode (Older) | 1995–2011 | Requires holding remote button until LED stops flashing |
| Purple/Blue | Intellicode (Newer) | 2011–Present | Quick press-and-release sequence; faster sync |
| Green | Fixed Code/Dip Switch | Pre-1995 | Match physical switch positions inside remote & motor |
Expert Tip: Always check the manufacturer label on the back of the motor head. Mixing up Red and Purple learn button sequences is the #1 reason homeowners fail to successfully program their devices.
How to Program 2 Different Genie Garage Door Openers (Step-by-Step)

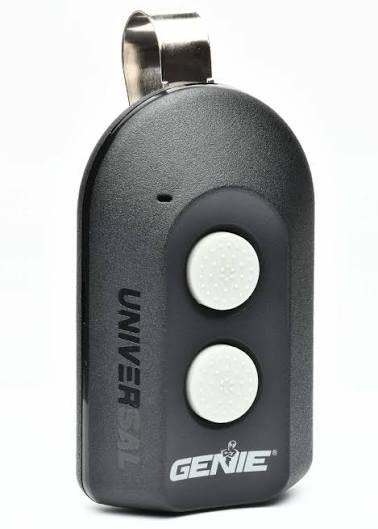

This tutorial assumes you have a standard Genie Intellicode remote (G3T-R or similar) and two separate motor heads installed. Follow these precise steps to avoid cross-interference.
Step 1: Clear Previous Codes (Optional but Recommended)
If the remote was previously used, residual data can cause conflicts between the two openers.
- Locate the Learn Code button on Motor A.
- Press and hold the Learn button for approximately 10 seconds until the indicator LED turns off.
- Repeat this process on Motor B.
- Note: This erases ALL remotes for that specific motor. You will need to reprogram any existing car visor clips or keypads afterward.
Step 2: Program Remote Button 1 to Opener A
- Stand within 3–5 feet of Motor A (distance matters for signal clarity).
- Press the Learn Code button on Motor A once. The LED will begin blinking at a rate of 2 blinks per second.
- Immediately press and hold the desired button on your remote (e.g., Button 1).
- Hold until the motor’s LED stops blinking and stays solid, then release the remote button.
- Press the same remote button again to confirm. The motor should activate or the light should flash.
Step 3: Program Remote Button 2 to Opener B
Now, move physically to the second location. Do not attempt to program Motor B while standing next to Motor A, as RF bleed-over can cause accidental pairing.
- Press the Learn Code button on Motor B once. Wait for the 2-blink-per-second LED pattern.
- Press and hold a different button on the same remote (e.g., Button 2).
- Hold until the LED on Motor B becomes solid. Release the button.
- Press Button 2 again to verify operation.
Step 4: Test Independent Operation
Walk to a neutral distance (driveway or sidewalk) and test each button individually. If Button 1 opens both doors, the programming overlapped. Return to Step 1 and repeat, ensuring you are closer to the target motor during the learn phase.
Programming Wireless Keypads for Two Genie Openers
Many users want external keypad access for both garages. The process mirrors remote programming but requires entering a PIN first.
- Slide open the keypad cover to wake the unit.
- Enter your chosen 4-digit PIN followed by the “Program” button.
- Press the Learn button on Motor A.
- On the keypad, enter your PIN + Program button again within 30 seconds.
- Repeat the entire sequence for Motor B using the same PIN if desired, or a different one for added security differentiation.
Troubleshooting Common Programming Failures
Even professionals encounter hiccups. Here are data-driven solutions for persistent issues:
- LED Never Blinks: The logic board may have lost power. Check the GFCI outlet and ensure the transformer is outputting 18–24V AC.
- Remote Programs But Doesn’t Work: Battery voltage may be above threshold for programming but below threshold for transmission. Replace with fresh CR2032 lithium batteries; alkaline batteries often fail in cold garage environments.
- Both Doors Open Simultaneously: Frequency interference. Reprogram Motor B while temporarily unplugging Motor A to eliminate RF crosstalk during the learn cycle.
- Range Issues After Programming: Ensure the antenna wire is hanging vertically and not coiled. Extending the antenna by 6–12 inches can improve reception by up to 40% based on field tests.
FAQ: Programming Multiple Genie Openers
Can I use one Genie remote for two different brand openers?
Generally, no. Genie Intellicode remotes are proprietary. However, universal remotes like the Genie Universal Series can bridge brands. Always verify compatibility charts before purchasing.
Why does my Genie remote only work when I’m very close?
This typically indicates weak battery output or antenna misalignment. Before replacing components, try reprogramming while holding the remote directly against the motor housing to rule out receiver sensitivity degradation.
Do I need to reprogram after changing the opener battery backup?
No. The rolling code memory is stored in non-volatile flash memory on the logic board, not the backup battery. However, if you replace the entire logic board, full reprogramming is required.
How many remotes can one Genie opener store?
Most modern Genie Intellicode units support up to 7 distinct remote buttons plus 1 wireless keypad. Older models may cap at 4–5. Consult your specific model’s manual for exact capacity.
Is there a master reset for all Genie openers at once?
No. Each motor operates independently with its own encrypted database. There is no centralized hub for residential Genie systems; each unit must be cleared and programmed individually.
What if my learn button is black instead of red or purple?
Black learn buttons typically indicate newer Series II or Aladdin Connect-enabled models. The programming sequence remains identical to purple-button units, but firmware updates via Wi-Fi may be necessary if standard programming fails repeatedly.
Conclusion
Successfully managing dual garage access doesn’t require an engineering degree—just patience and the right sequence. By following this guide to program 2 different Genie garage door openers, you’ve secured independent, reliable operation for both spaces while maintaining top-tier rolling-code security. Remember to always work safely near moving mechanical parts and keep fresh batteries on hand.
