Introduction
Have you just finished installing your Genie garage door opener only to notice a red light staying on? Don’t worry — this is one of the most common issues homeowners face after installation.
In this guide, we’ll walk you through how to install Genie garage door opener and fix the red light on issue, step by step. By the end, you’ll understand what that red light means, how to solve it, and how to ensure your opener runs safely and reliably.

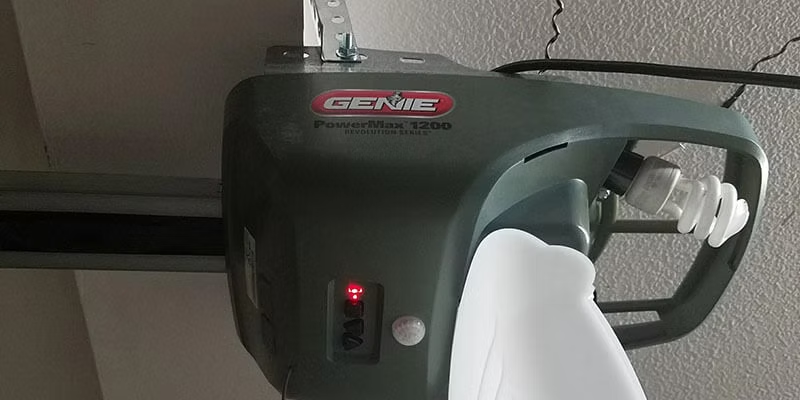

Understanding the Red Light on Genie Garage Door Opener
Before fixing the problem, it’s important to understand what the red indicator light actually signals. The Genie opener uses a Safe-T-Beam® system — a safety sensor that prevents the door from closing when something blocks its path.
When you see a solid or blinking red light, it usually points to an issue with these sensors or their alignment.
Common Meanings of the Red Light
| Light Behavior | Possible Meaning |
|---|---|
| Solid red light | Sensor receiving signal correctly |
| Flashing red light | Sensor misalignment or obstruction |
| No red light | Power or wiring issue |
| Red + green mismatch | Beam not connected properly |
💡 Did you know? Since 1993, all garage door openers sold in the U.S. are required to include an automatic reversal system for safety (Source: Wikipedia – Garage Door Opener).
Step-by-Step: How to Install a Genie Garage Door Opener
If your system is newly installed, ensure the installation process is done correctly before addressing the red light.
1. Prepare the Tools
You’ll need:
- Drill with bits
- Screwdrivers
- Adjustable wrench
- Step ladder
- Tape measure
- Level
- Genie garage door opener kit (including sensors and brackets)
2. Assemble the Rail and Motor Head
- Connect the rail sections together.
- Slide the trolley (the moving carriage) into the rail.
- Attach the motor head at one end and secure it with provided bolts.
🧰 Pro Tip: Ensure the rail is straight — any bending can affect door movement and sensor alignment later.
3. Mount the Opener on the Ceiling
- Locate the centerline of the garage door.
- Install the header bracket above the door.
- Raise the assembled opener into place and secure it using angle iron supports.
The opener should hang level — this prevents unnecessary motor strain.
4. Connect the Door Arm and Trolley
Attach the door arm to the garage door bracket. Connect it to the trolley (carriage) that runs along the rail. Make sure it moves freely without resistance.
5. Install the Safety Sensors
- Mount both Safe-T-Beam® sensors about 5–6 inches above the floor on either side of the door track.
- Point them directly at each other — this is crucial for beam detection.
- Connect the sensor wires to the terminals on the motor head (white and white/black wires).
At this stage, both sensors should show a solid red light when properly aligned.
Troubleshooting the Red Light Issue
After installation, if your Genie opener red light is flashing or the door won’t close, follow these diagnostic steps.
1. Check Sensor Alignment
Misalignment is the #1 cause of a blinking red light.
Fix:
- Loosen the sensor brackets.
- Re-align until both LEDs are solid (no flickering).
- Tighten the brackets once stable.
2. Clear Any Obstructions
Dirt, leaves, or even sunlight glare can interrupt the infrared beam.
Fix:
- Clean sensor lenses with a soft cloth.
- Remove any objects blocking the path.
- Try closing the door again.
3. Inspect Wiring Connections
Loose or reversed wiring can trigger the red light warning.
Fix:
- Trace each wire from the motor unit to both sensors.
- Make sure the white wire goes to the “+” terminal and white/black to the “–” terminal.
- Reconnect if necessary.
4. Reset the System
If the sensors and wiring seem fine but the light persists:
Reset Steps:
- Unplug the Genie opener for 60 seconds.
- Plug it back in.
- Press and hold the “Learn” button for 10 seconds until the LED blinks.
- Test operation again.
This resets the internal logic board and clears sensor faults.
5. Check for Faulty Sensors
If one red light is off completely, a sensor may be defective.
Fix:
- Swap sensor positions to test.
- If the problem moves with the sensor, replacement is needed.
- You can buy a Genie Safe-T-Beam® sensor kit online or at most hardware stores.
Genie Red Light Meanings – Quick Reference Table
| Red Light Pattern | Issue | Recommended Action |
|---|---|---|
| Solid red | Normal operation | None |
| Blinking red (slow) | Misalignment | Re-aim sensors |
| Blinking red (fast) | Blocked beam | Clear obstruction |
| Off | Wiring or power fault | Inspect cables |
| Alternating red/green | Sensor failure | Replace sensor |
Expert Tips for Long-Term Performance
To avoid future red light issues and keep your opener in top condition:
- Clean sensors monthly. Dust buildup is a silent culprit.
- Avoid direct sunlight. Install visors if beams face the sun.
- Check alignment yearly. Vibrations can shift sensors slightly.
- Inspect wiring. Replace frayed wires to prevent false triggers.
Safety Reminder
A malfunctioning safety sensor isn’t just annoying — it’s dangerous. Without it, the door may fail to stop when something is in its path. Genie’s Safe-T-Beam® system exists to protect people, pets, and property.
Always make sure the sensors function properly before daily use.
FAQ: Install Genie Garage Door Opener And Red Light On
1. Why is my Genie opener red light blinking after installation?
This usually means the safety sensors are misaligned or something is blocking the beam. Realign them until both lights stay solid.
2. Can I operate the door if the red light stays on?
If it’s solid, yes — that’s normal. But if it’s blinking, the opener may refuse to close for safety reasons.
3. How do I reset the red light on Genie garage door opener?
Unplug the unit for one minute, then press and hold the Learn button for 10 seconds to reset the system.
4. Are Genie sensors universal?
Most Genie Safe-T-Beam® sensors are compatible across Genie models, but always confirm model compatibility before purchase.
5. What if both red lights are off?
That indicates a power or wiring problem. Check the terminal connections and replace damaged wires if necessary.
6. Can I replace just one faulty sensor?
It’s best to replace them in pairs to ensure identical sensitivity and performance.
Conclusion
Installing a Genie garage door opener is straightforward — but understanding the red light indicator is key to a safe, working system. Whether it’s a simple misalignment or a wiring issue, these troubleshooting steps will help you fix it quickly.
A solid red light means your sensors are working. A flashing one signals an easy-to-fix alignment or obstruction issue. Follow this guide, and your Genie opener will perform smoothly for years to come.
