Introduction
Installing a new garage door opener can feel overwhelming, especially when you’re dealing with heavy doors, complex wiring, and safety concerns. Many homeowners struggle with unclear instructions or worry about making costly mistakes during the installation process. If you’re wondering how to install Genie garage door opener safely and efficiently, this comprehensive guide will walk you through every step with confidence-building clarity.
Genie garage door openers are among the most popular choices in American homes, known for their reliability and user-friendly features. Whether you’ve purchased a chain-drive, belt-drive, or screw-drive model, proper installation ensures years of trouble-free operation while keeping your family safe.
What Tools and Materials Do You Need?
Before diving into the installation process, gathering the right tools prevents frustrating mid-project trips to the hardware store. Having everything prepared upfront saves time and reduces stress.
Essential Tools Checklist:
- Power drill with assorted bits
- Adjustable wrenches (8-inch and 10-inch)
- Socket set (metric and standard)
- Level (4-foot preferred)
- Measuring tape (25-foot minimum)
- Wire strippers and electrical tape
- Ladder (6-foot stepladder works well)
- Safety glasses and work gloves
- Pliers (needle-nose and standard)
- Screwdrivers (Phillips and flathead)
Required Materials:
- Genie garage door opener kit (includes motor unit, rail, trolley, and hardware)
- Mounting brackets and lag screws
- Electrical wire (if extending power source)
- Cable ties for wire management
- Lubricant for moving parts
Pro Tip: Check your Genie opener’s manual for model-specific requirements. Different models may need specialized brackets or additional hardware not included in the standard kit.
How to Prepare Your Garage for Installation?
Proper preparation sets the foundation for a successful installation. Rushing this phase often leads to alignment issues or safety hazards later.
Step 1: Clear the Work Area
Remove vehicles, storage items, and debris from around the garage door. You’ll need clear access to the ceiling, door tracks, and electrical connections. A cluttered workspace increases accident risk significantly.
Step 2: Inspect the Existing Door
Before installing any opener, verify that your garage door operates smoothly manually. Check for:
- Bent or damaged tracks
- Loose hinges or rollers
- Broken springs (never attempt spring repair yourself)
- Proper balance (door should stay in place when lifted halfway)
If your door doesn’t pass these checks, address mechanical issues first. An improperly functioning door can damage your new opener or create dangerous situations.
Step 3: Locate Power Source
Identify where you’ll connect the opener to electricity. Most installations use an existing outlet near the ceiling. If no outlet exists within reach, consult a licensed electrician—never attempt major electrical work without proper certification.
According to the National Fire Protection Association, improper electrical installations cause thousands of home fires annually. When in doubt, hire a professional for electrical connections.
How to Assemble the Genie Garage Door Opener Rail?
The rail assembly connects the motor to your garage door. Proper alignment here ensures smooth operation and reduces wear on components.
Assembly Steps:
- Lay out all rail sections on a clean, flat surface
- Connect rail segments using provided bolts—don’t overtighten yet
- Attach the trolley to the rail according to your model’s specifications
- Install the drive mechanism (chain, belt, or screw) following the diagram in your manual
- Tension the drive system per manufacturer guidelines
- Chain drives: Should have slight slack (about 1/2 inch)
- Belt drives: Maintain proper tension without over-tightening
- Screw drives: Ensure smooth rotation without binding
- Secure all connections once alignment looks correct
Important: Double-check that the trolley moves freely along the entire rail length. Any binding indicates misalignment that must be corrected before mounting.

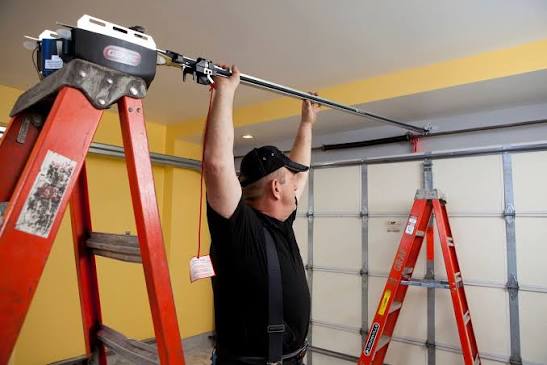

How to Mount the Motor Unit Safely?
The motor unit is the heart of your garage door opener system. Secure mounting prevents vibration, noise, and potential failure.
Ceiling Mounting Procedure:
- Mark mounting locations using the template provided with your Genie opener
- Locate ceiling joists using a stud finder—mounting directly to joists provides maximum stability
- Pre-drill holes slightly smaller than your lag screws
- Attach mounting brackets securely to joists using appropriate hardware
- Hang the motor unit on the brackets
- Verify level positioning using your level tool
- Tighten all mounting bolts firmly but avoid stripping threads
Weight Considerations:
Most Genie openers weigh between 15-25 pounds. Ensure your ceiling structure can support this weight plus operational forces. Older homes may require additional reinforcement.
Safety Note: Always have a helper assist when lifting the motor unit into position. Attempting this alone risks injury and equipment damage.
How to Connect the Opener to Your Garage Door?
This critical step links the opener mechanism to your actual garage door, enabling automated operation.
Connection Process:
- Close the garage door completely
- Position the trolley at the appropriate point on the rail
- Attach the door bracket to the top section of your garage door
- Use provided hardware
- Ensure bracket is centered and level
- Connect the arm from the trolley to the door bracket
- Adjust arm length so the door opens and closes fully without strain
- Test manual operation by pulling the release cord
- Door should move smoothly
- No excessive force required
Alignment Tips:
- The arm should form a slight angle when the door is closed
- Avoid forcing connections—if something doesn’t fit, recheck measurements
- All pivot points should move freely without binding
How to Wire the Safety Sensors and Controls?
Modern garage door openers include essential safety features that prevent accidents and meet federal regulations.
Photo-Eye Sensor Installation:
- Mount sensors on both sides of the door, 4-6 inches above floor level
- Align sensors perfectly—indicator lights should show proper alignment
- Run wires neatly along walls or ceiling using cable ties
- Connect to motor unit following color-coded wiring diagram
- Test sensor function by placing object in beam path—door should reverse immediately
Wall Control Panel:
- Mount at accessible height (typically 4-5 feet)
- Keep away from moving door parts
- Connect according to wiring diagram
- Test all buttons for proper function
Remote Programming:
Follow your specific Genie model’s instructions for programming remotes and keypad access codes. Most modern units use rolling code technology for enhanced security.
How to Test and Adjust Your New Opener?
Thorough testing ensures safe, reliable operation before regular use.
Testing Checklist:
✓ Open/close cycles: Run door through 5-10 complete cycles
✓ Force settings: Adjust according to manual specifications
✓ Travel limits: Set upper and lower stopping points precisely
✓ Safety reversal: Test with 2×4 block on floor—door must reverse
✓ Sensor alignment: Verify beam interruption causes immediate reversal
✓ Noise level: Listen for unusual sounds indicating problems
Common Adjustments:
| Setting | Purpose | Adjustment Method |
|---|---|---|
| Up Limit | Stops door at full open | Rotate adjustment screw clockwise/counterclockwise |
| Down Limit | Stops door at full close | Same as up limit adjustment |
| Force Sensitivity | Prevents crushing/damage | Adjust dial per manual instructions |
| Speed | Opening/closing rate | Model-dependent adjustment |
Warning: Never bypass safety features or disable auto-reverse functions. These protect children, pets, and property from serious injury.
Frequently Asked Questions
Q: How long does it take to install a Genie garage door opener?
A: Most DIY installations take 3-5 hours for someone with basic mechanical skills. First-time installers should budget a full day to work carefully without rushing. Professional installers typically complete the job in 2-3 hours.
Q: Can I install a Genie opener on any garage door?
A: Genie openers work with most standard sectional garage doors weighing up to 500 pounds. However, very heavy wooden doors, custom designs, or doors with unusual track configurations may require professional assessment. Always check your door’s specifications against the opener’s capacity rating.
Q: Do I need an electrician to install my Genie garage door opener?
A: If you have an existing outlet near the installation location, you can handle the plug-in connection yourself. However, if new wiring or circuit installation is needed, hire a licensed electrician. Local building codes vary, and some areas require permits for garage door opener installations.
Q: What warranty comes with Genie garage door openers?
A: Genie offers varying warranty periods depending on the model. Most residential units include a lifetime warranty on the motor, 5-year warranty on parts, and 1-year labor coverage. Register your product online to activate full warranty benefits.
Q: Why does my newly installed Genie opener make grinding noises?
A: Grinding noises typically indicate improper rail alignment, insufficient lubrication, or incorrect chain/belt tension. Check that all rail connections are tight and properly aligned. Apply garage door lubricant to moving parts. If noise persists, contact Genie customer support—don’t continue operating a noisy opener as it may cause premature wear.
Q: How often should I maintain my Genie garage door opener?
A: Perform basic maintenance quarterly: lubricate moving parts, check sensor alignment, test safety reversal, and inspect hardware tightness. Annual professional inspection is recommended to catch potential issues early. Replace worn rollers, cables, or springs promptly—these components affect opener performance and safety.
Conclusion
Learning how to install Genie garage door opener successfully empowers you to save money while gaining valuable home improvement skills. By following this step-by-step guide, preparing thoroughly, and prioritizing safety throughout the process, you’ll enjoy reliable automated garage door operation for years to come.
Remember that patience and attention to detail matter more than speed. Take breaks when needed, double-check your work at each stage, and don’t hesitate to consult professional help for electrical work or complex mechanical issues.
