A garage door opener is one of those household devices we rely on daily, often without giving it much thought—until it suddenly stops working. Among the many issues that can affect performance, a failing transformer is one of the most frustrating. If you want to learn how to fix transformer in Genie garage door opener, you’ve come to the right place.
The transformer is a critical electrical component that powers the entire system. When it malfunctions, your garage door opener may not respond at all, or it may exhibit strange behavior such as flickering lights, intermittent power, or burning smells. Luckily, with some basic electrical knowledge and the right tools, you can repair or replace the transformer yourself.
This comprehensive guide explains how the transformer works, symptoms of failure, step-by-step instructions for fixing or replacing it, safety precautions, and tips to keep your Genie opener running smoothly.
What Does the Transformer Do in a Genie Garage Door Opener?
The transformer in your Genie garage door opener converts the incoming 120V AC household current into lower voltage AC or DC current that powers the opener’s logic board, motor, and sensors. Without it, the system simply cannot operate.
Think of the transformer as the heart of the electrical system. If it fails, no amount of remote programming or sensor adjustment will bring your opener back to life. That’s why knowing how to fix transformer in Genie garage door opener is so important for homeowners.
Signs of a Failing Transformer
Before attempting any repair, you’ll want to confirm the transformer is the problem. Here are the most common signs:
- No power at all – The opener does not respond, and the lights don’t turn on.
- Burning smell or scorch marks – Indicates overheating or electrical short.
- Buzzing or humming sound – A transformer under stress often makes noise.
- Blown fuses on the control board – May point to a transformer overload.
- Intermittent power loss – Opener works sometimes and then shuts down.
If you notice these symptoms, your repair plan should focus on the transformer.
Tools and Materials You’ll Need
To successfully complete a Genie garage door opener transformer repair, gather the following:
- Screwdrivers (Phillips and flathead)
- Nut driver or socket set
- Multimeter (for voltage testing)
- Soldering iron (for some replacements)
- Wire cutters/strippers
- Replacement transformer (Genie-compatible model)
- Electrical tape or heat-shrink tubing
- Safety gloves and glasses
Safety First: Precautions Before Repair
Working with transformers involves dealing with live electrical parts. Follow these safety guidelines:
- Always unplug the opener before starting.
- Allow capacitors to discharge fully before touching components.
- Wear insulated gloves.
- Never work on a transformer if you’re unsure of your electrical skills—call a professional instead.
Step-by-Step: How To Fix Transformer In Genie Garage Door Opener
Step 1: Disconnect Power
Unplug the opener from its power source. Verify no voltage is present using a multimeter.
Step 2: Remove the Opener Housing
Use a screwdriver to remove the screws securing the motor housing cover. Set it aside to access the internal components.
Step 3: Locate the Transformer

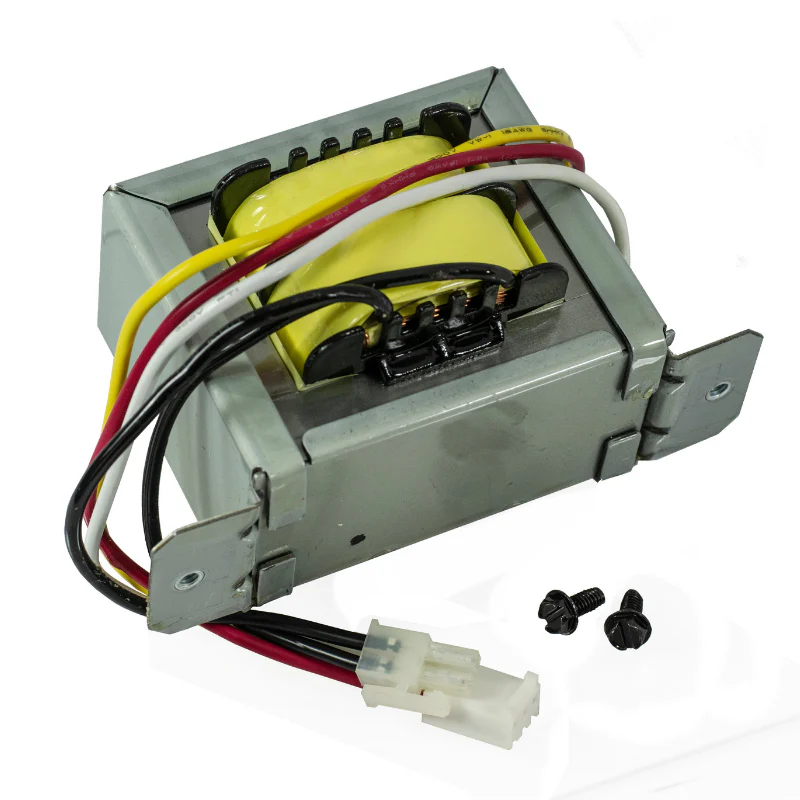

The transformer is usually mounted on the control board or attached inside the motor unit. It’s a rectangular metal or plastic block with wires leading to the board.
Step 4: Inspect Visually
Look for burn marks, melted insulation, or swollen parts. These are clear signs the transformer has failed.
Step 5: Test with a Multimeter
Set your multimeter to AC voltage and measure input power. Then switch to measure the output voltage. Compare readings to the specifications on your opener’s manual. If there’s no output, the transformer is bad.
Step 6: Remove the Faulty Transformer
Depending on your model, you may need to desolder the transformer from the circuit board or disconnect it from wire terminals. Take pictures before removal to remember connections.
Step 7: Install the Replacement Transformer
Mount the new transformer in place of the old one. Reconnect wires or solder leads securely. Use electrical tape or heat-shrink tubing to insulate connections.
Step 8: Reassemble the Opener
Reattach the motor housing cover and secure all screws.
Step 9: Restore Power and Test
Plug the opener back in and test it using the wall switch and remote. The system should power on normally without humming, smoking, or flickering.
Cost of Repair
- Replacement transformer: $20–$60 depending on model
- DIY repair: $20–$80 (including tools if you don’t already own them)
- Professional repair: $100–$200 for parts and labor
- Full opener replacement: $300–$500+ installed
A DIY transformer replacement for Genie garage door opener is cost-effective if you’re comfortable working with electrical components.
When to Repair vs. Replace the Entire Opener
Sometimes, fixing the transformer may not be the best choice. Consider replacing the whole opener if:
- Your unit is more than 15 years old
- Multiple components (board, motor, sensors) are failing
- Replacement parts are difficult to source
Otherwise, replacing the transformer is usually enough to restore functionality.
Maintenance Tips After Fixing the Transformer
Once you’ve successfully learned how to fix transformer in Genie garage door opener, follow these tips to prevent future problems:
- Use a surge protector – Protects against voltage spikes.
- Check wiring annually – Look for fraying or loose connections.
- Avoid overloading circuits – Don’t share the outlet with heavy appliances.
- Keep housing clean – Dust can contribute to overheating.
FAQs
Q: Can I use a universal transformer?
A: Only if it matches the voltage and amperage specs of your Genie opener. Otherwise, always use a Genie-approved part.
Q: My opener still doesn’t work after transformer replacement. Why?
A: The control board or motor may also be damaged. Test these components individually.
Q: Do transformers wear out naturally?
A: Yes, over time heat cycles and voltage fluctuations can degrade them.
Q: Is soldering always required?
A: Not always. Some transformers use plug-in connections, while others must be soldered.
Final Thoughts
Learning how to fix transformer in Genie garage door opener gives you the ability to handle one of the most frustrating opener issues on your own. With the right tools, careful testing, and a compatible replacement part, you can restore your opener’s functionality for years to come—without paying for a costly replacement.
Take your time, follow safety guidelines, and remember: if the repair feels beyond your skill level, don’t hesitate to call in a professional. But for most homeowners, this repair is a manageable and rewarding DIY project.
