Introduction

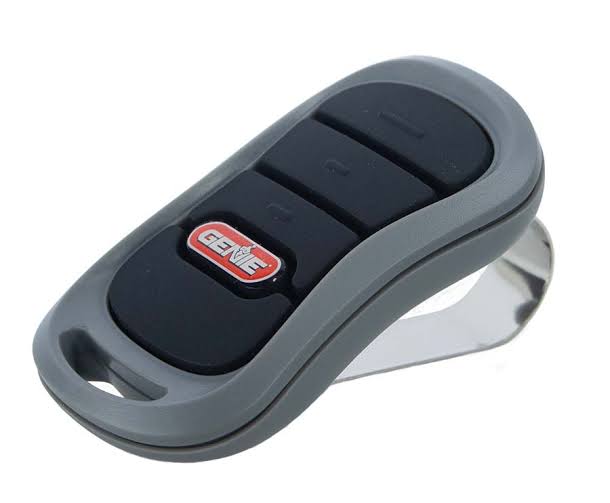

There are few things more frustrating than standing in your driveway, pressing your clicker repeatedly, and realizing your GICTD-3 Genie garage door opener remote battery has finally died. We understand that panic; being locked out of your garage disrupts your entire day and compromises your home’s convenience. Fortunately, replacing this specific battery is a simple, five-minute task that requires no professional help and costs less than a cup of coffee. In this comprehensive guide, we will walk you through identifying the correct cell, replacing it safely, and troubleshooting common issues so you can get back inside with confidence.
What Battery Does the GICTD-3 Genie Remote Use?
Before you pry open your remote, you must have the correct replacement on hand. Using the wrong voltage or size can damage the internal circuit board or simply fail to power the device.
The GICTD-3 Genie garage door opener remote battery is a standard 3-Volt Lithium Coin Cell, specifically model CR2032.
Key Specifications for the CR2032
- Voltage: 3V (Nominal)
- Chemistry: Lithium Manganese Dioxide
- Dimensions: 20mm diameter x 3.2mm height
- Shelf Life: Typically 5–10 years when stored properly
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Expert Note: While some older Genie remotes used alkaline batteries, the GICTD-3 series is engineered exclusively for lithium chemistry. Alkaline cells cannot provide the consistent voltage spike required for modern rolling-code transmission and may leak, corroding your remote’s contacts.
According to technical documentation referenced in general electronics standards on Wikipedia, the CR2032 is the most widely used coin cell globally due to its high energy density and stable discharge curve, making it ideal for low-drain, intermittent-use devices like garage door openers.
How Do I Replace the GICTD-3 Battery Step-by-Step?
Replacing the GICTD-3 Genie garage door opener remote battery does not require special tools, but precision matters. Follow these exact steps to avoid damaging the delicate internal components.
Tools You Will Need
- New CR2032 Lithium Battery (verify expiration date)
- Small Phillips-head screwdriver (#0 or #1) OR a plastic prying tool
- Clean microfiber cloth
- Isopropyl alcohol (optional, for cleaning contacts)
Step-by-Step Replacement Instructions
- Locate the Battery Compartment: Turn the remote over. On the GICTD-3, the battery compartment is typically secured by a single small Phillips screw on the back casing. Some newer revisions may use a slide-tab mechanism instead.
- Open the Casing: If screwed, remove the screw and set it aside in a magnetic tray or tape it to your work surface—these screws are easily lost. Gently separate the two halves of the remote case using a plastic spudger or fingernail. Do not use metal flathead screwdrivers to pry, as this can crack the plastic housing.
- Remove the Old Battery: Note the orientation of the existing battery before removing it. The positive (+) side usually faces up toward you. Gently lift it out. If it feels stuck, use a non-conductive tool to nudge it from the side slot.
- Inspect and Clean Contacts: Before inserting the new cell, examine the metal contact points. If you see green/white corrosion or oxidation, dab a cotton swab lightly moistened with isopropyl alcohol and gently clean the contacts. Allow to dry completely (approximately 30 seconds).
- Insert the New CR2032: Place the fresh battery with the positive (+) side facing UP (toward the button side of the remote). Press down firmly until it seats flush against the negative contact spring.
- Reassemble the Remote: Align the two halves of the casing carefully, ensuring no wires or antenna elements are pinched. Snap the case together evenly, then reinsert and tighten the screw. Do not overtighten—snug is sufficient.
- Test Immediately: Stand within 5 feet of your garage door and press the button. The LED should illuminate brightly, and the door should respond within 1–2 seconds.
Why Is My New Battery Not Working After Replacement?
You’ve installed a fresh GICTD-3 Genie garage door opener remote battery, yet nothing happens. Don’t panic—this is one of the most common support queries, and the cause is rarely a defective remote.
Troubleshooting Checklist
| Potential Issue | Symptom | Solution |
|---|---|---|
| Battery Installed Backwards | No LED light at all | Reopen and flip battery; + side must face up |
| Protective Sticker Left On | Dim or no LED | Remove clear plastic film from new battery |
| Corroded Contacts | Intermittent function | Clean contacts with isopropyl alcohol |
| Expired/New-Old-Stock Battery | Weak LED, no response | Check manufacture date; buy fresh stock |
| Remote Needs Reprogramming | LED works, door doesn’t respond | Re-sync remote to opener (see FAQ below) |
| Damaged Circuit Board | Physical damage visible | Remote likely needs full replacement |
Critical Warning: Never test a CR2032 by touching both sides simultaneously with your fingers. Your body’s resistance can partially discharge the cell before installation. Always handle coin cells by their edges.
How Long Should a GICTD-3 Battery Last?
Under normal residential use (2–4 activations per day), a quality GICTD-3 Genie garage door opener remote battery should last between 18 months and 3 years.
Several factors influence actual lifespan:
- Frequency of Use: High-traffic households may see 12–18 month cycles.
- Temperature Extremes: Remotes left in vehicles during summer heat or winter cold degrade faster. Store spare remotes indoors.
- Battery Brand: Premium brands (Energizer, Duracell, Panasonic) consistently outperform generic alternatives in independent testing.
- Signal Interference: If your remote must transmit multiple times per activation due to RF interference, drain accelerates.
Pro Tip: Set a calendar reminder every 18 months to proactively replace your remote battery. Preventive replacement avoids the inconvenience of sudden failure and ensures reliable security.
Frequently Asked Questions (FAQ)
Can I use a CR2025 instead of a CR2032 in my GICTD-3 remote?
Technically, a CR2025 shares the same 20mm diameter and 3V rating, but it is only 2.5mm thick versus the CR2032’s 3.2mm. This 0.7mm difference often prevents proper contact with the negative spring terminal, causing intermittent operation or complete failure. Always use the specified CR2032 for reliable performance.
Do I need to reprogram my Genie remote after changing the battery?
In most cases, no. The GICTD-3 uses non-volatile memory that retains programming regardless of power loss. However, if the old battery was completely dead for an extended period (weeks/months), the rolling code sync may have drifted. If your LED lights but the door doesn’t respond, locate the “Learn” button on your garage door motor unit and follow the manufacturer’s re-sync procedure.
Where is the best place to buy authentic CR2032 batteries?
Purchase from reputable retailers: Amazon (sold/shipped by Amazon), Home Depot, Lowe’s, Best Buy, or directly from Genie dealers. Avoid dollar stores or unknown third-party marketplace sellers, as counterfeit lithium cells are prevalent and pose safety risks including leakage and reduced capacity.
How do I properly dispose of old CR2032 batteries?
Lithium coin cells should never be thrown in household trash. They contain heavy metals and pose fire hazards in landfills. Drop them off at designated recycling kiosks found at Home Depot, Lowe’s, Staples, or local municipal hazardous waste facilities. Many libraries and community centers also host periodic battery collection events.
My remote LED blinks rapidly after battery change—what does this mean?
A rapid blinking LED on the GICTD-3 typically indicates either a low-battery warning (even with a new cell, suggesting a contact issue) or that the remote has entered programming mode accidentally. Try reseating the battery first. If blinking persists, consult your Genie owner’s manual for the specific blink-code diagnostic chart corresponding to your opener model.
Can extreme cold affect my new battery’s performance?
Yes. Lithium CR2032 cells perform reliably down to -20°C (-4°F), but output voltage drops temporarily in extreme cold. If your remote works fine indoors but fails outside in winter, warm the remote in your pocket for 2–3 minutes before use. For consistently harsh climates, consider keeping a spare remote inside your vehicle’s cabin rather than the glove box or exterior visor clip.
Conclusion
Maintaining a functional GICTD-3 Genie garage door opener remote battery is one of the simplest yet most impactful home maintenance tasks you can perform. With the correct CR2032 cell, careful installation, and basic troubleshooting knowledge, you eliminate the stress of unexpected lockouts and ensure seamless daily access to your garage. Remember: invest in quality batteries, replace them proactively every 18–24 months, and always recycle responsibly.
