Struggling to find clear instructions for your Genie side mount garage door opener manual? You’re not alone—many homeowners face confusion when installing or troubleshooting their wall-mount openers. This comprehensive guide walks you through everything from pre-installation measurements to advanced troubleshooting, ensuring your Genie opener operates smoothly and safely.

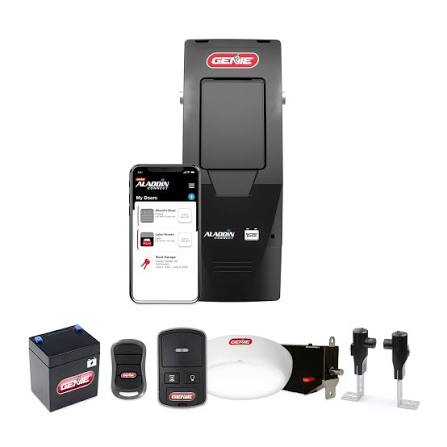

What Is a Genie Side Mount Garage Door Opener?
A Genie side mount garage door opener, also known as a wall-mount or jackshaft opener, attaches directly to the torsion spring tube on the side of your garage door rather than hanging from the ceiling
store.geniecompany.com. This innovative design eliminates the need for traditional overhead rails, freeing up valuable ceiling space while delivering powerful, quiet operation.
The most popular models include the 6172H-B and 6072H-B, which feature built-in Aladdin Connect smart technology, battery backup systems, and compatibility with major smart home platforms like Amazon Alexa and Google Assistant
store.geniecompany.com. These openers support residential sectional doors up to 850 lbs., 14 feet tall, and 18 feet wide (maximum 180 square feet)
action-ind.com.
Key Specifications at a Glance
| Feature | Specification |
|---|---|
| Motor Type | 24V DC Brushed Motor |
| Maximum Door Weight | 850 lbs. |
| Maximum Door Height | 14 feet |
| Maximum Door Area | 180 sq. ft. |
| Dimensions | 6.8″ W × 12″ H × 9″ D |
| Power Requirement | Standard 115 VAC outlet within 6 feet |
| Maximum Amperage | 4 Amps |
| Remote Capacity | Up to 64 devices |
| Battery Backup | Included (models ending in “-B”) |
Pre-Installation Requirements and Compatibility
Before diving into installation, it’s crucial to verify that your garage door meets the compatibility requirements outlined in the Genie side mount garage door opener manual.
Door Compatibility Checklist
✓ Torsion Spring System Only: The opener works exclusively with front-mounted torsion springs featuring a 1-inch diameter solid or hollow tubular steel shaft
action-ind.com.
✗ Not Compatible With:
- Reverse-wound springs (where cables come off rollers on the opposite side)
- Extension spring systems
- One-piece garage doors
- Low headroom setups
Critical Clearance Measurements
Your torsion shaft must extend at least 2¼ inches from the bearing plate to accommodate the coupler
store.geniecompany.com. Additionally, ensure you have:
- A standard grounded electrical outlet within 6 feet of the installation location
- Adequate wall space beside the door for mounting the unit
- No obstructions blocking the Safe-T-Beam® sensors
For detailed measurement guidelines, refer to the official Genie Critical Measurements Guide
www.geniecompany.com.
Step-by-Step Installation Process
Follow these detailed steps from the Genie side mount garage door opener manual to ensure proper installation:
Step 1: Prepare the Door
Close the garage door completely and disconnect any existing opener system if replacing an old unit.
Step 2: Attach the Mounting Bracket
Remove the bolt and lock washer from the powerhead chassis. Loosely install the mounting bracket on your desired side (right-hand mount is standard)
action-ind.com.
Step 3: Install the Coupler
Slide the coupler (1¼-inch end) onto the opener output shaft until it fully seats. Tighten the three inner set screws finger-tight against the shaft
action-ind.com.
Step 4: Mount to Door Shaft
- If the shaft is NOT keyed: Slide the opener assembly onto the door shaft and tighten setscrews finger-tight.
- If the shaft IS keyed: Insert the provided key into either keyway. Pull the emergency release cable to allow free rotation, align the keyways, then tighten action-ind.com.
Step 5: Secure to Wall
Level and square the opener. Mark the mounting bracket hole positions, pre-drill 3/16-inch pilot holes, and install lag screws, tightening them fully
action-ind.com.
Step 6: Install Safety Components
Attach the Safe-T-Beam® sensors 5–6 inches above the floor on both sides of the door opening. Install cable keepers and the manual door lock as specified
action-ind.com.
Step 7: Connect Power
Plug the power cord into a standard 115 VAC grounded outlet. Do not use extension cords—approved extended power input kits are available if needed
action-ind.com. Coil excess cord and secure it to the top of the powerhead.
⚠️ Important: Do not operate the opener until travel limits have been properly set to avoid damaging the unit
action-ind.com
.
Programming Your Genie Side Mount Opener
Programming must follow a specific sequence to ensure optimal performance:
- Adjust Opener Speed for your drum size
- Set Down Travel Limit
- Set Up Travel Limit
- Adjust Force Control
- Perform Contact Reverse Test
- Program Remote Controls
The included remotes, wireless wall console, and lighting fixtures come factory-programmed. Use the PRG/SET button under the flip cover on the motor box to add additional devices
store.geniecompany.com.
Smart Home Integration
The built-in Aladdin Connect technology allows you to:
- Control your garage door remotely via smartphone
- Monitor door status in real-time
- Integrate with Alexa, Google Assistant, SmartThings, and Ring store.geniecompany.com
For setup assistance, watch the official Aladdin Connect Programming Video
support.geniecompany.com.
Troubleshooting Common Issues
Even with careful installation, problems may arise. Here’s how to address frequent issues based on the Genie side mount garage door opener manual:
Problem: Opener Runs, But Door Doesn’t Move
Solution: Check that the coupler set screws haven’t loosened. Tighten them securely against the output shaft
action-ind.com.
Problem: Wall Control Works, But Remotes Don’t
Solution:
- Replace remote batteries
- Reprogram remotes to the powerhead using the PRG/SET button
- Ensure you’re within range (typically 100–150 feet) action-ind.com
Problem: Door Starts Closing, Then Reverses
Solution:
- Verify travel limits are correctly set
- Check if the Safe-T-Beam® red LED is flashing
- Inspect sensors for obstructions or misalignment
- Clean sensor lenses and check wiring connections action-ind.com
Problem: Light Doesn’t Turn On
Solution: The light activates during operation and stays on for 5 minutes. Use the independent light control button on the wall console for manual operation. Note that this model does not feature motion detection
store.geniecompany.com.
Monthly Maintenance Checklist
| Task | Frequency | Details |
|---|---|---|
| Contact Reverse Test | Monthly | Follow test procedure on page 20 of manual |
| Lubricate Hardware | Monthly | Apply lightweight grease to rollers and hinges |
| Safe-T-Beam® Check | Monthly | Inspect wiring, clean lenses, verify alignment |
| Door Balance Test | Monthly | Ensure door is properly balanced |
| Battery Replacement | As Needed | Replace remote batteries when weak |
Frequently Asked Questions
Q1: Can I mount the Genie side mount opener on either side of the door?
A: Yes, the opener can be mounted on the left or right side, provided adequate clearance exists. Always consult the critical measurements guide before deciding
store.geniecompany.com.
Q2: How many remotes can I program to my Genie opener?
A: The unit supports up to 64 remote devices, including car remotes, handheld remotes, and keypads. The kit includes one 3-button remote
store.geniecompany.com.
Q3: Does this opener work during power outages?
A: Models ending in “-B” (like 6172H-B and 6072H-B) include built-in battery backup, keeping your garage accessible during outages. This feature is compliant with California SB-969 law
store.geniecompany.com.
Q4: Can I use both wired and wireless wall consoles?
A: Yes, you can operate both simultaneously. However, there’s a limit of one wired lit wall console (model 39165R). The wireless console is included with the unit
store.geniecompany.com.
Q5: What’s the difference between the 6172H and 6172H-B models?
A: The primary difference is that the 6172H-B includes battery backup, while the standard 6172H does not
store.geniecompany.com.
Q6: Will this opener work with my 16-foot-wide garage door?
A: It depends on total square footage. The opener supports doors up to 18 feet wide but cannot exceed 180 square feet total area. A 16′ × 14′ door equals 224 sq. ft., which exceeds the capacity
store.geniecompany.com.
Conclusion
Mastering your Genie side mount garage door opener manual doesn’t have to be overwhelming. By following the step-by-step installation process, understanding compatibility requirements, and utilizing the troubleshooting guides, you’ll enjoy years of reliable, quiet operation. The compact design saves ceiling space, while smart features like Aladdin Connect bring modern convenience to your daily routine.
Remember to perform monthly maintenance checks and keep your manual handy for future reference. If you encounter persistent issues, contact Genie’s customer support at 1-800-35GENIE or visit their official support portal
store.geniecompany.com.
