Have you ever stood in your driveway, remote in hand, wondering why your garage door refuses to budge? Or perhaps you’ve just installed a new Genie Intellicode chain drive garage door opener manual is nowhere to be found, leaving you confused about the next steps. You are not alone. Thousands of homeowners face similar challenges every day, but the good news is that mastering your Genie opener is easier than you think.
This guide will walk you through everything you need to know about your Genie Intellicode system. From initial setup to advanced troubleshooting, we will cover it all in simple, easy-to-follow steps. Let’s get your garage door working smoothly again.
What Is the Genie Intellicode System and How Does It Work?
Before diving into the manual specifics, it is essential to understand what makes the Genie Intellicode technology unique. Unlike older fixed-code systems, Intellicode uses rolling code technology. This means the security code changes every time you press the remote button, making it nearly impossible for thieves to intercept and replicate your signal.
The chain drive mechanism, on the other hand, is known for its durability and strength. It uses a metal chain to lift and lower the garage door, which is ideal for heavier doors. While it may be slightly noisier than belt-drive models, it offers exceptional reliability and longevity.
According to industry standards, rolling code technology has reduced garage door-related burglaries by over 60% since its widespread adoption. This highlights the importance of understanding your system’s security features. For more detailed technical specifications, you can refer to Wikipedia’s entry on garage door openers.

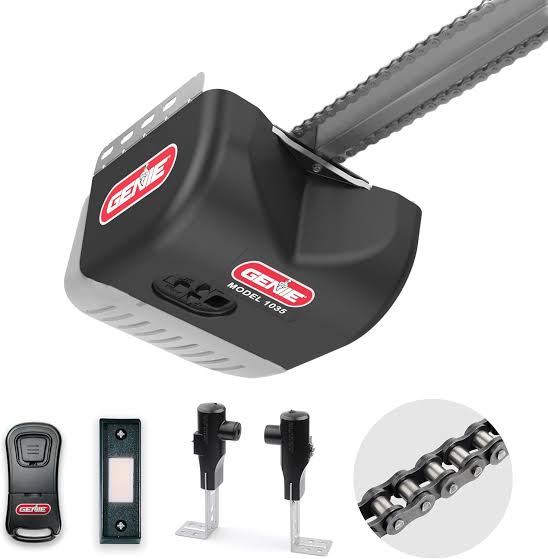

Key Components of Your Genie Intellicode Chain Drive Opener
- Power Head: The main unit containing the motor and logic board.
- Chain Rail: The track along which the trolley moves.
- Trolley: The component that attaches to the garage door arm.
- Remote Controls: Handheld devices with Intellicode chips.
- Wall Console: The indoor button panel for manual operation.
Understanding these parts will help you follow the manual more effectively and perform basic maintenance with confidence.
How Do I Program My Genie Intellicode Remote Control?
One of the most common questions users have is how to program their remotes. Whether you are adding a new remote or re-syncing an existing one, the process is straightforward if you follow the correct steps.
Step-by-Step Programming Guide
- Locate the Learn Button: Find the “Learn” or “Program” button on the back or side of the power head. It is usually colored purple, orange, or red.
- Press the Learn Button: Press and release the button. The LED indicator light will turn on or blink, signaling that the opener is in programming mode. You have about 30 seconds to complete the next step.
- Press the Remote Button: Within 30 seconds, press and hold the button on your remote control that you wish to program. Hold it until the LED light on the power head blinks or turns off.
- Test the Remote: Press the programmed button again to ensure the garage door operates correctly.
Pro Tip: If you have multiple remotes, repeat steps 3 and 4 for each one. Make sure to keep your remotes away from other electronic devices during programming to avoid interference.
Why Is My Genie Chain Drive Opener So Noisy?
Noise is a common concern with chain drive openers. While some noise is normal, excessive grinding or squeaking may indicate an underlying issue. Addressing these problems early can prevent costly repairs down the line.
Common Causes of Noise and Solutions
| Cause | Solution |
|---|---|
| Loose Chain | Tighten the chain using the adjustment bolt on the trolley. Ensure there is about 1/4 inch of slack in the middle of the rail. |
| Lack of Lubrication | Apply a silicone-based lubricant to the chain, rollers, and hinges. Avoid using WD-40 as it can attract dirt. |
| Worn Rollers | Replace old nylon or steel rollers with new ones. Nylon rollers are quieter and smoother. |
| Loose Hardware | Check and tighten all bolts and brackets on the rail and motor unit. |
Regular maintenance, such as lubricating the chain every six months, can significantly reduce noise and extend the life of your opener. If the noise persists after these adjustments, it may be time to consult a professional technician.
How Do I Adjust the Travel Limits and Force Settings?
Incorrect travel limits can cause your garage door to stop prematurely or hit the floor too hard. Similarly, improper force settings can prevent the door from opening or closing safely. Adjusting these settings is a critical part of using your Genie Intellicode chain drive garage door opener manual effectively.
Adjusting Travel Limits
- Identify the Adjustment Screws: Locate the up and down limit screws on the side of the power head. They are usually labeled “Up Limit” and “Down Limit.”
- Adjust the Down Limit: Turn the down limit screw in small increments. Clockwise usually decreases the travel distance, while counter-clockwise increases it. Test the door after each adjustment.
- Adjust the Up Limit: Similarly, adjust the up limit screw to ensure the door opens fully without straining the motor.
Setting the Force Controls
- Find the Force Knobs: These are typically located near the limit screws and are labeled “Open Force” and “Close Force.”
- Set the Close Force: Start with the lowest setting and gradually increase it until the door closes completely without reversing. The door should reverse immediately if it encounters an obstacle.
- Set the Open Force: Adjust the open force so the door lifts smoothly without hesitation.
Safety Note: Always test the auto-reverse feature after adjusting force settings. Place a 2×4 piece of wood on the floor under the door. When closing, the door should reverse upon contact. If it does not, readjust the close force or call a professional.
What Should I Do If My Genie Opener Stops Working?
Troubleshooting a non-responsive garage door opener can be frustrating. However, most issues can be resolved with a few simple checks. Before calling a technician, try these diagnostic steps.
Basic Troubleshooting Checklist
- Check the Power Source: Ensure the opener is plugged in and the circuit breaker has not tripped. Look for a green LED light on the power head.
- Inspect the Remote Batteries: Weak batteries are a common cause of failure. Replace them with fresh alkaline batteries.
- Examine the Safety Sensors: The sensors near the floor must be aligned and free of obstructions. A blinking LED on the sensor indicates a misalignment.
- Reset the System: Unplug the opener for 30 seconds and plug it back in. This can reset the logic board and resolve minor glitches.
If these steps do not resolve the issue, consult the specific model section of your Genie Intellicode chain drive garage door opener manual for error code interpretations. Some models have diagnostic LEDs that blink in specific patterns to indicate particular faults.
Frequently Asked Questions (FAQ)
Q1: Can I use any remote with my Genie Intellicode opener?
No, you must use remotes that are compatible with the Intellicode rolling code technology. Older fixed-code remotes will not work. Look for remotes labeled “Intellicode” or check the compatibility list in your manual.
Q2: How often should I lubricate my chain drive opener?
It is recommended to lubricate the chain, rollers, and hinges every six months. Use a silicone-based or lithium-based lubricant for best results. Avoid oil-based products as they can attract dust and debris.
Q3: What is the warranty period for Genie garage door openers?
Most Genie openers come with a limited lifetime warranty on the motor and a one-year warranty on parts. However, warranty terms can vary by model, so check your specific product documentation for details.
Q4: Can I install a Genie opener myself?
Yes, many homeowners successfully install Genie openers themselves. The kits come with detailed instructions and all necessary hardware. However, if you are uncomfortable working with electrical components or heavy doors, hiring a professional is advisable.
Q5: Why does my garage door reverse before hitting the floor?
This is usually caused by incorrect down limit settings or obstructed safety sensors. Check the alignment of the sensors and adjust the down limit screw as described in the travel limits section.
Q6: Is a chain drive opener better than a belt drive?
Chain drives are more durable and better suited for heavy doors, but they are noisier. Belt drives are quieter and smoother but may require more maintenance over time. The choice depends on your specific needs and budget.
Conclusion
Mastering your Genie Intellicode chain drive garage door opener manual does not have to be a daunting task. By understanding the core components, programming your remotes correctly, and performing regular maintenance, you can ensure your garage door operates smoothly for years to come. Remember, safety should always be your top priority when adjusting limits and force settings.
We hope this guide has provided you with the clarity and confidence you need to manage your Genie opener effectively. If you found this article helpful, please share it with your friends and family on social media. Your shared knowledge might just save someone from a frustrating garage door malfunction!
