Are you struggling to get your Genie garage door opener with dip switches working properly? You’re not alone—millions of homeowners face confusion when setting up these older but reliable systems. Whether you’ve just installed a new unit or are trying to sync a replacement remote, understanding dip switch configuration is essential for secure and smooth operation.
What Are Dip Switches and Why Do They Matter?
Dip switches (Dual In-line Package switches) are small toggle switches found inside your Genie garage door opener and remote control. These tiny components create a unique code pattern that allows your remote to communicate with the opener securely.
Unlike modern rolling-code systems, dip switch openers use a fixed code determined by the position of each switch. This means proper alignment between your remote and opener is critical for functionality.
According to Wikipedia’s explanation of garage door openers, dip switch systems were the industry standard from the 1980s through early 2000s, offering a simple yet effective security solution for residential garages.
How Dip Switches Work
Each dip switch can be set to either “ON” or “OFF,” creating a binary code pattern. Most Genie models feature 8-12 dip switches, allowing for thousands of possible combinations. When you press your remote button, it sends this specific code to the opener. If the patterns match, the door activates.
Key benefits of dip switch systems:
- Simple to understand and program
- No batteries required in the opener unit
- Reliable mechanical design
- Easy troubleshooting
How to Program Your Genie Garage Door Opener With Dip Switches
Setting up your Genie garage door opener with dip switches requires careful attention to detail. Follow these steps precisely to ensure successful programming.
Step 1: Locate the Dip Switches
First, identify the dip switch locations on both devices:

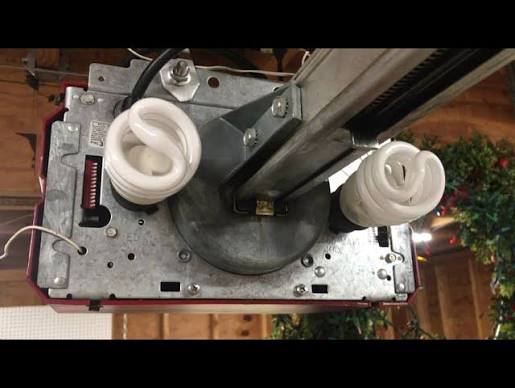

On the Opener Unit:
- Remove the light cover or access panel
- Look for a row of small switches labeled 1-8 or 1-12
- Note the current switch positions
On the Remote Control:
- Open the battery compartment
- Find the dip switches inside (usually near the battery)
- Check if they’re accessible without removing the battery
Step 2: Match the Switch Patterns
This is the most critical step. Every switch on your remote must match the corresponding switch on the opener exactly.
| Switch Number | Opener Position | Remote Position | Status |
|---|---|---|---|
| 1 | UP | UP | ✓ Match |
| 2 | DOWN | DOWN | ✓ Match |
| 3 | UP | DOWN | ✗ Mismatch |
| 4 | DOWN | DOWN | ✓ Match |
Example showing correct and incorrect matching
Pro tip: Take a photo of your opener’s dip switch settings before making any changes. This serves as a backup reference if you need to reset.
Step 3: Test the Remote
After matching all switches:
- Stand within 15-20 feet of the garage door
- Press the remote button firmly
- Listen for the opener motor to engage
- Observe whether the door moves
If the door doesn’t respond, double-check each switch position. Even one mismatched switch will prevent operation.
Step 4: Program Additional Remotes
To add more remotes, simply copy the exact dip switch pattern from your working remote to the new one. All remotes must match the opener’s settings identically.
Common Problems With Genie Dip Switch Openers
Even with proper setup, you might encounter issues. Here are the most frequent problems and their solutions.
Remote Not Working After Battery Change
Problem: The remote stops functioning after replacing batteries.
Solution:
- Verify batteries are inserted correctly (+/- orientation)
- Ensure the battery compartment closes completely
- Check that dip switches weren’t accidentally moved during battery replacement
- Try fresh batteries from a different package
Intermittent Operation
Problem: The remote works sometimes but not consistently.
Possible causes:
- Weak batteries (replace even if they seem fine)
- Dirty or corroded battery contacts
- Dip switches slightly misaligned
- Radio frequency interference from nearby devices
Fix: Clean battery contacts with a cotton swab and rubbing alcohol. Ensure all switches click firmly into position.
All Remotes Stop Working Suddenly
Problem: Multiple remotes that previously worked now fail simultaneously.
Likely causes:
- Power outage reset the opener
- Someone accidentally changed the opener’s dip switches
- Internal component failure
Solution: Check the opener’s dip switches first. If they’ve changed, update all remotes to match. If switches remain unchanged, consult a professional technician.
Dip Switches vs. Modern Rolling Code Systems
Understanding the differences helps you make informed decisions about your garage door security.
| Feature | Dip Switch System | Rolling Code System |
|---|---|---|
| Security Level | Basic | Advanced |
| Code Changes | Fixed | Changes with each use |
| Programming Complexity | Simple | Moderate |
| Vulnerability | Higher (code can be copied) | Lower |
| Cost | Lower | Higher |
| Reliability | Excellent | Excellent |
Security consideration: Dip switch codes can potentially be intercepted and replicated using code-grabbing devices. If security is a major concern, consider upgrading to a rolling code system.
When to Upgrade From Dip Switch Technology
While Genie garage door openers with dip switches remain functional, several factors might prompt an upgrade:
Consider upgrading if:
- You experience frequent interference issues
- Security concerns outweigh convenience
- Replacement parts become difficult to find
- You want smartphone integration capabilities
- Your system is over 15 years old
Stick with dip switches if:
- Your current system works reliably
- You prefer simplicity over advanced features
- Budget constraints limit upgrades
- You have multiple remotes already programmed
Expert Maintenance Tips for Longevity
Proper maintenance extends your Genie opener’s lifespan significantly.
Monthly checks:
- Inspect dip switch positions on all remotes
- Test each remote’s range and responsiveness
- Clean remote battery contacts
- Verify opener mounting brackets remain secure
Annual maintenance:
- Lubricate moving parts with silicone-based lubricant
- Check safety sensors alignment
- Tighten all hardware connections
- Inspect wiring for wear or damage
Important: Never use WD-40 or petroleum-based lubricants on garage door components. These attract dust and can damage plastic parts.
Frequently Asked Questions
How many dip switches does a Genie garage door opener have?
Most Genie garage door openers with dip switches feature between 8 and 12 switches. Older models typically have 8 switches, while newer dip switch versions may include 12 for increased code combinations. Check your specific model’s manual for exact specifications.
Can I change the dip switch settings for better security?
Yes, you can change the dip switch pattern to create a new code. However, you must update ALL remotes to match the new pattern. Write down your new code pattern and store it safely. Remember that dip switch codes remain fixed, so this provides limited security improvement compared to rolling code systems.
Why won’t my Genie remote work even with matching dip switches?
Several factors could cause this issue: dead or weak batteries, damaged remote circuitry, faulty opener receiver, radio frequency interference, or physical obstruction blocking the signal. Start by replacing batteries, then verify switch alignment. If problems persist, test the remote closer to the opener to rule out range issues.
Are Genie dip switch remotes interchangeable between models?
Not always. While many Genie remotes share similar dip switch configurations, compatibility depends on the specific model series and frequency. Check your opener’s manual for compatible remote models. Generally, remotes from the same era and product line work interchangeably if dip switch counts match.
How do I know if my Genie opener uses dip switches or rolling codes?
Open your remote’s battery compartment. If you see small toggle switches, you have a dip switch system. If there are no visible switches and instead you see a “Learn” or “Program” button on the opener unit, you likely have a rolling code system. Dip switch models were primarily manufactured before 2005.
Can weather affect dip switch garage door opener performance?
Extreme temperatures can impact battery performance in remotes, indirectly affecting operation. However, dip switches themselves aren’t weather-sensitive since they’re housed indoors. Moisture intrusion into the remote or opener could cause electrical issues. Ensure all components remain dry and protected from environmental exposure.
Conclusion
Mastering your Genie garage door opener with dip switches doesn’t require technical expertise—just patience and attention to detail. By understanding how these simple yet effective coding systems work, you can troubleshoot problems, program multiple remotes, and maintain reliable garage door operation for years to come.
Remember, the key to success lies in precise dip switch alignment and regular maintenance. While newer technologies offer enhanced security features, dip switch systems remain a dependable choice for millions of homeowners who value simplicity and proven performance.
