Is your garage door stopping halfway or reversing before it hits the floor? It can be incredibly frustrating, but adjusting your Genie Garage Door Opener Track Limit Set is usually a quick and easy fix that you can do yourself in just a few minutes.

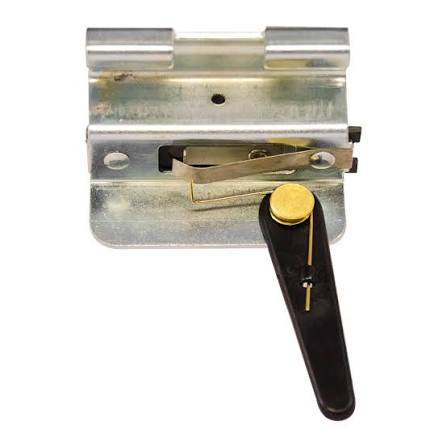

Understanding Your Genie Garage Door Opener Track Limit Set

Before you grab your tools, it is essential to know what you are dealing with. The limit settings tell your garage door opener exactly how far to travel before it stops. If these settings are off, your door might stop mid-air, crush an object, or strain the motor. Many homeowners confuse limit settings with force settings. While limits dictate where the door stops, force settings dictate how hard the motor pushes to get it there. Both must be perfectly balanced for safe operation.

According to the Wikipedia article on Garage Door Openers, modern openers rely on precise limit and force switches to operate safely and efficiently. When you adjust your Genie Garage Door Opener Track Limit Set, you are calibrating the exact distance the carriage travels along the steel rail.

Mechanical vs. Electronic Limits: A Quick Comparison

Depending on the age of your Genie model, you will encounter one of two systems. Here is a quick breakdown to help you identify yours:

Why Proper Limit Settings Matter for Home Safety

You might think a slightly misaligned door is just a minor annoyance, but it can lead to severe issues. According to industry data from the International Door Association (IDA), improper limit and force settings account for nearly 30% of all automated garage door malfunctions.

“Properly calibrated limits are the first line of defense against property damage and personal injury,” says John Davis, a certified garage door technician with over 15 years of experience. “When a door doesn’t know where the floor is, it can reverse unexpectedly, leaving your home vulnerable, or push too hard and bend the track.”

Real-World Case Study: The Winter Reversal Problem In January 2025, a homeowner in Minnesota experienced a frustrating issue: their Genie door would close 90% of the way and suddenly reverse. After ruling out dirty photo-eye sensors, they realized the freezing temperatures had caused the steel tracks to contract, effectively shortening the physical distance to the floor. By simply adjusting the Genie Garage Door Opener Track Limit Set by a fraction of an inch, they solved the problem and avoided a costly $200 emergency service call.

Here are the main risks of ignoring a poor limit set:

• Motor Burnout: The motor will continue to pull or push, overheating the internal gears and stripping the drive mechanism.
• Security Risks: A door that stops a few inches above the ground is an open invitation for pests, weather damage, and intruders.
• Spring Damage: Excessive strain on the tracks can prematurely wear out your expensive torsion springs.

Step-by-Step Guide to Adjusting the Limit Settings

Now, let us fix the problem. Below is a comprehensive tutorial for both mechanical and electronic Genie openers. Always prioritize safety by keeping your hands clear of moving parts and ensuring the area around the door is clear.

Phase 1: Preparation and Safety

• Clear the Area: Remove all vehicles, trash bins, and toys from the door’s path.
• Gather Tools: You will need a flathead screwdriver, a sturdy step ladder, safety glasses, and your Genie remote control.
• Check the Weather Stripping: Ensure the rubber seal at the bottom of the door is intact. A worn seal can trick the sensor into thinking the door has hit an obstacle.
• Clean the Photo-Eyes: Wipe the safety sensors located near the floor on both sides of the door with a soft cloth. Dust or cobwebs can cause false reversals.

Phase 2: Adjusting Mechanical Limit Switches (Older Models)

If your opener has a threaded shaft with two plastic nuts, follow these exact steps:

1. Locate the Switches: Use your step ladder to find the two limit switch nuts on the rail. One controls the “Up” limit, and the other controls the “Down” limit.
2. Adjust the Down Limit: If the door reverses before hitting the floor, turn the “Down” limit nut toward the motor exactly 1/4 inch per adjustment.
3. Adjust the Up Limit: If the door does not open fully, turn the “Up” limit nut away from the motor by 1/4 inch.
4. Test and Repeat: Press the wall button. Watch the door cycle completely. Make micro-adjustments (1/8 inch) until it closes flush with the floor without reversing.

Phase 3: Programming Electronic Limits (Newer Models)

Modern Genie openers (like the Stealth 500 or ChainMax 1000) use electronic programming.

1. Enter Programming Mode: Press and hold the “Set” button on the motor unit until the blue LED light turns on and starts flashing.
2. Set the Open Position: Press the wall button or remote to move the door to the exact height you want it to stop when open. Once in position, press the “Set” button again to lock it in.
3. Set the Close Position: Press the remote to close the door. Let it touch the floor gently. Note: Do not let the motor force the door into the concrete. Press the “Set” button to save the close limit.
4. Confirm the Settings: The LED will flash rapidly, indicating the Genie Garage Door Opener Track Limit Set is successfully saved.

Phase 4: The Crucial Safety Reversal Test

Once your limits are set, you must perform the mandatory safety test required by federal law.

1. Place a 1.5-inch thick piece of wood (like a standard 2×4 laid flat) on the floor directly under the center of the door.
2. Press the close button.
3. When the door strikes the wood, it must automatically reverse within two seconds.
4. If it does not reverse, your down force is set too high. Locate the force adjustment dial on the motor and turn it down slightly until the reversal test passes.

Troubleshooting Common Limit Set Issues

Even after following the steps, you might run into a few hiccups. Here is how to solve the most common problems.

• The Door Reverses Before Hitting the Floor: This usually means the close limit is set too short. You need to increase the travel distance. Alternatively, check your down force setting. If the force is too sensitive, it will reverse upon touching the slight resistance of the weather stripping.
• The Motor Keeps Running After Closing: Your close limit is set too long. The door is hitting the floor, but the motor still “thinks” it needs to travel further. Decrease the down limit immediately to prevent stripped gears.
• The Photo-Eye Sensors Are Misaligned: Even if your limits are perfect, the door will not close if the infrared safety beams are blocked or out of alignment. Check if the LED lights on the sensors are solid. If one is blinking, gently bend the sensor bracket until both lights remain solid.
• The Door Stops Halfway Up: This is often not a limit issue, but a track alignment or lubrication problem. Spray a silicone-based garage door lubricant on the rollers and hinges, and ensure the track bolts are tightened to 15-20 ft-lbs of torque. Avoid using WD-40, as it attracts dust and creates a gritty paste that jams rollers.

Frequently Asked Questions (FAQ)

1. How often should I recalibrate my limit settings? You should check and recalibrate your limits at least once a year. Temperature fluctuations between summer and winter can cause the metal tracks and springs to expand and contract, slightly altering the door’s travel distance over time.

2. Can I do this myself, or do I need a professional? Adjusting the Genie Garage Door Opener Track Limit Set is a highly accessible DIY task. However, if you notice broken cables, severely bent tracks, or snapped torsion springs, stop immediately and call a professional. Those components are under extreme tension and can be deadly.

3. What if my Genie opener doesn’t have physical limit nuts or a Set button? Some ultra-modern Genie models feature “Soft Start/Stop” and auto-calibrating limits. Simply perform a hard reset by unplugging the unit for 5 minutes. When you plug it back in, run one complete open and close cycle using the wall console; the system will automatically learn the new limits.

4. Why does my garage door limit change with the seasons? As mentioned, extreme heat causes metal tracks to expand, while freezing cold causes them to contract. Additionally, cold weather stiffens the grease in the opener’s gears, which can increase resistance and trick the electronic force sensors into reversing the door.

5. How do I reset the Genie electronic limits to factory defaults? To wipe the memory on most electronic Genie models, press and hold the “Set” button for about 10 seconds until the LED light turns off. Release the button, then press it once more. The system is now blank and ready for a fresh limit calibration.

6. What is the difference between limit settings and force settings? Limit settings control the distance the door travels (the “where”), while force settings control the power the motor applies (the “how hard”). If your door hits the floor and reverses, it might be a limit issue OR a force issue. Always adjust your limits first, then fine-tune the force settings.

Conclusion

Mastering your Genie Garage Door Opener Track Limit Set is one of the most rewarding DIY home maintenance tasks you can tackle. By taking just ten minutes to calibrate these settings, you protect your garage door motor from premature burnout, ensure your home remains secure against intruders, and guarantee smooth, quiet operation for years to come. Remember to start with small adjustments, prioritize safety, and always test the door manually before relying on the motor.
