Is your garage door acting up, leaving you wondering about the correct Genie Garage Door Opener Wall Switch Voltage before you touch any wires? Dealing with electrical components can feel intimidating, but understanding the safe, low-voltage setup of your system is the first step to a smooth fix. Let’s break down everything you need to know to get your door working perfectly again without risking costly damage.
What is the Correct Genie Garage Door Opener Wall Switch Voltage?
When we talk about the Genie Garage Door Opener Wall Switch Voltage, we are dealing with extra-low voltage direct current (DC).
Most modern Genie systems operate the wall console at a safe voltage ranging between 12V and 18V DC.
This is vastly different from the standard 120V alternating current (AC) that powers your home’s light fixtures and outlets. Because it is extra-low voltage, the wires leading to your wall switch are generally safe to touch, which is a massive relief for DIY homeowners.
However, a common mistake homeowners make is confusing these low-voltage terminals with high-voltage lines.
Warning: Never connect a 120V AC wire to your Genie wall switch terminals. Doing so will instantly fry the opener’s logic board, leading to a $100+ replacement mistake.
According to certified garage door technicians, understanding this voltage difference prevents nearly 90% of DIY opener disasters.
If you test the terminals with a multimeter, you might notice the DC voltage fluctuating. This is perfectly normal for modern openers, as the wires are actively transmitting digital data packets, not just a steady stream of power.
To learn more about how these safety mechanisms and low-voltage systems evolved over the decades, you can read about the history and mechanics on Wikipedia’s Garage Door Opener page.
Series I vs. Series II vs. Series III: Which Console Do You Have?
Knowing the voltage is only half the battle. Genie has changed its internal communication over the years to improve security and smart features.
You must identify which “Series” your opener belongs to before buying a replacement wall switch.
Here is a quick breakdown of the Genie generations:
- Series I: Found on older models (typically pre-1995). These use a simple “dry contact” closure. A standard, non-lit push button works perfectly here.
- Series II: Found on models from roughly 1995 to 2010. These require a specific Series II digital wall console. The voltage is low, but it carries a specific digital signal.
- Series III: The modern standard (post-2011). These use an advanced digital communication bus. You must use a Series III compatible wall console.
If you plug a Series I simple push button into a Series III opener, the door will not respond. The opener expects a digital handshake, not just a simple circuit closure.
Can I Use a Standard 120V Light Switch for My Genie Opener?
The short answer is no.
A standard light switch is designed to handle 120V AC and high amperage. It is bulky, unnecessary, and highly dangerous if miswired into a garage door circuit.
While a simple doorbell push button might work on a very old Series I opener, it will fail completely on modern digital consoles.
Modern Genie wall switches often include smart features like:
- Motion detection lighting controls
- Vacation lock mode for security
- Programmable automatic timers
- Digital Up/Down/Stop navigation buttons
These smart features require the specific low-voltage digital communication protocol that a standard household light switch simply cannot provide.
Pros and Cons: OEM Genie Wall Console vs. Universal Push Button
To help you decide on the right replacement, let’s look at a quick text comparison.

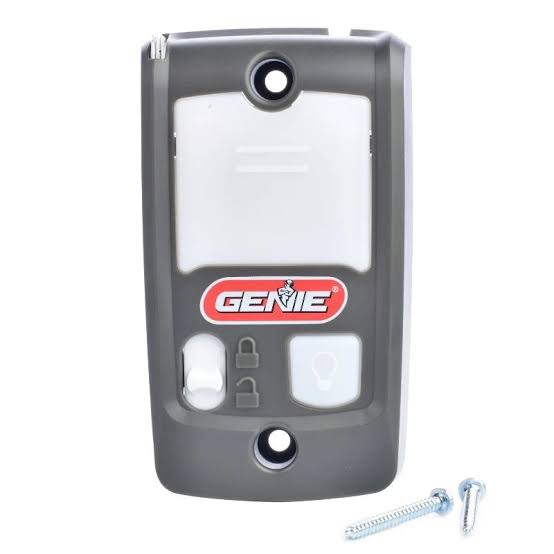

OEM Genie Digital Wall Console
- Pros: Full feature access (lock, lights, digital timing). Guaranteed compatibility. Safe low-voltage handshake.
- Cons: More expensive ($25–$45). Requires matching the correct Series.
Universal “Dry Contact” Push Button
- Pros: Very cheap ($5–$10). Simple to wire. Works flawlessly on very old Series I models.
- Cons: Zero smart features. Will not work on Series II or III openers. Lacks modern aesthetic appeal.
Troubleshooting Voltage Drop and Wall Switch Issues
Sometimes, your wall console will flicker or fail to respond, even if the wires seem connected. This is often caused by voltage drop.
- Staple Punctures: If you used a staple gun to secure the bell wire to the drywall, a staple might have pierced the insulation and crushed the copper core. This creates resistance and drops the voltage below the console’s operating threshold.
- Corroded Terminals: Over time, humidity in the garage can cause the tiny copper wires to oxidize. Simply snipping off the corroded end and re-stripping the wire often solves the issue instantly.
- Wire Nuts: Avoid using cheap wire nuts on low-voltage digital lines. The twisting motion can break the thin 22-gauge solid copper wire. Use crimp connectors or terminal blocks instead.
Step-by-Step: How to Wire and Test Your Genie Wall Switch Safely
Ready to install or troubleshoot your wall switch? Follow these precise steps to ensure a safe and successful setup.
Tools you will need:
- Wire strippers
- 22-gauge or 20-gauge solid copper bell wire
- Flathead screwdriver
- Multimeter (optional, for voltage testing)
Step 1: Disconnect the Power Always unplug the garage door opener from the ceiling outlet or turn off the dedicated circuit breaker. Even though the wall switch is low voltage, working on a powered motor head is a safety risk.
Step 2: Prepare the Wire Use 22-gauge solid copper bell wire. Strip exactly 1/4 inch (6 mm) of insulation from the ends of the two wires. Do not leave stray copper strands exposed, as they can touch each other and cause a short circuit.
Step 3: Connect at the Motor Head Locate the wall switch terminals on the back or side of the Genie motor head. Loosen the terminal screws. Wrap one stripped wire clockwise around the first screw, and the second wire around the other. Tighten firmly so the wire cannot pull loose.
Step 4: Connect at the Wall Console If using an OEM digital console, match the wire colors to the corresponding terminals (usually Red and White). If using a simple push button, polarity does not matter. Secure the wires and mount the switch to your drywall.
Step 5: Restore Power and Test Plug the opener back in. Press the wall switch. If the door operates smoothly and the console lights up, your Genie Garage Door Opener Wall Switch Voltage is flowing correctly!
Frequently Asked Questions About Genie Wall Switch Voltage
Q1: Does the polarity matter when wiring a Genie wall switch? If you are using a simple, non-lit mechanical push button on an older Series I opener, polarity does not matter. However, for Series II and Series III digital consoles, you must match the positive and negative terminals (often indicated by red and white wires) for the digital communication to work.
Q2: Why did my Genie wall console stop working after a power outage? Power surges during an outage can damage the logic board or the wall console itself. First, check if the ceiling outlet has power. If the opener works with the remote but not the wall switch, the low-voltage wire might be severed, or the console needs replacing.
Q3: Can I extend the wire from the opener to the wall switch? Yes, you can extend the wire. However, ensure you use the exact same 22-gauge or 20-gauge bell wire. Twisting mismatched wire gauges can cause resistance, leading to a voltage drop that prevents the digital console from powering up.
Q4: What is the maximum wire length for a Genie low-voltage switch? For simple dry-contact switches, you can run wire up to 100 feet. For modern digital Series II and III consoles, it is highly recommended to keep the wire length under 50 feet to prevent signal degradation and voltage drop.
Q5: Is it safe to work on the wall switch while the opener is plugged in? Because the system operates on extra-low voltage (under 18V DC), there is no risk of lethal electric shock at the wall switch. However, accidentally crossing the low-voltage wires with high-voltage wires can destroy the logic board. Always unplug the unit to be 100% safe.
Q6: My Genie wall switch has four wires, but the opener only has two terminals. What do I do? Some advanced Genie wall consoles with motion sensors or specialized lighting controls use a four-wire harness. If your motor head only has two terminals, you likely have a mismatch in Series compatibility, or you are trying to install a commercial sensor on a residential unit. Always check your opener’s manual for the exact wiring schematic.
Conclusion
Understanding your Genie Garage Door Opener Wall Switch Voltage is the key to maintaining a safe, reliable, and efficient garage entry system. By recognizing the difference between low-voltage digital communication and standard household current, you protect your opener’s logic board from costly damage. Always match your wall console to your opener’s specific Series, use the correct 22-gauge bell wire, and follow safe wiring practices to ensure long-term performance.
