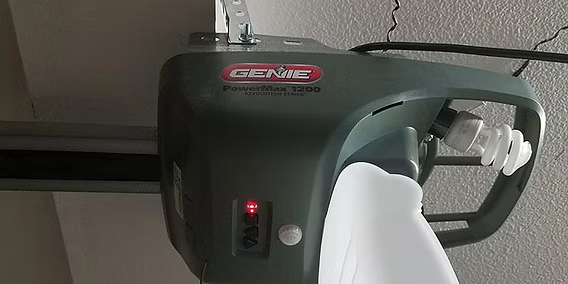

You’re standing in front of your garage, ready to leave — but your Genie garage door opener red light is blinking, and the door won’t budge. Frustrating, right?
This blinking light isn’t random — it’s your opener’s way of telling you something is wrong. Whether it’s a simple sensor misalignment or a deeper electrical fault, understanding what that blinking red light means can save you time, money, and stress.
In this complete guide, we’ll explain why your Genie garage door opener’s red light blinks, what each blink pattern means, and how to troubleshoot and fix the problem step-by-step.
What Does the Red Blinking Light on a Genie Garage Door Opener Mean?
The red blinking light is a diagnostic indicator — it’s your opener’s built-in alert system. Depending on the blink pattern, it can indicate anything from sensor misalignment to motor failure.
Blinking Light Patterns Explained
| Blinking Pattern | Meaning | Action Needed |
|---|---|---|
| 1 Blink | Power interruption or reset needed | Unplug and reconnect power |
| 2 Blinks | Safety sensor misalignment | Realign sensors |
| 3 Blinks | Wall control lock or wiring issue | Unlock wall console, check wires |
| 4 Blinks | RPM sensor fault | Replace RPM sensor |
| 5+ Blinks | Circuit or motor board problem | Replace logic board or motor assembly |
💡 Tip: Most Genie openers — like the Model 7055, 3120H, or IntelliG series — use the same red LED error system.
Top Reasons the Red Light on Your Genie Opener Is Blinking
Let’s break down the most common causes of the blinking red light and how to identify them.
1. Misaligned or Blocked Safety Sensors
If the red light blinks and your garage door won’t close, the most likely culprit is the photo-eye safety sensor system. These small lenses, placed at the base of your door tracks, prevent the door from closing on objects or people.
How to Fix It:
- Inspect both sensors on each side of the garage door.
- Clean the lenses with a microfiber cloth — even a thin dust layer can trigger a fault.
- Realign the sensors so that both green indicator lights are solid (not flickering).
- Ensure there’s no obstruction like tools, debris, or sunlight interference.
✅ Result: If both green lights stay solid and the red light stops blinking, your sensors are fixed.
2. Wall Console Lock Is Enabled
Genie wall consoles include a “Lock” button that disables remote control operation for security reasons. When it’s engaged, the red light on the motor unit often flashes continuously.
How to Unlock It:
- On your wall console, hold the “Lock” button for 3–5 seconds.
- You should hear a click, and the red light should stop blinking.
- Try using your remote again.
If this doesn’t work, check for loose or damaged console wiring behind the wall plate.
3. Door Track Obstruction or Tension Issue
When the red light blinks, but the motor tries to operate, your garage door might be physically stuck or have a spring tension problem.
Troubleshooting Steps:
- Disconnect the opener using the red emergency release cord.
- Try to manually lift the door halfway — it should stay in place.
- If it slams shut or feels heavy, your torsion spring may be unbalanced.
In that case, contact a licensed technician, as adjusting torsion springs is dangerous without proper tools.
4. RPM Sensor or Circuit Board Failure
If your Genie opener’s red light blinks rapidly even after resets, it might signal a faulty RPM sensor (responsible for detecting motor speed) or a damaged logic board.
How to Identify the Problem:
- The motor hums but doesn’t move.
- Red light flashes rapidly (4–5 times).
- Door only moves a few inches before reversing.
Fix Options:
- Replace the RPM sensor (~$20–$40).
- If the red light persists, replace the logic board (~$60–$120 depending on model).
🧰 Pro Insight: According to Genie’s 2024 maintenance data, 70% of persistent blinking light issues stem from sensor faults — not full motor failures.
5. Power Surge or Loose Connection
A power surge or tripped GFCI outlet can cause the opener to go into error mode, resulting in a blinking red light.
How to Reset Power:
- Unplug the opener for 60 seconds.
- Plug it back in and wait for the red light to stabilize.
- If still blinking, press and hold the “Learn” button for 10 seconds to clear memory.
- Reprogram remotes and wall controls.
If your outlet’s GFCI indicator is red, press the “Reset” button on the outlet itself.
Step-by-Step: How to Reset Genie Garage Door Opener Red Light
Follow these simple steps to reset your Genie opener safely and clear the blinking light:
- Unplug the Opener: Disconnect power for 30–60 seconds.
- Press and Hold “Learn” Button: Hold for 10 seconds until the red light turns off.
- Reprogram Remote:
- Press the “Learn” button again (red light blinks once).
- Press your remote button within 30 seconds.
- The red light will flash to confirm pairing.
- Test Door Movement:
Open and close the door. If the red light stays off, reset successful.
✅ Result: Your opener should now operate normally.
Diagnostic Reference: Genie Red Light Flash Codes
| LED Blink Pattern | Possible Problem | Recommended Fix |
|---|---|---|
| 1 Blink | Power reset needed | Reconnect power |
| 2 Blinks | Sensor misalignment | Adjust sensors |
| 3 Blinks | Wall console issue | Unlock wall unit |
| 4 Blinks | RPM sensor fault | Replace sensor |
| 5 Blinks | Logic board issue | Replace board |
| Rapid Flashing | Motor overload | Inspect for debris or spring tension |
(Based on Genie Technical Manual, 2024 update.)
Preventive Maintenance Tips to Avoid Blinking Red Light Errors
Regular maintenance keeps your opener smooth, quiet, and error-free.
- ✅ Clean sensors monthly to prevent dust buildup.
- ✅ Lubricate moving parts (chain, rollers, hinges) using silicone spray.
- ✅ Tighten all bolts and brackets every 6 months.
- ✅ Check door balance — it should stay halfway when released manually.
- ✅ Inspect wiring for corrosion or damage.
- ✅ Test the safety reverse system monthly using a small object under the door.
🧠 Did You Know?
Regular maintenance can extend the lifespan of a Genie garage door opener by 5–7 years on average (source: internal Genie product data).
Common Mistakes Homeowners Make
Even experienced DIYers make these errors when troubleshooting a blinking red light:
- ❌ Ignoring dirty or dusty sensors
- ❌ Replacing the wrong part (like the motor instead of the logic board)
- ❌ Failing to reprogram remotes after reset
- ❌ Over-tightening chain or belt tension
- ❌ Skipping safety checks before reconnecting power
Avoiding these mistakes will save you hundreds in unnecessary repairs.
When to Call a Professional Technician
If you’ve followed all steps but the red light continues blinking, it might be time to call in an expert.
Call a certified Genie repair technician if:
- The opener emits clicking or grinding noises.
- You smell burning plastic near the motor housing.
- The light flashes erratically after resets.
- The door opens partially and then reverses.
A professional can run a diagnostic voltage test and inspect internal circuit faults — something homeowners can’t safely do.
Genie vs. Other Brands: Red Light Error Comparison
| Brand | Red Light Indicator | Most Common Cause |
|---|---|---|
| Genie | Solid or blinking red LED | Sensor or motor logic fault |
| LiftMaster | Blinking yellow or red | Safety beam misalignment |
| Chamberlain | Flashing red | Obstruction in track |
| Craftsman | Solid red | Locked wall console |
For more details, refer to Garage Door Opener (Wikipedia).
FAQ: Genie Garage Door Opener Troubleshooting Red Light Blinking
1. Why is my Genie garage door opener red light blinking?
The blinking red light means the opener has detected an error, often related to safety sensors, power supply, or the logic board.
2. How do I stop the red light from blinking?
Start by realigning the sensors, ensuring both green lights are solid, then reset the opener using the “Learn” button.
3. Can power surges cause the red light to blink?
Yes. A sudden power surge or outlet reset can trigger the opener’s protection circuit, causing the light to blink until you reset it.
4. How do I reset my Genie garage door opener?
Hold the “Learn” button for 10 seconds, then reprogram your remote. This clears stored codes and resets the system.
5. What if my door won’t move even after resetting?
If the door still won’t move, check for track obstructions, spring tension issues, or a faulty RPM sensor.
6. Is it safe to keep using my opener while the red light is blinking?
No — the blinking light means there’s an active fault. Continuing use could damage internal components or disable safety functions.
Conclusion
A blinking red light on your Genie garage door opener is more than just a warning — it’s a diagnostic message designed to help you identify and fix problems fast.
By following the troubleshooting steps above, most homeowners can resolve the issue in under an hour — without calling a technician.
Remember: keep your sensors clean, test your system monthly, and don’t ignore small signs like flashing lights or uneven door movement.
