Is your garage door refusing to open, leaving your car trapped inside? Don’t worry, because replacing the Genie Garage Door Opener Sequencer Circuit Board 24350S is a straightforward fix that will get your door working smoothly again. Let’s walk through this repair together so you can save money on professional service calls.
What Does the Genie Garage Door Opener Sequencer Circuit Board 24350S Actually Do?
Think of the sequencer board as the brain of your garage door system. Every time you press the remote or the wall button, this board dictates the exact sequence of operations. It tells the motor to engage, signals the lights to turn on, and monitors the safety sensors to ensure nothing is in the door’s path.
At its core, this component is a specialized printed circuit board that manages the electrical logic and power distribution for your specific Genie model. When this board fails, the “brain” gets confused, resulting in a door that simply won’t move.
How Do I Know If My Sequencer Board is Faulty?
Before you buy a replacement, you need to confirm the board is actually the culprit. Here are the most common symptoms of a failing Genie 24350S board:
- Flashing Lights: The learning indicator or light bulbs flash 5 times repeatedly.
- No Response: The motor makes no sound, and the lights do not turn on when you press the wall console.
- Door Reverses Immediately: The door moves down an inch, stops, and immediately goes back up without hitting an object.
- Burning Smell: A distinct odor of melted plastic or burnt electronics coming from the motor head.
Quick Comparison: Healthy vs. Failing Board
| Feature | Healthy Sequencer Board | Failing Sequencer Board |
|---|---|---|
| Visual Condition | Clean, no burn marks, intact components | Scorch marks, bulging capacitors, melted plastic |
| Door Operation | Smooth, consistent opening and closing | Erratic movement, stopping mid-cycle |
| Sensor Response | Solid LED light on safety sensors | Sensors fail to communicate with the logic board |
| Power Draw | Normal electrical consumption | Trips the circuit breaker or blows internal fuses |
Troubleshooting Tips Before You Buy a Replacement
Don’t rush to buy a new part just yet! Up to 40% of garage door repairs are misdiagnosed. Before replacing the board, check these simple things:
- Check the Safety Eyes: Look at the sensors near the floor. If the LED is blinking or off, the beam is blocked or misaligned. Clean the lenses and adjust them until the light is solid.
- Inspect the Wall Console: Ensure the wires connected to the back of the indoor wall button are tight and not pinched.
- Test the Power Outlet: Set your digital multimeter to AC voltage (V~) and ensure the outlet is supplying exactly 120V. If the outlet is dead, check your home’s circuit breaker.
Step-by-Step Guide to Replacing the 24350S Circuit Board
If you have confirmed the board is dead, it is time for the swap. This process takes about 20 minutes.
Tools Required:
- #2 Phillips-head screwdriver
- Digital multimeter (optional, for testing)
- Smartphone (to take photos)
Step 1: Cut the Power Completely Unplug the garage door opener from the ceiling outlet. Crucial: Wait exactly 10 minutes for the internal capacitor to fully discharge to avoid a severe electrical shock.
Step 2: Remove the Light Lens and Cover Use your #2 Phillips-head screwdriver to remove the 2 screws holding the light lens in place. Set the lens and screws aside safely. Next, remove the 4 screws securing the main plastic cover of the motor head.
Step 3: Document the Wiring Before touching any wires, use your smartphone to take 3 clear photos of the circuit board. This ensures you know exactly where the white, brown, and red wire harnesses plug in.
Step 4: Disconnect the Old Board Gently pull the wire harnesses straight out from the board. Do not pull by the wires themselves; pull by the plastic connector heads.

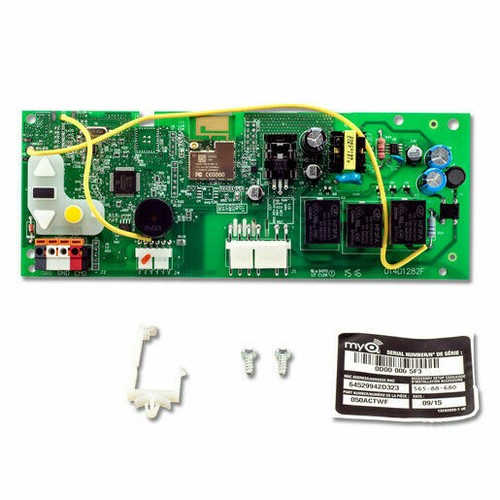

Step 5: Swap the Boards Remove the 4 mounting screws holding the old sequencer board in place. Lift it out, position the new Genie Garage Door Opener Sequencer Circuit Board 24350S, and secure it with the screws.
Step 6: Reconnect and Test Plug all the wire harnesses back into their corresponding ports on the new board (refer to your photos). Snap the plastic cover and light lens back into place, secure the screws, and plug the unit back into the ceiling. Press your remote to test the sequence!
FAQ Section
What models are compatible with the Genie 24350S board?
The 24350S sequencer board is specifically designed for older Genie screw drive and chain drive models, particularly those in the PMX500IC and CMS5000IC series. Always verify your model number on the back of the motor head before purchasing.
Do I need to reprogram my remotes after replacing the board?
Yes! Because you have installed a new logic board, it has a blank memory. You will need to press the “Learn” or “Set” button on the new board and sync your handheld remotes and keypad exactly as you did when the opener was brand new.
How much does a Genie sequencer circuit board cost?
A genuine replacement Genie 24350S circuit board typically costs between $65 and $95 USD. While third-party alternatives exist, we highly recommend using OEM (Original Equipment Manufacturer) parts to ensure safety and longevity.
Can I repair the circuit board instead of replacing it?
Technically, yes, but practically, no. Unless you are a certified micro-soldering expert, attempting to replace surface-mount capacitors or relays on a high-voltage board is dangerous and rarely lasts. Replacing the entire board is the safest and most cost-effective route.
Why does my garage door close then immediately open back up?
This is usually a safety sensor issue, not a board issue. If the board doesn’t receive the “clear path” signal from the infrared sensors, it will reverse the door to prevent crushing an object. Check your sensor alignment first.
Conclusion
Replacing the Genie Garage Door Opener Sequencer Circuit Board 24350S is an incredibly rewarding DIY project that restores your home’s security and convenience. By following these steps, you bypass expensive technician fees and gain a deeper understanding of your home’s mechanical systems.
