Introduction
Is your Genie garage door refusing to close, leaving you frustrated and stranded? You might be searching for a Genie garage door opener bypass safety beam solution to get your door moving again. While we completely understand the urgency of the situation, your family’s safety must always come first. This guide will show you the only safe, temporary override method and provide a clear, step-by-step plan to fix the root cause permanently.
The Truth About Genie Garage Door Opener Bypass Safety Beam Requests
Let’s address the most common question directly: Can you permanently disable the safety sensors? The short and definitive answer is no.
Since 1993, federal regulations (specifically the UL 325 standard) have mandated that all residential garage door openers include a non-contact reversal safety device
support.geniecompany.com. Genie’s Safe-T-Beam® system is engineered with a strict built-in fail-safe. If the system is tampered with, unwired, or physically removed, the opener’s motor is designed to refuse operation entirely
support.geniecompany.com.
Attempting a permanent bypass is not only a severe safety hazard for children and pets, but it also violates national safety codes and will immediately void your manufacturer’s warranty. The system is designed to protect, not to be defeated.
The Only Safe Temporary Override Method
If you need to close the door immediately for security reasons or to perform diagnostics, there is one legitimate, temporary workaround: the hold-to-close override
www.24ocgaragedoors.com. This feature is intentionally built into your wired wall control panel for emergency and diagnostic purposes.
Here is the exact, step-by-step process to use it safely:
- Clear the area completely: Ensure no people, pets, or objects are in the garage door’s path.
- Locate the wall button: Find the wired wall control panel mounted inside your garage.
- Press and hold continuously: Press the close button and keep it depressed without letting go.
- Monitor the door closely: The door will close only as long as you maintain constant physical pressure on the button. If you release it, the door will immediately stop or reverse direction.
Expert Warning: This is strictly a temporary diagnostic tool. Do not use this as a permanent daily solution, as it removes the critical protection that prevents the heavy door from crushing objects in its path.
Why Is My Genie Garage Door Reversing When Closing?

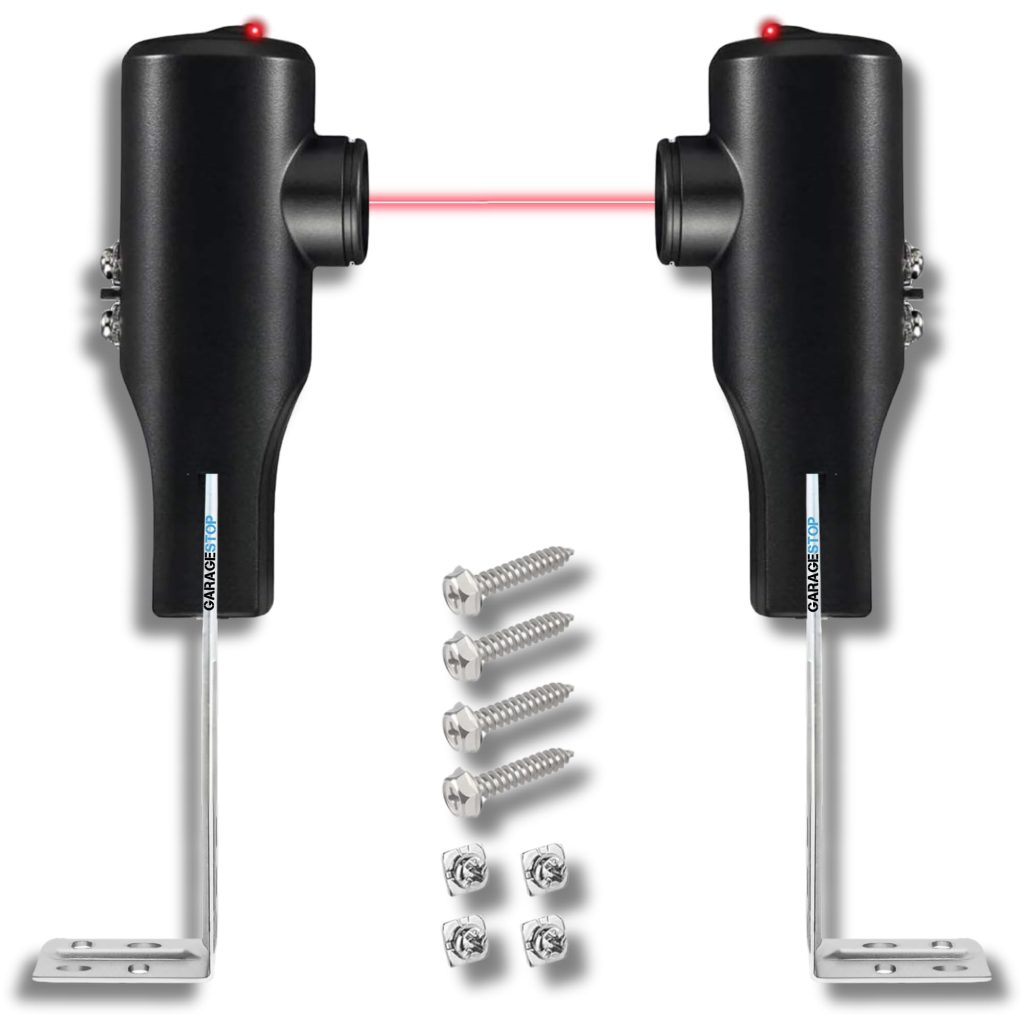

Before you consider any override, it is crucial to understand why the safety beam is triggering in the first place. The Genie Safe-T-Beam uses a continuous, invisible infrared beam projecting from a transmitter (typically with a green LED) to a receiver (typically with a red LED)
support.geniecompany.com.
If this invisible beam is interrupted, the door automatically reverses to prevent injury. Common culprits include:
- Misalignment: Even a microscopic shift of a few millimeters due to a bumped bracket can break the beam.
- Dirt and Debris: Accumulated dust, spider webs, or mud on the sensor lenses can block the infrared light.
- Sunlight Interference: Direct, intense sunlight hitting the receiving sensor can overwhelm and drown out the infrared signal support.geniecompany.com.
- Damaged Wiring: Nicked, pinched, or loose wires prevent the completed electrical circuit needed for normal operation.
Step-by-Step Guide to Fixing Genie Safe-T-Beam Sensors
Instead of searching for a bypass, fixing the sensor issue takes less than 15 minutes and restores full safety. Follow these concrete, expert-recommended steps:
Step 1: Clean the Sensor Lenses
Use a soft, dry microfiber cloth to gently wipe both the transmitting and receiving sensor lenses. Avoid using chemical cleaners, abrasive pads, or excessive water, as moisture can permanently damage the internal electronics.
Step 2: Check the Mounting Height
Verify that both sensor brackets are mounted at the exact same height on either side of the door. According to Genie’s official specifications, the beam lenses must be located at least 5 inches, but not more than 6 inches, from the garage floor
support.geniecompany.com.
Step 3: Realign the Sensors Precisely
Look at the LED indicators. Your goal is to have both the red and green LEDs shining steadily (not blinking). Loosen the wing nut or mounting bolt slightly. Have a helper watch the light while you make micro-adjustments to the bracket. Once the blinking stops and the light becomes solid, tighten the bolt to approximately 5–10 inch-pounds of torque. This secures it firmly without cracking the plastic housing.
Step 4: Inspect the Wiring Thoroughly
Trace the thin-gauge wires from the sensors all the way back to the motor head. Ensure they are securely fastened to the terminal screws. If you find any frayed, pinched, or rodent-chewed sections, the wire must be replaced entirely.
Genie Safe-T-Beam LED Error Codes (Quick Reference)
Understanding your sensor’s visual language is half the battle. Use this quick reference table to diagnose the issue instantly:
| LED Status | Probable Cause | Recommended Action |
|---|---|---|
| Both Solid | System is healthy and perfectly aligned. | No action needed. Door should close normally. |
| Red Blinking, Green Solid | Misalignment or physical obstruction. | Realign sensors and clear any obstacles in the path. |
| Both Blinking | Wiring issue or power failure at the head. | Check terminal connections at the motor head and sensors. |
| Green Blinking Only | Sunlight interference or cross-talk. | Shield the sensor from direct sun or check adjacent doors support.geniecompany.com. |
The Science Behind the Safety
For a deeper understanding of how photoelectric safety systems revolutionized residential garage safety and became a federal mandate, you can explore the historical context and mechanical design of garage door openers on Wikipedia. This external resource highlights why these systems are non-negotiable for modern home safety.
Preventative Maintenance to Avoid Future Issues
Fixing the problem is great, but preventing it is even better. By implementing a few simple maintenance habits, you can ensure your Genie Safe-T-Beam operates flawlessly year-round.
- Monthly Visual Inspections: Take 60 seconds each month to verify that both sensor brackets are tight and have not been bumped by vehicles, bicycles, or storage items.
- Seasonal Wiring Checks: Temperature fluctuations can cause wires to expand and contract. Inspect the wiring along the wall and ceiling twice a year for any signs of brittleness or loose connections.
- Keep the Area Clear: Maintain a strict 3-foot clearance zone around the base of the garage door. This prevents accidental bumps and ensures the infrared beam has a completely unobstructed path.
Frequently Asked Questions (FAQ)
1. Can I permanently disable the Safe-T-Beam on my Genie opener?
No, you cannot. Genie garage door openers manufactured since 1993 are legally required to have a functioning non-contact reversal safety device
support.geniecompany.com. The system is designed to disable the opener entirely if the sensors are tampered with or disconnected.
2. Why does my Genie garage door only close when I hold the wall button?
This indicates that the safety beam is interrupted or misaligned. Holding the wall button activates a temporary diagnostic override, allowing the door to close only while constant pressure is applied
www.24ocgaragedoors.com. You should realign or clean the sensors to resolve this underlying issue.
3. What do the blinking red and green lights on my Genie sensors mean?
A steady light on both sensors means they are aligned and “seeing” each other. If either light is blinking, it signifies an obstruction, misalignment, wiring fault, or sunlight interference preventing the infrared beam from completing its circuit
support.geniecompany.com.
4. How often should I clean my garage door safety sensors?
It is best practice to wipe down the sensor lenses with a dry microfiber cloth once a month. If you live in a dusty environment or a region with heavy pollen, you may need to clean them every two weeks to prevent false reversals.
5. Will attempting to bypass the safety beam void my Genie warranty?
Yes. Any attempt to permanently modify, cut, or bypass the Safe-T-Beam system is considered unauthorized tampering. This will immediately void your manufacturer’s warranty and could expose you to significant liability if an accident occurs.
Conclusion
Dealing with a garage door that won’t close is undeniably frustrating. However, searching for a permanent Genie garage door opener bypass safety beam shortcut is never the right or safe answer. The Safe-T-Beam system exists to protect your loved ones and property from severe injury or damage.
By utilizing the temporary hold-to-close override strictly for diagnostics, and following our step-by-step realignment guide, you can restore your garage door’s functionality safely, legally, and permanently.
