Have you ever stood in your driveway, frustrated, because your garage door refuses to close while that tiny LED on the sensor glows an unyielding solid red? You are not alone. This common issue with the Genie garage door opener sensor solid red light often signals a misalignment or obstruction, but it can quickly turn into a major headache if left unresolved. Understanding what this light means is the first step toward getting your garage back to normal operation without calling an expensive technician.

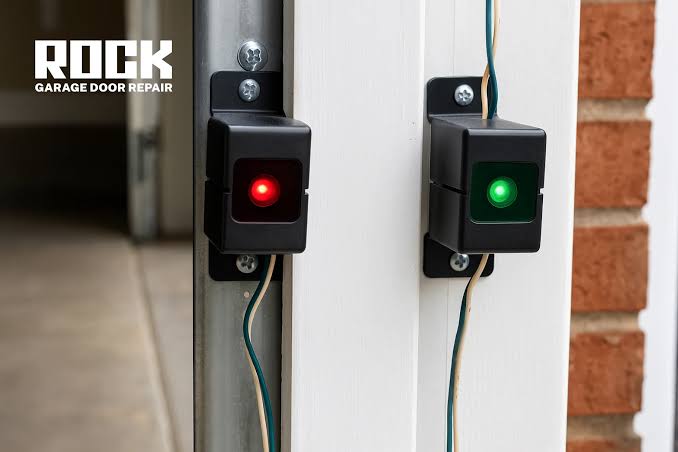

What Does a Solid Red Light on Your Genie Sensor Mean?
Before we dive into fixes, it is crucial to understand the language your garage door is speaking. Most Genie garage door openers use a pair of safety sensors located near the floor on either side of the door track. One sensor sends an invisible infrared beam, and the other receives it.
Typically, the sending unit has a green or amber light, indicating it is powered and transmitting. The receiving unit usually displays a green light when the beam is successfully received. However, when you see a solid red light on the receiving sensor, it indicates one of two things:
- The beam is blocked: Something is physically interrupting the infrared signal.
- The sensors are misaligned: The units are not facing each other directly, so the “eye” cannot see the “beam.”
In rare cases, a solid red light might also indicate a wiring issue or a faulty sensor unit, but alignment and obstructions account for over 90% of these cases according to industry repair data.
Why Is My Genie Garage Door Not Closing with a Red Light?
Modern garage door openers are designed with strict safety standards mandated by federal law since 1993. If the safety eyes detect any interruption in the beam, the opener will refuse to close the door to prevent injury or damage. This is a feature, not a bug.
When the Genie garage door opener sensor solid red light is active, the control board interprets this as an obstacle in the door’s path. Even if there is nothing visible to the naked eye, dust, spider webs, or slight shifts in the mounting brackets can break the connection. Ignoring this warning and forcing the door down using the wall button bypasses safety protocols and can lead to severe accidents or void your warranty.
Step-by-Step Guide to Fixing the Solid Red Light
Fixing this issue is often a DIY task that takes less than 15 minutes. Follow these precise steps to realign your sensors and clear the error.
Step 1: Check for Physical Obstructions
Start with the simplest solution. Look at the lens of both sensors (the small plastic windows).
- Wipe them gently with a soft, dry cloth.
- Remove any leaves, boxes, bikes, or trash cans that might be blocking the path between the two units.
- Ensure no direct sunlight is hitting the receiving sensor, as intense UV light can sometimes interfere with infrared signals.
Step 2: Inspect the Indicator Lights
Look closely at both sensors.
- Sending Unit: Should have a steady green or amber light.
- Receiving Unit: If it is solid red, it is not receiving the beam. If it is blinking red, it may be receiving intermittent signals due to poor alignment.
Step 3: Realign the Sensors
This is the most common fix. The sensors must face each other perfectly.
- Loosen the wing nut or screw on the bracket of the sensor showing the red light. Do not remove it completely; just loosen it enough so the sensor can move.
- Gently adjust the sensor horizontally and vertically. Watch the light as you move it.
- Stop adjusting when the red light turns green (or stops blinking, depending on your model).
- Tighten the wing nut securely while holding the sensor in place. Be careful not to shift it while tightening.
Step 4: Check the Wiring
If alignment does not work, inspect the wires running from the sensors to the motor head.
- Look for frayed wires, cuts, or loose connections at the terminal screws on the back of the motor unit.
- Ensure the wires are not stapled too tightly, which can damage internal copper strands over time.
Step 5: Test the Door
Press the wall button or remote to close the door. If the sensors are aligned correctly, the door should close smoothly. If it reverses immediately upon touching the floor, you may need to adjust the travel limits, but this is separate from the sensor issue.
Common Causes vs. Solutions Overview
To help you diagnose faster, here is a quick reference table comparing common causes of the red light with their respective solutions.
| Cause | Symptom | Solution |
|---|---|---|
| Misalignment | Solid or blinking red light on receiver | Adjust sensor bracket until light turns green |
| Obstruction | Solid red light | Clear path between sensors; clean lenses |
| Loose Wiring | Intermittent red/green flickering | Tighten terminal screws; replace damaged wire |
| Sunlight Interference | Red light appears only at certain times | Shade the sensor or adjust angle slightly |
| Faulty Sensor | No light on either unit | Replace sensor pair |
For more detailed technical specifications on garage door safety standards, you can refer to the U.S. Consumer Product Safety Commission guidelines which outline the mandatory requirements for automatic reverse mechanisms.
When to Call a Professional
While most Genie garage door opener sensor solid red light issues are simple fixes, there are scenarios where professional help is recommended:
- Persistent Issues: If you have realigned the sensors multiple times and the light remains red, the sensor unit itself may be defective.
- Wiring Problems: If you are uncomfortable working with electrical components or if the wiring runs through walls/ceilings, hire a licensed technician.
- Older Models: If your Genie opener is more than 15 years old, parts may be obsolete, and a full system upgrade might be more cost-effective than repeated repairs.
FAQ: Genie Garage Door Sensor Issues
1. Can I bypass the sensors to close my garage door?
Technically, yes, by holding down the wall button, but this is highly discouraged. Bypassing safety sensors removes critical protection against entrapment and injury. It should only be used in extreme emergencies and never as a permanent solution.
2. Why does my sensor light blink instead of staying solid red?
A blinking red light usually indicates that the sensor is receiving some signal but it is weak or intermittent. This is almost always an alignment issue. Fine-tune the angle of the sensor until the light becomes steady green.
3. Does rain or weather affect the Genie sensor lights?
Yes. Heavy rain, fog, or condensation on the lens can scatter the infrared beam, causing a false red light reading. Wiping the lenses dry and ensuring the housing is sealed can mitigate this. In extreme climates, consider installing sensor hoods.
4. How do I know if my Genie sensor is broken?
If both sensors have power (lights are on) but the receiving unit never turns green despite perfect alignment and no obstructions, the receiver may be faulty. You can test this by swapping the wires at the motor head. If the problem follows the wire, it’s a wiring issue; if it stays with the sensor unit, the sensor is likely bad.
5. What voltage do Genie garage door sensors use?
Most Genie sensors operate on low-voltage DC power supplied by the opener’s logic board, typically around 5–12 volts. Never connect them to standard household 120V AC power, as this will instantly destroy the sensors.
Conclusion
Dealing with a Genie garage door opener sensor solid red light doesn’t have to be a stressful experience. By understanding that this light is a safety feature designed to protect your family and property, you can approach the problem with confidence. In most cases, a simple cleaning or minor adjustment of the sensor brackets will restore your garage door to full functionality within minutes.
Remember, regular maintenance—such as checking alignment seasonally and keeping lenses clean—can prevent this issue from recurring. If you found this guide helpful, please share it with friends or neighbors who might be struggling with their own garage door quirks. A well-functioning garage door is a safe garage door!
