A reliable garage door is essential for security, convenience, and peace of mind. But when your Genie garage door opener red light blinks 4 times, it’s often a sign that something isn’t functioning properly. Unlike random blinking or complete failure, four specific red flashes from the opener’s LED light indicate a particular issue—and knowing what it means can save you time, money, and frustration.
In this article, we’ll break down exactly what four red light blinks on your Genie garage door opener mean, why it happens, and how you can fix the problem—sometimes in under 15 minutes.

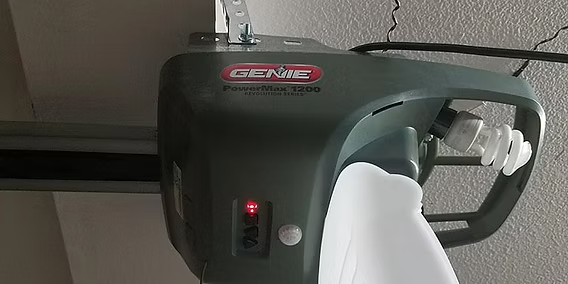

What Does It Mean When the Genie Garage Door Opener Red Light Blinks 4 Times?
When your Genie garage door opener red light blinks 4 times, it usually indicates a motor control circuit failure or a problem related to the limit switch or travel module—components that tell your opener when to stop opening or closing the door.
This error is part of Genie’s internal diagnostics system. These blinks aren’t random. They’re a coded message from your opener, telling you something in the electrical or control system has gone wrong. The opener is essentially refusing to move the door further until the problem is corrected.
Troubleshooting the Genie Garage Door Opener Red Light Blinks 4 Times Error
To troubleshoot and repair this issue, we’ll walk through a step-by-step guide. You’ll learn how to inspect, test, and in some cases, replace components that may be causing the blinking.
1. Unplug and Reboot the Opener
Before diving into complex repairs, try the simplest solution: unplug the opener for 30-60 seconds. Power cycling your Genie opener may clear temporary faults or firmware glitches that triggered the red blinking.
Steps:
- Unplug the unit from the ceiling outlet.
- Wait for one full minute.
- Plug it back in and check the LED indicator.
If the Genie garage door opener red light blinks 4 times again after reboot, move to the next step.
2. Inspect the Door’s Travel Limits
Travel limits determine how far your garage door travels when opening or closing. If these are incorrectly set, the motor can strain, triggering the 4-blink error.
How to Adjust Travel Limits:
- Locate the limit adjustment knobs or dials (usually on the back or side of the motor).
- Use a flathead screwdriver to turn the limit screws slightly.
- Test door movement after each adjustment.
Make small changes—turning too far can make things worse. If the red light blinking disappears, you’ve found your issue.
3. Check the Door Balance and Rollers
A misaligned or heavy garage door puts stress on the motor. When your Genie opener senses abnormal resistance, it may stop and flash an error.
Things to Inspect:
- Manually lift the door: It should stay in place halfway open. If it falls or is heavy, the springs may need adjustment.
- Inspect rollers and tracks: Debris, rust, or warping can increase resistance.
- Lubricate moving parts: Use a silicone-based garage door lubricant.
An unbalanced door can wear out the opener faster and trigger recurring errors like the 4-blink warning.
4. Check the Limit Switch or Travel Module
The travel module or limit switch in Genie models detects the door’s open and closed positions. If it malfunctions, the opener can’t properly detect door limits—resulting in the red light blinking 4 times.
How to Test:
- Disconnect power.
- Inspect wiring and connectors to the limit switch module.
- Look for loose wires, burn marks, or corrosion.
Some Genie models allow you to replace the travel module without replacing the entire opener. Replacement parts are widely available online or at garage door supply stores.
5. Inspect the Control Board (PCB)
In some cases, a damaged control board—also called a PCB (Printed Circuit Board)—is the culprit. Voltage surges, power outages, or overheating can fry internal circuits.
Signs of a bad PCB:
- Strong burning smell.
- Unresponsive control buttons.
- Persistent red light error after all other steps.
Solution:
- Purchase a replacement control board (specific to your Genie model).
- Follow manufacturer instructions or hire a professional.
6. Test with Wall Console and Remote
Sometimes, the issue may be linked to the wall console or remote control, especially if one device works but the other doesn’t.
Try This:
- Operate the door with both the wall button and remote.
- If the red light blinks 4 times only with one method, that device may be faulty.
- Change batteries or reprogram the remote if necessary.
Additional Causes of the Genie Garage Door Opener Red Light Blinks 4 Times
Aside from limit switch or motor control errors, other causes might include:
- Overheating from excessive use
- Power supply interruptions
- Door obstructions
- Incorrect installation of safety beams
- Software errors or firmware corruption
Preventative Maintenance Tips
Preventing future blinking errors requires a little upkeep. Here’s how to reduce the chances of encountering the 4-blink warning again:
– Monthly Safety Sensor Check
Ensure your safety beams are clean, aligned, and unobstructed. Wipe the lenses with a soft cloth.
– Balance the Door Twice a Year
If you’re unsure how to do this, hire a technician. Balanced doors help your opener function with less strain.
– Lubricate Every 6 Months
Use garage-door specific lubricant on rollers, hinges, and the chain/belt to reduce friction.
– Surge Protection
Install a surge protector or plug the opener into a GFCI outlet to prevent damage during lightning storms or power surges.
When Should You Call a Professional?
If after troubleshooting you still see the Genie garage door opener red light blinks 4 times, and the door won’t move, it might be time to call in a garage door technician.
You should seek help if:
- You suspect electrical damage.
- The opener is more than 10 years old.
- The limit switch or motor needs replacement.
- You’re uncomfortable working with electrical components.
While many homeowners can handle minor maintenance, electrical or mechanical failures should be assessed by a licensed technician.
Frequently Asked Questions
Can I continue using the opener if the light blinks 4 times?
No. The opener is signaling a malfunction that may prevent proper door movement. Using it may worsen the problem or damage internal parts.
Is this the same as a sensor issue?
Not exactly. A sensor (Safe-T-Beam) issue usually causes 1 or 3 blinks. Four blinks usually indicate a travel or motor-related fault.
Does resetting the opener clear the error?
A reset may clear temporary issues. However, persistent blinking means a hardware or mechanical component likely needs attention.
Conclusion
The Genie garage door opener red light blinks 4 times for a reason—it’s the system’s built-in diagnostic alert that something isn’t working as it should, often due to motor control, limit switch, or travel sensor issues. Fortunately, with a bit of troubleshooting, most of these problems can be resolved at home without calling a technician.
From resetting the opener to adjusting travel limits or checking door balance, this guide equips you with the tools and understanding needed to get your garage door functioning smoothly again.
Keep this guide handy the next time your Genie opener blinks at you—you’ll know it’s not just random; it’s your opener asking for help.
