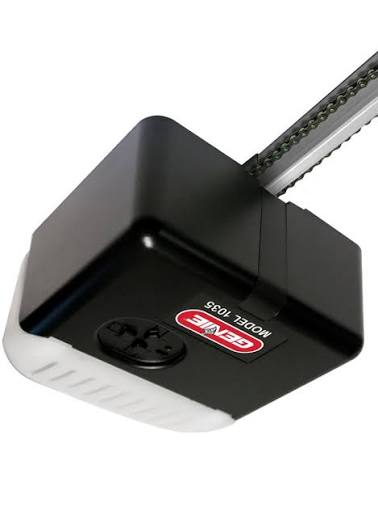

Is your garage door refusing to budge, or perhaps it’s making strange noises that keep you up at night? Dealing with a malfunctioning opener can be incredibly stressful, especially when you are in a rush to leave for work. You are not alone; thousands of homeowners face similar issues with their Genie Garage Door Opener Model 1035 Troubleshooting needs every year. This guide is designed to help you diagnose and fix common problems quickly, safely, and effectively, saving you the cost of a professional service call.
Why Is My Genie 1035 Not Responding to the Remote?
One of the most frequent complaints among users is a lack of response from the handheld remote or wall console. Before you assume the motor unit is broken, we need to rule out the simplest culprits: power and batteries.
Check the Power Source First
It sounds obvious, but many issues stem from a simple power disruption. Ensure the opener is plugged in securely. If your unit is hardwired, check your home’s circuit breaker panel. A tripped breaker is a common occurrence after power surges or storms. Reset the breaker by switching it fully off and then back on. If the light on the motor unit does not turn on, the issue is likely electrical supply rather than the opener itself.
Replace Remote Batteries
If the motor unit has power but the remote does not work, the batteries are the next suspect. Weak batteries often provide enough voltage to light up the LED on the remote but not enough to send a strong signal to the receiver.
- Step 1: Open the battery compartment on your remote.
- Step 2: Replace old batteries with fresh alkaline batteries (usually CR2032 or AA, depending on the model).
- Step 3: Test the remote immediately.
If new batteries do not solve the issue, the remote may have lost its programming. You will need to re-sync it with the main unit. Press the “Learn” button on the back of the motor head (usually near the antenna wire) until the LED blinks, then press the button on your remote within 30 seconds.
How Do I Fix a Genie 1035 That Opens But Won’t Close?
This is a critical safety feature issue. Modern garage door openers are equipped with safety sensors that prevent the door from closing if an obstacle is detected. If your door opens perfectly but reverses immediately upon trying to close, the safety eyes are likely misaligned or blocked.
Inspect the Safety Sensors
Located near the floor on both sides of the garage door track, these small devices emit an invisible beam. If the beam is interrupted, the door will not close.
- Check for Obstructions: Ensure no boxes, bikes, or debris are blocking the path between the two sensors.
- Clean the Lenses: Use a soft, dry cloth to wipe away dust, spider webs, or dirt from the sensor lenses.
- Verify Alignment: Look at the LED lights on the sensors. One should be solid green (power), and the other should be solid amber or red (beam received). If the receiving sensor’s light is blinking or off, the units are misaligned. Gently adjust the brackets until both lights are solid.
Check the Travel Limits
If the sensors are working correctly, the issue might be with the travel limit settings. The Genie 1035 uses electronic limits to determine how far the door should travel. If these are set incorrectly, the door may think it has hit an obstacle when it hasn’t. Refer to your manual to reset the travel limits, ensuring the door closes fully without excessive force.
What Causes Excessive Noise During Operation?
A quiet garage door is a happy garage door. If your Genie 1035 is grinding, squeaking, or rattling, it is signaling that maintenance is overdue. Ignoring these sounds can lead to premature wear on the motor and gears.
Lubrication is Key
Friction is the primary cause of noise. Over time, the metal-on-metal contact between rollers, hinges, and springs creates resistance.
- Use the Right Lubricant: Avoid WD-40 as it attracts dust and dries out. Instead, use a silicone-based lubricant or white lithium grease specifically designed for garage doors.
- Application Points: Apply a small amount to all roller bearings, hinge points, and the spring (if it is a torsion spring). Do not lubricate the plastic parts of the chain or screw drive unless specified by the manufacturer.
Inspect the Drive Mechanism
The Genie 1035 typically uses a screw-drive or chain-drive mechanism.
- For Screw Drives: Check if the drive screw is dirty or lacks lubrication. Clean it with a rag and apply fresh grease.
- For Chain Drives: Check the tension. A loose chain will slap against the rail, creating a loud rattling noise. Adjust the tension according to the manufacturer’s specifications, usually allowing for about half an inch of slack in the middle of the rail.
According to industry standards, regular maintenance can extend the life of your opener by up to 5 years. For more detailed technical specifications on garage door mechanisms, you can refer to general engineering principles on Wikipedia.
Why Is My Genie 1035 Motor Running But the Door Isn’t Moving?
If you hear the motor humming or running but the door remains stationary, the issue lies in the connection between the motor and the door itself. This is often a mechanical failure rather than an electrical one.
Check the Emergency Release Cord
Have you or a family member recently pulled the red emergency release cord? This disengages the opener from the door to allow manual operation. If the cord was pulled and not properly reset, the motor will run without moving the door.
- Fix: Pull the release cord toward the door to re-engage the trolley with the opener carriage. You should hear a click. Try operating the door with the remote again.
Inspect the Gears
Inside the motor head, there are plastic gears that transfer power from the motor to the drive shaft. Over time, these gears can strip or wear down, especially if the door is heavy or unbalanced. If you hear a grinding sound from inside the motor housing but no movement, the gears likely need replacement. This is a more advanced repair that may require a technician if you are not comfortable disassembling the motor unit.
How Can I Improve the Range of My Genie Remote?
Poor range can be frustrating, forcing you to wait outside until the door opens. Several factors can interfere with the radio frequency signal used by your Genie 1035.
Antenna Positioning
The antenna wire hanging from the motor unit is crucial for signal reception.
- Hang It Down: Ensure the antenna is hanging vertically and is not wrapped around the motor or tucked behind a metal box. Metal interferes with radio signals.
- Extend It: If the wire is coiled, gently straighten it out to maximize its surface area for receiving signals.
Reduce Interference
LED light bulbs, especially those used in garage door opener light kits, can emit electromagnetic interference that disrupts remote signals. If you recently changed to LED bulbs, try switching back to incandescent bulbs temporarily to see if the range improves. Additionally, large metal objects or neighboring Wi-Fi routers can cause interference. Repositioning the motor unit slightly or changing the frequency code (if your model supports rolling codes) can help.
FAQ Section
Q1: How do I reset my Genie 1035 garage door opener?
To reset the Genie 1035, locate the “Learn” button on the motor head. Press and hold it for about 10 seconds until the LED indicator turns off. This clears all programmed remotes and keypads. You will then need to reprogram all your devices by pressing the Learn button again and following the syncing steps for each remote.
Q2: Can I program a universal remote to my Genie 1035?
Yes, most universal remotes are compatible with Genie openers. You will need to set the dip switches on the universal remote to match the code settings of your Genie 1035, or use the auto-search function if it is a smart universal remote. Consult the universal remote’s manual for specific instructions on Genie compatibility.
Q3: Why does my garage door close halfway and then reverse?
This is typically a force setting issue. The opener senses resistance and thinks it has hit an object. Check for obstructions in the track first. If the track is clear, you may need to adjust the force sensitivity settings on the motor unit. Increase the force slightly using the adjustment screws, but be careful not to set it too high, as this compromises safety.
Q4: How often should I service my Genie garage door opener?
It is recommended to perform basic maintenance every six months. This includes lubricating moving parts, checking sensor alignment, and testing the auto-reverse safety feature. A professional inspection is advisable every 2–3 years to check internal components like gears and springs.
Q5: Is it safe to repair the Genie 1035 myself?
Basic troubleshooting like replacing batteries, cleaning sensors, and lubricating parts is safe for homeowners. However, repairs involving springs, high-voltage wiring, or internal gear replacement can be dangerous. If you are unsure, always consult a professional technician to avoid injury or further damage.
Q6: What is the lifespan of a Genie 1035 opener?
With proper maintenance, a Genie 1035 can last between 10 to 15 years. Factors such as frequency of use, climate conditions, and regular lubrication play significant roles in its longevity.
Conclusion
Troubleshooting your Genie Garage Door Opener Model 1035 doesn’t have to be a daunting task. By systematically checking power sources, safety sensors, and mechanical connections, you can resolve most common issues without professional help. Regular maintenance, such as lubrication and sensor cleaning, is the best way to prevent future breakdowns and ensure your garage door operates smoothly for years to come.
