Introduction
There is nothing quite as frustrating as pulling into your driveway after a long day, pressing your garage door keypad, and… nothing happens. The lights don’t flash, the motor doesn’t hum, and you are left standing in the dark. If this sounds familiar, you are likely dealing with a dead battery in your wireless entry system. Performing a Genie Garage Door Opener Keypad Battery Replacement is one of the most common maintenance tasks for homeowners, yet it is often overlooked until it causes an inconvenience.
The good news? This is a quick, inexpensive fix that requires no professional help. In this guide, we will walk you through everything you need to know to get your Genie keypad back online in under five minutes. We will cover battery types, step-by-step replacement instructions, troubleshooting tips, and how to keep your system secure. Let’s get your garage access restored.
Why Does My Genie Keypad Stop Working?
Before we dive into the replacement process, it is helpful to understand why these devices fail. Genie keypads, such as the popular GK-R or GKR-SC models, are designed for convenience and security. However, they rely on consistent power to transmit radio frequency (RF) signals to your garage door opener.
Most Genie wireless keypads use a 12-volt battery (often a specific type like the 23A or A23) or a 9-volt battery, depending on the model year. Over time, these batteries lose their charge due to:
- Natural Degradation: Even if unused, alkaline batteries degrade over 2–3 years.
- Frequency of Use: High-traffic households drain batteries faster.
- Temperature Extremes: Garages can get incredibly hot in summer and freezing in winter, which impacts battery chemistry and lifespan.
According to general consumer electronics standards, outdoor-rated batteries typically last between 1 to 2 years. If your keypad is older than that, a battery change is the first logical step before assuming hardware failure.
Identifying Your Genie Keypad Model
Not all Genie keypads use the same battery. Using the wrong battery can damage the device or simply not fit. Before purchasing replacements, identify your model. You can usually find the model number on the back of the keypad unit or inside the battery compartment.
| Common Genie Keypad Model | Typical Battery Type | Notes |
|---|---|---|
| GK-R / GKR-SC | 12V A23 (or 23A) | Most common modern wireless model. |
| GMK-R | 12V A23 | Similar to GK-R, often sold in kits. |
| Older Wired Models | N/A | Powered by the opener unit; no battery needed. |
| Genie Intellicode | 9-Volt | Some older wireless versions use standard 9V. |
Note: Always check the label inside your specific unit. If the label is faded, consult your owner’s manual or the Genie Company official support page for model-specific diagrams.
Step-by-Step: Genie Garage Door Opener Keypad Battery Replacement
Follow these precise steps to ensure a safe and successful replacement. This process applies to most wireless Genie keypads, including the GK-R series.
Step 1: Gather Your Tools
You will need:
- A new 12V A23 battery (or the specific type identified in your model). Tip: Buy high-quality brands like Energizer or Duracell for longer life.
- A small flathead screwdriver (optional, for prying open tight cases).
- A clean cloth.
Step 2: Open the Keypad Cover
Locate the seam on the side or bottom of the keypad. Most Genie keypads have a sliding cover or a snap-fit back panel.
- For Slide-Off Covers: Grip the bottom of the keypad and slide it downward firmly but gently.
- For Snap-Backs: Insert the flathead screwdriver into the small notch at the bottom and pry gently until the clip releases.

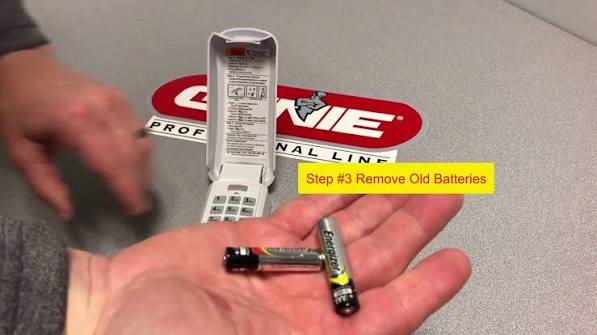

Step 3: Remove the Old Battery
Once the compartment is open, you will see the battery holder.
- Note the polarity (+ and – signs). The positive end (+) usually faces up or toward the front, but this varies by model.
- Gently pull the old battery out. If it is stuck, use the tip of your screwdriver to nudge it loose. Do not use metal tools to touch both terminals simultaneously, as this can cause a short circuit.
Step 4: Insert the New Battery
- Take your new 12V A23 battery.
- Align it according to the polarity markings inside the compartment.
- Press it firmly into place until it sits flush. Ensure there is no wobble.
Step 5: Reassemble and Test
- Snap the cover back on or slide it up until it clicks securely. Moisture protection is critical, so ensure the seal is tight.
- Walk to your garage door.
- Enter your PIN code followed by the “Enter” or “Send” button.
- Success Indicator: The garage door opener light should blink, and the motor should engage. If the light blinks but the door doesn’t move, check your opener’s lock feature.
Troubleshooting: What If It Still Doesn’t Work?
If you have completed the Genie Garage Door Opener Keypad Battery Replacement and the unit is still unresponsive, do not panic. Here are the most common issues:
1. The Battery Is Dead on Arrival
It is rare, but possible. Try a second new battery. Ensure the packaging was sealed and the expiration date is in the future.
2. Poor Contact Points
Corrosion can build up on the battery terminals over time.
- Fix: Dip a cotton swab in rubbing alcohol and gently clean the metal contacts inside the keypad. Let it dry completely before inserting the new battery.
3. The Keypad Needs Reprogramming
Sometimes, removing the battery resets the internal memory, especially in older models.
- Fix: You may need to re-sync the keypad with your opener. Refer to your opener’s manual for the “Learn Button” procedure. Typically, this involves pressing the learn button on the motor unit and then entering a new code on the keypad within 30 seconds.
4. Interference or Range Issues
If the keypad works only when you are standing directly next to it, the battery might be weak (even if new), or there could be RF interference from LED bulbs or Wi-Fi routers.
- Fix: Replace the bulb in your garage door opener with an incandescent bulb temporarily to test for interference. LED bulbs can sometimes emit frequencies that jam remote signals.
Best Practices for Longevity
To maximize the time between future replacements, consider these expert tips:
- Use Lithium Batteries: While slightly more expensive, lithium A23 batteries perform better in extreme temperatures compared to alkaline ones. Since garages are not climate-controlled, this is a worthy investment.
- Keep the Cover Sealed: Ensure the rubber gasket (if present) is intact. Moisture is the enemy of electronics.
- Check Annually: Make checking the keypad battery part of your annual home maintenance routine, perhaps when you change your smoke detector batteries.
FAQ Section
Q1: How often should I replace the battery in my Genie keypad?
A: On average, you should replace the battery every 12 to 24 months. However, if you notice the keypad requiring multiple presses to work, or if the range seems shorter, replace it immediately regardless of the timeline.
Q2: Can I use a rechargeable A23 battery?
A: It is generally not recommended. Rechargeable A23 batteries often have a lower voltage (1.2V per cell vs 1.5V for alkaline/lithium), which may result in insufficient power to transmit the signal reliably to the garage door opener. Stick to high-quality disposable lithium or alkaline batteries for consistent performance.
Q3: My keypad got wet during a storm. Will a new battery fix it?
A: Not necessarily. If water entered the circuit board, corrosion may have occurred. Try cleaning the internals with isopropyl alcohol and letting it dry for 24 hours. If it still fails, the internal components may be damaged, and you might need to purchase a replacement keypad.
Q4: Is it safe to leave the battery in during winter?
A: Yes, but cold temperatures reduce battery efficiency. If you live in an area with harsh winters, consider using lithium batteries, which handle cold weather much better than alkaline varieties. If the garage is detached and unheated, this is even more critical.
Q5: Can I reset my keypad without the manual?
A: Yes. For most Genie models, you can reset the code by holding down the “Program” or “Learn” button on the keypad for 10–15 seconds until the LED flashes. Then, enter your new desired PIN. However, for syncing with the opener, you will still need to access the motor unit’s learn button.
Q6: Where can I buy the correct battery?
A: A23 (12V) batteries are widely available at major retailers like Amazon, Walmart, Home Depot, and local hardware stores. Look for brands like Energizer, Duracell, or Sony. Avoid generic, no-name brands as they tend to leak and have shorter lifespans.
Conclusion
Dealing with a malfunctioning garage door is stressful, but performing a Genie Garage Door Opener Keypad Battery Replacement is a straightforward task that saves you the cost of a service call. By identifying the correct battery type, following the simple removal and insertion steps, and troubleshooting common issues like corrosion or interference, you can restore your home’s security and convenience in minutes.
Remember, prevention is key. Switching to lithium batteries and keeping the keypad sealed against moisture will extend the life of your device significantly.
