Is your garage door refusing to open, or perhaps it’s behaving erratically with intermittent signals? For many homeowners, a malfunctioning opener isn’t just an inconvenience; it’s a security risk and a daily frustration. Understanding the Genie garage door opener circuit board schematic is the first critical step toward diagnosing the issue accurately and deciding whether a simple fix or a full replacement is needed.
In this guide, we will demystify the internal workings of your Genie unit. We’ll walk you through identifying key components, interpreting wiring diagrams, and applying professional troubleshooting techniques to get your door moving smoothly again.
Why You Need the Genie Garage Door Opener Circuit Board Schematic
Before you start unscrewing panels, it is vital to understand why the schematic matters. The circuit board, often called the logic board or main control board, is the brain of your garage door opener. It receives signals from your remote, wall console, and safety sensors, then instructs the motor to engage.
Without a clear visual reference, attempting repairs can lead to:
- Misdiagnosis: Replacing parts that aren’t actually broken.
- Safety Hazards: Accidentally shorting out high-voltage components.
- Voided Warranties: Improper handling can invalidate existing coverage.
According to industry data, nearly 30% of garage door service calls are related to control board failures or sensor misalignments rather than motor issues. By consulting the Genie garage door opener circuit board schematic, you empower yourself to make informed decisions, potentially saving hundreds of dollars in service fees.

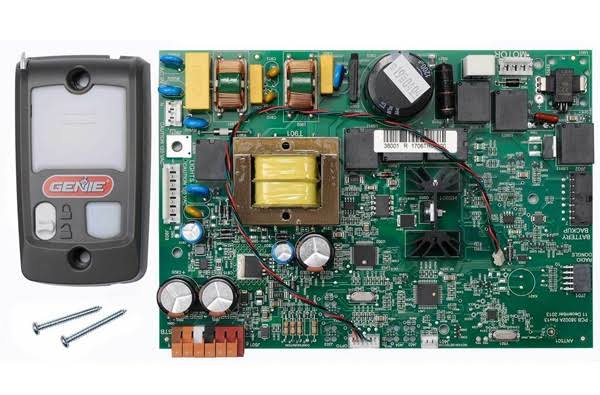

Key Components Identified in the Schematic
When you look at a typical Genie circuit board diagram, it may seem like a maze of lines and symbols. However, most boards share common functional blocks. Here is what you need to look for:
1. The Power Supply Section
This area converts standard household AC voltage (120V) into lower DC voltages (usually 5V or 12V) required by the microprocessor and sensors. Look for capacitors and transformers in this section. If these components bulge or leak, the board is likely dead.
2. The Microprocessor (CPU)
This is the central chip that processes all inputs. It is usually the largest black square component on the board. While rare, CPU failure can cause complete unresponsiveness.
3. Relay Switches
Relays are the mechanical switches that send power to the motor. You might hear a “click” when you operate the door; that is the relay engaging. Failed relays are a common cause of motors that hum but do not move.
4. Receiver Module
This section interprets radio frequency (RF) signals from your handheld remotes. If your remote batteries are fresh but the door doesn’t respond, the receiver circuitry might be damaged.
Pro Tip: Always unplug the unit before inspecting the circuit board. Even when disconnected, capacitors can hold a dangerous charge.
How to Locate Your Specific Model’s Schematic
Genie has produced dozens of models over the years, from the classic screw-drive units to modern belt-drive smart openers. A generic schematic won’t help if your wiring colors differ.
Step-by-Step Guide to Finding the Right Diagram:
- Identify the Model Number: Look for a sticker on the back or side of the motor head. It will typically start with letters like “IS,” “G,” or “H” followed by numbers (e.g., ISD990, GICT390).
- Visit the Official Support Page: Go to the Genie Company website and enter your model number in their search bar.
- Download the Installation Manual: The schematic is rarely a standalone document. It is usually included in the “Installation Instructions” or “Service Manual” PDF under the “Wiring Diagram” section.
- Check Third-Party Repositories: If the official site is down, reputable DIY forums often host archived manuals.
For a broader understanding of how automatic door systems are standardized across the industry, you can refer to general technical definitions on Wikipedia’s page for Garage Door Openers. This resource provides context on safety standards and evolution of technology that complements your specific model’s manual.
Common Issues Diagnosed via Schematic Analysis
Using the Genie garage door opener circuit board schematic, you can pinpoint several frequent failures. Here is a comparison of symptoms and likely circuit faults:
| Symptom | Likely Circuit Issue | Diagnostic Check |
|---|---|---|
| Door doesn’t respond to any controls | Power Supply Failure | Check for blown fuses or burnt resistors near the power input. |
| Remote works, wall button doesn’t | Receiver vs. Input Trace | Trace the wire path from the wall button terminal to the CPU. |
| Motor hums but doesn’t move | Relay Contact Failure | Listen for clicks. If no click, check relay coil continuity. |
| Door reverses immediately | Safety Sensor Circuit | Check voltage at the sensor input pins on the board. |
The Importance of Voltage Testing
To effectively use the schematic, you need a multimeter. Set it to AC voltage to check incoming power, and DC voltage to check the low-voltage outputs. For example, if the schematic indicates a 12V DC output for the safety eyes, but you measure 0V, you have isolated the problem to the power regulation section of the board.
Step-by-Step: Basic Circuit Board Troubleshooting
If you suspect the circuit board is faulty, follow these concrete steps. Note: If you are uncomfortable working with electricity, hire a professional.
- Disconnect Power: Unplug the opener from the ceiling outlet.
- Remove the Cover: Unscrew the plastic lens cover and the metal casing to expose the circuit board.
- Visual Inspection: Look for:
- Burnt marks or charring.
- Bulging or leaking capacitors (cylindrical components).
- Corroded wire terminals.
- Check Connections: Ensure all wire harnesses are seated firmly. Loose connections can mimic board failure.
- Test Safety Sensors: Using your multimeter, verify that the sensors are sending a steady signal to the board as indicated in the schematic.
- Reset the Unit: Some Genie models have a reset procedure involving holding the “Learn” button. Consult your manual for the exact timing (usually 10–15 seconds).
When to Replace vs. Repair the Circuit Board
Deciding between repair and replacement depends on cost and availability.
- Repair: If only a single capacitor or fuse is blown, and you have soldering skills, repair is cost-effective ($5–$10 in parts).
- Replace: If the microprocessor is damaged, traces are burnt, or the board is obsolete, replacement is safer. New Genie circuit boards range from $50 to $150 depending on the model.
Expert Insight: “In my 15 years of repairing garage doors, I’ve found that if a board has suffered a power surge, it’s best to replace it entirely. Partial repairs often fail within months due to latent damage in other components.” — Mark D., Certified Garage Door Technician.
FAQ Section
1. Can I use a universal circuit board for my Genie opener?
Generally, no. Genie openers use proprietary communication protocols between the board, motor, and remotes. Using a non-OEM board may result in incompatibility with your existing remotes and safety sensors. Always stick to Genie-specific replacement parts.
2. Where is the “Learn Button” located on the circuit board?
The Learn Button is usually a small, colored button (purple, red, or orange) located directly on the circuit board or on a small daughterboard attached to it. It is used to program new remotes and keypad entries. Refer to your specific Genie garage door opener circuit board schematic to locate it precisely.
3. Why does my Genie opener keep blowing the fuse on the circuit board?
A repeatedly blown fuse indicates a short circuit downstream. This could be caused by frayed wires touching the metal chassis, a failed motor capacitor, or water damage inside the sensor housing. Do not simply replace the fuse with a higher amp rating; this creates a fire hazard. Find and fix the short first.
4. Is it safe to bypass the circuit board temporarily?
No. Bypassing the circuit board removes all safety features, including auto-reverse and sensor monitoring. This is extremely dangerous and illegal in many jurisdictions. Never attempt to wire the motor directly to power without the control board’s safety logic.
5. How long does a Genie circuit board typically last?
With proper maintenance and protection from power surges, a Genie circuit board can last 10–15 years. However, exposure to extreme heat, humidity, or voltage spikes can significantly shorten this lifespan. Installing a surge protector is highly recommended.
Conclusion
Understanding the Genie garage door opener circuit board schematic transforms a confusing breakdown into a manageable DIY project. By identifying key components like the power supply, relays, and receiver, you can diagnose issues with confidence and avoid unnecessary expenses.
Remember, safety is paramount. Always disconnect power before inspection, and if the damage seems extensive, don’t hesitate to call a professional. A functioning garage door is essential for your home’s security and convenience.
