Is your garage door refusing to open, or does it behave erratically when you press the remote? A malfunctioning logic board is often the hidden culprit behind these frustrating issues. Understanding how to handle a Genie garage door opener circuit board replacement can save you hundreds of dollars in service fees and restore peace of mind to your daily routine.

Why Does My Genie Opener Need a Circuit Board Replacement?
The circuit board, often called the logic board or main control board, is the brain of your garage door opener. It processes signals from your remote, wall console, and safety sensors. When this component fails, the entire system halts.
According to industry data, electronic component failure accounts for nearly 30% of all garage door opener repairs after the first five years of use. For Genie models, power surges and age are the primary enemies. If your unit is over seven years old, the capacitors on the board may have degraded, leading to inconsistent performance.
Before you rush to buy a new part, it is crucial to confirm that the board is indeed the issue. Common symptoms include:
- The motor hums but the door doesn’t move.
- The lights flash but there is no response.
- The remote works intermittently.
- The unit fails to respond to the wall button.
If you experience these signs, a Genie garage door opener circuit board replacement is likely your best solution rather than replacing the entire unit.
How to Identify the Correct Replacement Part
Not all Genie openers use the same board. Genie produces various series, including the PowerMax, SilentMax, and ChainLift models. Using the wrong board can damage your motor or void any remaining warranty.
Step 1: Locate Your Model Number
Look for a sticker on the back or side of the motor head. It will list the model number (e.g., 2022, 3062, 4063) and the serial number. Write these down.
Step 2: Check the Board Type
Open the light cover of your opener. The circuit board is usually visible inside. Look for a part number printed directly on the green circuit board. It often starts with “38xxx” or “4xxxx.”
| Model Series | Common Board Types | Compatibility Note |
|---|---|---|
| PowerMax 1200/1500 | 38584R.S | Often interchangeable within series |
| SilentMax 1000 | 39025R.S | Check sensor wire color |
| ChainGlide 1000 | 39027R.S | Verify antenna length |
Note: Always cross-reference your specific model number with the manufacturer’s compatibility chart before purchasing.
For more detailed technical specifications on electrical components, you can refer to general engineering standards on Wikipedia.
Tools You Will Need for the Job
Safety and preparation are key to a successful repair. You do not need advanced engineering skills, but you do need the right tools. Gather the following items before you begin:
- Phillips-head screwdriver: For removing the light lens and housing screws.
- Flat-head screwdriver: Useful for prying off plastic clips gently.
- Needle-nose pliers: To disconnect small wire connectors.
- Anti-static wrist strap (Optional): To prevent static electricity from damaging the new board.
- Smartphone: Take photos of the wiring before you disconnect anything. This is your safety net.
Step-by-Step Installation Guide
Follow these instructions carefully. If you feel uncomfortable at any point, stop and consult a professional.
1. Disconnect Power
Unplug the garage door opener from the electrical outlet. If it is hardwired, turn off the circuit breaker. Never work on live electrical components. Wait at least 60 seconds after unplugging to allow any residual charge in the capacitors to dissipate.
2. Remove the Light Lens
Use your Phillips screwdriver to remove the two screws holding the plastic light lens in place. Set the screws aside in a safe container. Gently pull the lens down to expose the internal components.
3. Document the Wiring
Take clear, high-resolution photos of the current circuit board. Focus on where the wires connect. Label the wires if necessary using masking tape and a pen. Common connections include:
- Motor wires (usually white and black)
- Sensor wires (white and gray)
- Wall console wires (red and white)
- Antenna wire
4. Remove the Old Board
Locate the screws securing the circuit board to the chassis. Remove them carefully. Some boards are held by plastic clips; if so, gently pry them loose. Disconnect the wire harnesses by pulling them straight out. Do not pull on the wires themselves; pull on the plastic connectors.
5. Install the New Board

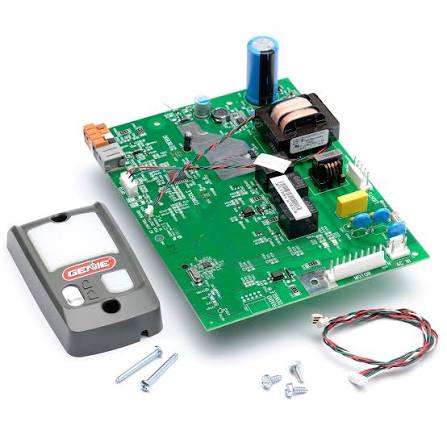

Place the new Genie garage door opener circuit board replacement into the chassis. Secure it with the screws you removed earlier. Reconnect the wire harnesses exactly as they were on the old board. Refer to your photos to ensure accuracy.
- Tip: Ensure the antenna wire is routed away from metal parts to maintain signal strength.
6. Reassemble and Test
Replace the light lens and secure the screws. Plug the unit back in or turn the circuit breaker on. The lights on the opener should flash, indicating it is in programming mode.
Programming Your Remotes and Keypads
After a board replacement, your opener will not recognize your existing remotes. You must reprogram them.
- Press the Learn button on the new circuit board. The LED indicator will light up.
- Within 30 seconds, press and hold the button on your remote control.
- Release the button when the opener’s lights flash or you hear a click.
- Repeat for all remotes and wireless keypads.
If you have a Genie Intellicode remote, ensure you are using the correct frequency (315 MHz or 390 MHz) as specified by your new board.
Troubleshooting Common Post-Replacement Issues
Even with a perfect installation, you might face minor hiccups. Here is how to address them:
- Door Reverses Immediately: Check the safety sensors. Ensure they are aligned and the lenses are clean. The LED on the receiving sensor should be solid green.
- Remote Has Short Range: Check the antenna wire. It should hang vertically and not be coiled up or touching metal.
- Opener Makes Noise but Doesn’t Move: The motor capacitor might be faulty, or the drive gear could be stripped. The circuit board controls the signal, but the motor handles the physical movement.
Cost Comparison: DIY vs. Professional Repair
Is it worth doing it yourself? Let’s look at the numbers.
| Service Type | Estimated Cost | Time Required | Warranty |
|---|---|---|---|
| DIY Replacement | $50 – $100 (Part only) | 1-2 Hours | 90 Days (Part) |
| Professional Repair | $250 – $400 | Same Day | 1 Year (Labor + Part) |
By choosing to perform the Genie garage door opener circuit board replacement yourself, you can save approximately 70% of the total cost. However, professional services offer labor warranties and immediate troubleshooting if things go wrong.
FAQ Section
Q1: Can I repair the old circuit board instead of replacing it?
A: While some technicians can replace individual capacitors or relays, it is generally not recommended for homeowners. Soldering requires specialized skills, and a improper repair can lead to fire hazards. Replacement is safer and more reliable.
Q2: Will replacing the circuit board reset my security codes?
A: Yes. A new board has no memory of your previous remotes. You must reprogram all devices, including remotes, keypads, and vehicle homelink systems.
Q3: How long does a Genie circuit board last?
A: On average, a circuit board lasts between 7 to 10 years. Factors like power surges, humidity, and temperature fluctuations can shorten this lifespan. Using a surge protector can extend its life.
Q4: What if the new board doesn’t fix the problem?
A: If the opener still fails to work, the issue might lie with the motor, the drive gear, or the safety sensors. Double-check your wiring connections. If problems persist, consult a certified Genie dealer.
Q5: Is it safe to work on the garage door opener alone?
A: Yes, as long as you disconnect the power source completely. Never attempt to adjust the springs or cables of the garage door itself during this process, as they are under high tension and dangerous.
Conclusion
Dealing with a broken garage door is stressful, but a Genie garage door opener circuit board replacement is a manageable DIY project for most homeowners. By identifying the correct part, following safety protocols, and carefully reconnecting your wiring, you can restore functionality to your home efficiently.
Remember, the key to success is patience and attention to detail. Take your time, document your steps, and enjoy the satisfaction of fixing it yourself. If you found this guide helpful, please share it on social media to help friends and family tackle their own garage door woes!
