Genie Garage Door Opener 1-1 4 Hp

Introduction

Is your garage door struggling to open smoothly, or are you simply looking for a cost-effective solution for a lightweight single-car garage? Many homeowners face the dilemma of choosing the right motor strength without overspending on unnecessary power. Understanding the capabilities of a Genie Garage Door Opener 1/4 HP can save you money while ensuring reliable performance for lighter doors. In this guide, we will break down exactly what this model can do, who it is best suited for, and how to keep it running like new.

What Does 1/4 HP Mean for Your Garage Door?

When shopping for garage door openers, horsepower (HP) is the primary metric for power. But what does 1/4 HP actually mean in real-world terms?

A 1/4 HP motor is the entry-level standard in the garage door industry. It is designed specifically for lightweight, single-car garage doors. Typically, these are doors made of thin aluminum, vinyl, or single-layer steel that do not have heavy insulation.

Why Horsepower Matters

The motor’s job is to lift the weight of the door against gravity. If the motor is too weak, it will strain, overheat, and fail prematurely. If it is too strong, you are paying for power you don’t need. The Genie Garage Door Opener 1/4 HP strikes a balance for specific use cases, offering enough torque to lift light doors efficiently without the bulk and cost of heavier models.

Expert Insight: According to industry standards, a 1/2 HP opener is recommended for most modern insulated doors. However, for older, non-insulated single-layer doors, a 1/4 HP unit is often sufficient and more energy-efficient.

Is the Genie 1/4 HP Right for Your Door Type?

Not every garage door is compatible with a 1/4 HP motor. Using an underpowered opener on a heavy door is a common mistake that leads to early system failure. Here is a breakdown to help you decide.

Ideal Candidates for 1/4 HP

• Single-Car Garages: Doors that are 7 to 8 feet wide.
• Non-Insulated Doors: Single-layer steel or aluminum doors.
• Wooden Doors (Lightweight): Thin, unpainted wood panels without heavy hardware.
• Low-Usage Homes: Garages used primarily for storage rather than daily vehicle entry.

Who Should Avoid 1/4 HP?

• Double-Car Garages: These doors are simply too wide and heavy.
• Insulated Doors: Polyurethane or polystyrene insulation adds significant weight.
• Wood Carriage-Style Doors: These are aesthetically pleasing but extremely heavy.
• High-Frequency Use: If you open and close the door 5+ times a day, a stronger motor (1/2 HP or 3/4 HP) will last longer.

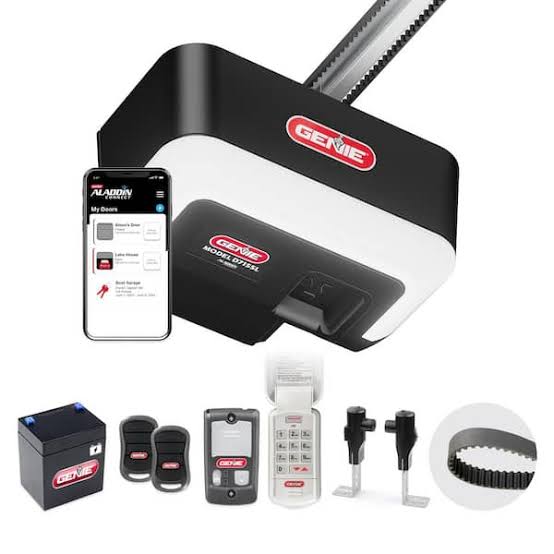

Key Features of Genie 1/4 HP Models

Genie has been a trusted name in home automation for decades. Their 1/4 HP models, such as those in the Genie ChainLift or basic screw-drive series, come with several user-friendly features.

1. Durability and Build Quality

Even at the lower horsepower range, Genie uses high-quality metals in their gears and chains. This ensures that while the motor is small, the mechanical components can withstand years of operation.

2. Safety Standards

All modern Genie openers comply with federal safety regulations. This includes:

• Auto-Reverse Mechanism: The door stops and reverses if it hits an obstacle.
• Photo-Eye Sensors: Beams that detect objects in the door’s path.
• Manual Release Cord: Allows you to open the door manually during a power outage.

3. Quiet Operation Options

While chain drives are traditional, some Genie 1/4 HP models offer belt-drive options. Belt drives are significantly quieter than chain drives, making them ideal if your garage is attached to your living space. For more details on garage door mechanics and safety standards, you can refer to Wikipedia’s overview of garage door openers.

Step-by-Step Installation Guide

Installing a Genie Garage Door Opener 1/4 HP can be a DIY project if you are handy. However, always prioritize safety. If you are unsure, hiring a professional is recommended.

Tools Needed:

• Ladder
• Wrench set
• Drill and bits
• Level
• Assistant (highly recommended)

Step 1: Prepare the Garage Door

Ensure your garage door is balanced. Disconnect the opener if one exists. Manually lift the door halfway; it should stay in place. If it falls or rises, the springs are unbalanced. Do not proceed until a professional adjusts the springs, as they are under high tension and dangerous.

Step 2: Assemble the Rail

Lay out the Genie rail on the floor. Attach the motor head to the rail according to the manual. For a 1/4 HP model, the rail is usually shorter and lighter, making this step easier.

Step 3: Install the Header Bracket

Mount the header bracket above the center of the garage door opening. Use a level to ensure it is straight. Secure it with lag screws into the wooden header.

Step 4: Mount the Motor Unit

With the help of an assistant, lift the motor unit and attach it to the ceiling joists using angle irons. Ensure the unit is secure and does not wobble.

Step 5: Connect the Arm

Attach the curved arm to the door bracket and the straight arm to the trolley on the rail. Tighten all bolts securely.

Step 6: Electrical Connections

Plug in the unit. Install the safety sensors on either side of the door, about 6 inches off the ground. Ensure the wires are tucked away safely.

Step 7: Programming and Testing

Follow the manual to program your remote controls. Test the auto-reverse feature by placing a 2×4 block of wood on the floor in the door’s path. The door should reverse upon contact.

Maintenance Tips for Longevity

A Genie Garage Door Opener 1/4 HP requires regular maintenance to perform optimally. Since it operates near its maximum capacity for lighter doors, care is essential.

• Lubricate Moving Parts: Every 6 months, apply a silicone-based lubricant to the chain or screw drive. Avoid WD-40 as it attracts dust.
• Tighten Hardware: Vibration can loosen bolts over time. Check the mounting brackets and rail connections annually.
• Clean Safety Eyes: Wipe the sensor lenses with a soft cloth to ensure they detect obstacles accurately.
• Check Balance: Periodically test the door’s balance. An unbalanced door puts extra strain on the 1/4 HP motor.

FAQ Section

Q1: Can I upgrade my Genie 1/4 HP motor to a higher horsepower later?

A: Yes, you can. However, you may need to replace the rail and mounting hardware if the new motor has different dimensions. It is often more cost-effective to buy the correct horsepower initially if you plan to upgrade your door in the future.

Q2: Why is my Genie 1/4 HP opener making a grinding noise?

A: Grinding noises usually indicate worn gears or lack of lubrication. If the motor runs but the door doesn’t move, the plastic drive gear may be stripped. This is a common wear item and can be replaced with a repair kit.

Q3: Is a 1/4 HP opener energy efficient?

A: Yes. Because the motor is smaller, it consumes less electricity during operation compared to 1/2 HP or 3/4 HP models. It also generates less heat, which can be beneficial in warmer climates.

Q4: How long does a Genie 1/4 HP opener last?

A: With proper maintenance, a Genie opener can last between 10 to 15 years. Factors such as frequency of use and climate conditions will affect lifespan.

Q5: Can I use a smart home hub with my Genie 1/4 HP model?

A: Most modern Genie openers are compatible with Aladdin Connect or other smart hubs. If your model is older, you can purchase a universal smart garage controller that attaches to the wall button terminals.

Conclusion

Choosing the right garage door opener is about matching power to your specific needs. The Genie Garage Door Opener 1/4 HP is an excellent, budget-friendly choice for homeowners with lightweight, single-car, non-insulated doors. It offers reliability, safety, and ease of use without the premium price tag of heavier models.

By understanding your door’s weight and maintaining your opener regularly, you can enjoy smooth operation for years to come. If you found this guide helpful, please share it on social media to help friends and family make informed decisions about their home improvements!
