Is your garage door reversing before it hits the floor or struggling to open smoothly? You are not alone, and the good news is that a proper Genie belt drive garage door opener adjustment can easily solve this frustrating issue. Let’s walk through this simple, step-by-step process together so you can get your door running quietly and safely in no time.

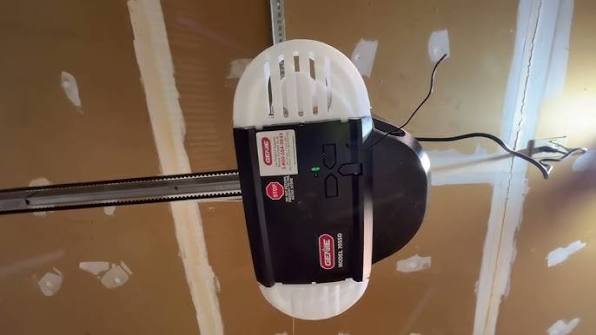

Genie Belt Drive Garage Door Opener Adjustment: Why It Matters
Genie belt drive openers, such as the popular SilentMax and StealthLift models, are highly regarded for their whisper-quiet operation and smooth performance. However, like any mechanical system, they require occasional tuning. Seasonal temperature changes, humidity fluctuations, and normal daily wear can cause your garage door’s weight distribution and track friction to shift slightly.
When this happens, the opener’s pre-programmed travel limits and force controls may no longer match the physical reality of your door. Ignoring these misalignments can lead to excessive motor strain, premature wear on the rubber belt, and, most importantly, compromised safety features. According to industry maintenance data, performing routine adjustments and inspections can extend the functional lifespan of a garage door opener by up to 30%.
Common Symptoms That Indicate You Need an Adjustment
Before diving into the tools and steps, it is helpful to confirm that an adjustment is actually what your system needs. Look out for these common red flags:
- Premature Reversal: The door starts to close but reverses direction before touching the floor.
- Incomplete Opening: The door stops too early, leaving insufficient clearance for your vehicle.
- Motor Strain: You hear a humming sound, but the door barely moves or moves very sluggishly.
- Excessive Force: The door slams into the floor or the top header with a loud thud.
If you notice any of these signs, it is time to recalibrate your system.
Tools and Safety Precautions Before You Begin
Safety must always be your top priority when working with garage door systems. These doors are heavy, and the springs are under extreme tension.
Tools You Will Need:
- A sturdy, well-positioned stepladder.
- A standard 2×4 piece of wood (for the mandatory safety reverse test).
- Your Genie wall-mounted control console.
Critical Safety Rules:
- Keep Clear: Always keep your hands, fingers, and clothing clear of moving parts, rollers, and hinges during operation.
- Check Door Balance: Disconnect the opener from the door using the emergency release cord. Manually lift the door halfway. If it does not stay in place or feels excessively heavy, your springs are unbalanced. Do not proceed with opener adjustments; call a licensed garage door technician immediately.
- Clear the Area: Ensure no people, pets, or objects are in the path of the door before initiating any test cycles.
Step-by-Step Travel Limit Adjustment
Travel limits tell the opener’s motor exactly when to stop moving the door in the “up” (open) and “down” (closed) directions. Modern Genie models (including IntelliG, TriloG, and SilentMax series) use an intuitive button interface on the powerhead.
Note: You have a strict 30-second time window to complete each step below before the system times out and cancels the programming.
Setting the Down (Closed) Limit
- Start with the garage door in the fully open position.
- Press and hold the Down (-) button on the powerhead for exactly 2 seconds. The long LED indicator will light up solid blue.
- Release the Down (-) button. The long LED will now begin flashing blue, indicating it is ready to record.
- Press and hold the Down (-) button again to lower the door. You can tap the Up (+) or Down (-) buttons for precise micro-adjustments.
- Once the door rests firmly on the floor and slightly compresses the bottom rubber weather seal, press and release the Program/Set button. Both the long and round LEDs will blink and turn off. Your down travel limit is now successfully saved.
Setting the Up (Open) Limit
- Start with the garage door in the fully closed position.
- Press and hold the Up (+) button for 2 seconds until the long LED lights up solid blue.
- Release the Up (+) button. The round LED will now start flashing.
- Press and hold the Up (+) button to raise the door. Watch carefully to ensure the traveling carriage does not crash into the motor powerhead, which could cause severe damage.
- When the door is fully open and the bottom edge clears your tallest vehicle by at least 7 feet, press and release the Program/Set button. The LEDs will blink and turn off, locking in the up limit.
How to Calibrate Force and Speed Settings
Many homeowners ask, “How do I adjust the force on my Genie garage door opener?” The answer is simpler than you might think.
Unlike older chain-drive models that required manual screwdriver tweaks to potentiometer dials, modern Genie belt drive openers are equipped with GenieSense™ technology. This advanced system continuously monitors the force required to move the door.
To calibrate the force and speed limits, you do not need to press any special button combinations. Simply open and close the garage door one complete cycle using the Genie wall-mounted console. During this uninterrupted cycle, the motor actively learns the resistance of your specific door and automatically adjusts the force to the optimal, safest level.
Crucial Detail: Do not interrupt this cycle by pressing the button a second time. If the cycle is interrupted, the calibration will fail, and you will need to start over.
Travel Limits vs. Force Settings: A Quick Comparison
To help you understand how these two systems work together, here is a quick reference guide:
| Feature | Primary Purpose | Adjustment Frequency | How It Is Adjusted |
|---|---|---|---|
| Travel Limits | Tells the motor exactly where to stop moving up or down. | 1–2 times per year, or after seasonal shifts. | Manual programming via powerhead buttons. |
| Force Control | Determines how much power is needed to move the door safely. | Automatically calibrates; check annually. | Auto-learned via a single, complete wall console cycle. |
Expert Tip: The Mandatory Contact Reverse Test
Adjusting your opener is only half the battle; verifying its safety features is non-negotiable. The contact reverse test ensures that the door will not crush an object (or a person) in its path.
How to perform the test:
- Place a 2×4 piece of wood flat on the garage floor, directly under the center of the closed door.
- Activate the door to close using the wall console.
- Observe the door as it descends. It must stop and immediately reverse direction upon contacting the wood.
If the door pushes the wood or fails to reverse, the force settings are dangerously high, or the safety system is malfunctioning. According to established safety standards for automatic residential doors, entrapment protection mechanisms are critical to prevent severe injury or property damage
store.geniecompany.com(https://en.wikipedia.org/wiki/Garage_door_opener). If your door fails this test, disconnect the opener immediately and consult a professional.
Frequently Asked Questions (FAQ)
Q1: How often should I perform a Genie belt drive garage door opener adjustment?
A: It is highly recommended to check your travel limits and force settings at least twice a year. Spring and fall are ideal times, as temperature shifts can affect door balance, track friction, and the tension of the rubber belt.
Q2: Why does my Genie garage door reverse before hitting the floor?
A: This usually indicates that the down travel limit is set too high, or the force setting is too low. The opener mistakenly believes it has hit an obstruction. Recalibrating the down limit and running a full force-learning cycle via the wall console typically resolves this issue.
Q3: Can I manually adjust the force settings with a screwdriver?
A: On most modern Genie belt drive models (like the SilentMax or StealthLift), force is auto-calibrated via the wall console. While some legacy models feature manual dials, the auto-calibration method is significantly more precise, reliable, and safer for modern systems.
Q4: What does it mean if the LED light on my Genie opener is flashing blue?
A: A flashing blue LED indicates that the opener is in “programming mode” and is waiting for you to set a travel limit or pair a remote control. If it flashes continuously without any user input, it may indicate a misaligned safety eye sensor or a locked control panel.
Q5: Will adjusting the opener fix a noisy garage door?
A: Not necessarily. While belt drives are inherently quiet, noise often originates from the door hardware itself, not the opener. Lubricating the rollers, hinges, and springs with a dedicated silicone-based or lithium garage door lubricant can significantly reduce squeaking and grinding noises.
Conclusion
Performing a Genie belt drive garage door opener adjustment is a straightforward, highly rewarding DIY task. By taking just a few minutes to calibrate your travel limits and verify your force settings, you ensure smoother operation, protect your motor from unnecessary strain, and, most importantly, keep your family safe.
Remember to always prioritize safety, test your door’s balance, and never skip the contact reverse test.
