Garage Door Opener Genie Wiring Bad Capacitor

Introduction

Is your Genie garage door opener making a loud humming noise but refusing to move? Or perhaps it struggles to lift the door halfway before stopping abruptly? You are not alone; this is one of the most common frustrations for homeowners across the US. Often, the culprit isn’t a broken motor, but a simple electrical failure involving the Garage Door Opener Genie Wiring Bad Capacitor connection.

In this guide, we will walk you through exactly how to identify if your capacitor has failed, how to check your wiring for loose connections, and how to replace these components safely. By understanding the root cause, you can save hundreds of dollars on service calls and get your garage back to normal operation in under an hour.

Why Is My Genie Garage Door Humming But Not Moving?

Before you start unscrewing panels, it is crucial to understand why this happens. The humming sound is the electric motor trying to start but failing to generate enough torque to turn the gears. This specific symptom is the hallmark of a bad start capacitor or a wiring interruption.

The capacitor acts like a small battery that provides the initial jolt of energy needed to get the motor spinning. When it fails, the motor gets “stuck” in its starting phase. According to general electrical engineering principles, a single-phase AC motor (like those in garage openers) cannot start without this phase-shift component.

If you ignore this issue, you risk burning out the motor windings completely, turning a $20 repair into a $300 replacement. Therefore, addressing the Garage Door Opener Genie Wiring Bad Capacitor issue early is vital for the longevity of your unit.

How to Identify a Bad Capacitor in Genie Openers

Not every electrical issue is a capacitor problem. To ensure you are fixing the right part, look for these physical and operational signs.

Physical Inspection Signs

1. Bulging or Swelling: A healthy capacitor is flat on top. If the top looks domed or swollen, it has failed internally due to pressure buildup.
2. Leaking Fluid: Check for any oily residue around the base of the capacitor. This indicates the internal dielectric fluid has leaked out.
3. Burn Marks: Look for scorch marks on the capacitor body or the wires connected to it.

Operational Symptoms

• Humming Noise: As mentioned, a loud hum without movement is the primary indicator.
• Intermittent Operation: The door works sometimes but fails at other times, often depending on the temperature (capacitors degrade faster in heat).
• Slow Movement: The door opens or closes significantly slower than usual.

Pro Tip: If your Genie opener is less than 5 years old, check the warranty first. Many Genie models come with extended warranties on the motor and electronics.

Step-by-Step: Checking Genie Opener Wiring Connections

Before replacing the capacitor, you must rule out loose or corroded wiring. A loose wire can mimic the symptoms of a bad capacitor by interrupting the power flow.

Safety First: Always unplug the garage door opener from the power outlet before touching any internal components. If it is hardwired, turn off the circuit breaker.

Tools You Will Need:

• Phillips head screwdriver
• Flathead screwdriver
• Multimeter (optional, for advanced testing)
• Needle-nose pliers

The Inspection Process

1. Remove the Light Cover: Locate the plastic cover that houses the light bulbs. Unsnap or unscrew it to reveal the logic board and motor assembly.

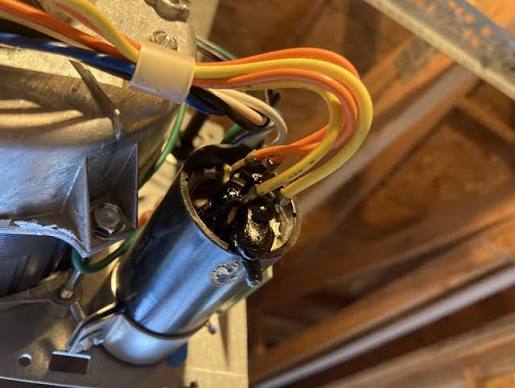

2. Locate the Capacitor: On most Genie models (such as the Aladdin Connect or ChainLift series), the capacitor is a black or silver cylindrical component attached to the side of the motor or near the logic board. It will have two or three wires connected to it.
3. Inspect Wire Terminals: Gently tug on the wires connected to the capacitor. They should be snug. If a wire pulls out easily, the terminal is loose.
4. Check for Corrosion: Look for green or white crusty buildup on the metal terminals. This corrosion increases resistance and prevents proper current flow.
5. Trace the Wiring: Follow the wires from the capacitor to the main board. Ensure there are no pinched wires or cuts in the insulation.

If you find loose wires, reconnect them firmly. If you find corrosion, clean the terminals with a small amount of electrical contact cleaner or fine-grit sandpaper.

How to Replace a Bad Capacitor on a Genie Opener

If your wiring is intact but the capacitor shows signs of damage, it is time for a replacement. This is a straightforward DIY task if you follow safety protocols.

Step 1: Purchase the Correct Replacement

You cannot use just any capacitor. You must match two key specifications found on the label of your old capacitor:

• Microfarads (µF): This measures the capacitance. It must match exactly (e.g., 10µF, 15µF).
• Voltage (VAC): The voltage rating must be equal to or higher than the original (e.g., if the old one is 250V, you can use 250V or 370V, but not lower).

Note: For accurate parts, refer to the Genie Company official support page or consult your model’s manual.

Step 2: Discharge the Old Capacitor

Even when unplugged, capacitors can hold a dangerous electrical charge.

• Use an insulated screwdriver to short the two terminals of the old capacitor together. You may see a small spark; this is normal and means the charge is dissipated.

Step 3: Remove the Old Capacitor

• Take a photo of the wiring configuration with your phone. This is crucial for reassembly.
• Use needle-nose pliers to disconnect the wires from the old capacitor terminals.
• Unscrew or unclip the capacitor from its mounting bracket.

Step 4: Install the New Capacitor

• Mount the new capacitor in the same position.
• Reconnect the wires exactly as they were in your photo. Polarity usually does not matter for AC run capacitors, but consistency is key.
• Ensure the connections are tight. Loose connections here will cause arcing and future failure.

Step 5: Test the Unit

• Replace the light cover.
• Plug the unit back in or restore power at the breaker.
• Press the wall button. The door should operate smoothly without humming.

Capacitor vs. Logic Board: Diagnosing the Real Issue

Sometimes, replacing the capacitor doesn’t fix the problem. How do you know if the issue is deeper?

If you replace the capacitor and the door still does not move, the issue may lie with the logic board or the motor windings themselves. In such cases, professional assistance is recommended.

FAQ Section

1. Can I run my Genie garage door without a capacitor?

No. The capacitor is essential for starting the motor. Without it, the motor will only hum and overheat, potentially causing permanent damage to the windings. Never bypass the capacitor.

2. How long do Genie garage door capacitors last?

Typically, capacitors last between 5 to 10 years. However, extreme temperatures in the garage (both hot and cold) can shorten their lifespan. If your garage is uninsulated, expect to replace the capacitor more frequently.

3. Is it safe to test a capacitor with a multimeter?

Yes, but only if you know how to use a multimeter safely. You must set the meter to capacitance mode (if available) and ensure the capacitor is fully discharged before testing. If you are unsure, visual inspection for bulging is a safer first step.

4. Why does my Genie opener work after it rains?

Moisture can temporarily change the electrical conductivity of corroded connections. If your door works better in humid conditions, it likely indicates corroded wiring or a failing capacitor that is sensitive to temperature and humidity changes.

5. What size capacitor do I need for a Genie ChainLift 800?

Capacitor sizes vary by production batch. You must check the label on your specific unit. Common sizes for Genie openers range from 10µF to 20µF. Always verify the label before purchasing.

Conclusion

Dealing with a Garage Door Opener Genie Wiring Bad Capacitor issue doesn’t have to be a headache. By understanding the signs of a failing capacitor—such as humming noises and sluggish movement—you can diagnose the problem quickly. Remember, checking your wiring for loose connections is a critical first step before spending money on new parts.

Replacing a capacitor is a cost-effective DIY project that can extend the life of your opener by years. However, always prioritize safety: disconnect power before starting and discharge the old capacitor properly.
