Genie Max garage door openers are popular for their reliability and convenience, but like any electrical device, they can experience issues—especially when internal components like fuses blow out. If you’re wondering “Where are the fuses on Genie Max garage door openers?”, you’re not alone. Many homeowners face problems with unresponsive openers and don’t realize that a simple fuse replacement could be the fix.
This detailed guide explains exactly where the fuses are located, how to check them, and what to do if they need replacing. We’ll also discuss other common electrical issues, how to prevent them, and the role fuses play in the operation of your garage door opener.
Understanding Genie Max Garage Door Openers
Before diving into fuse locations, it’s important to understand the basic structure of the Genie Max garage door opener system. These openers come with advanced safety sensors, remote operation, LED lighting, and circuit protection.
Key Components:
- Motor unit (mounted to the ceiling)
- Control board (the brain of the system)
- Wiring terminals
- Transformer
- Safety sensors
- Fuse(s) for overload protection
What Is a Fuse and Why Is It Important?
A fuse is a small, replaceable safety component that protects the opener from overcurrent or short circuits. When there’s an electrical surge or fault, the fuse burns out instead of allowing the excess current to damage the control board or transformer. This saves you from having to replace expensive components.
Common Signs a Fuse Has Blown on Your Genie Max Opener
Knowing when to check your fuse starts with recognizing the symptoms:
- Wall console and remote do not respond
- Garage door motor is completely dead
- No lights on the opener unit
- Burnt smell or visible soot near the opener
- Circuit breaker keeps tripping
If you’ve confirmed that your house circuit breaker is not the issue, it’s time to check the fuses.
Where Are The Fuses On Genie Max Garage Door Openers?

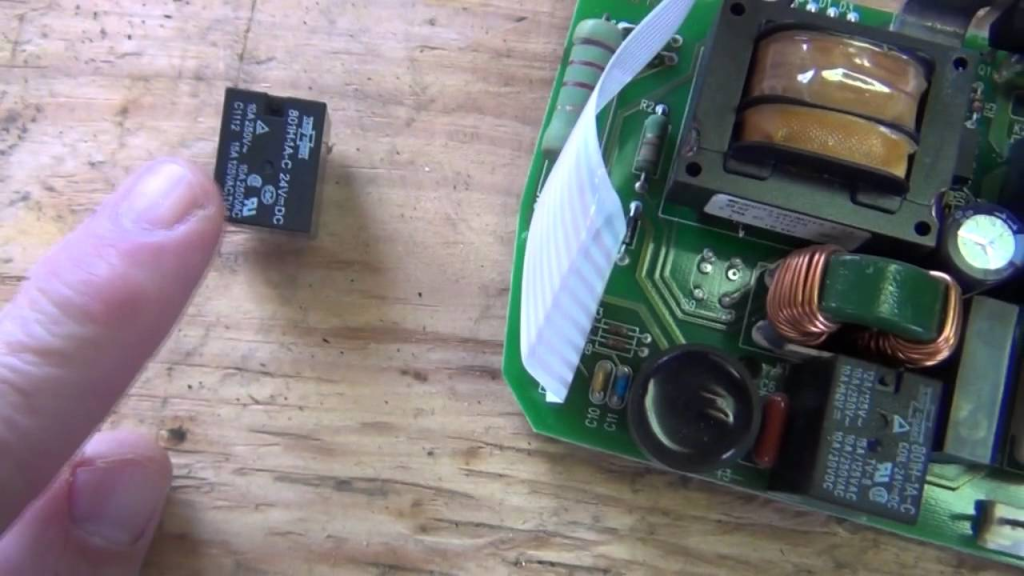

On most Genie Max models, the fuse is located on the main control board, which sits inside the opener housing. You’ll need to safely remove the outer cover of the unit to access the board.
Step-by-Step Instructions to Locate the Fuse:
- Unplug the opener from the power source before doing any inspection.
- Use a Phillips screwdriver to remove the screws on the bottom or back panel of the unit.
- Gently remove the plastic housing to reveal the circuit board.
- Look for a small cylindrical or glass tube fuse—usually located near the transformer or power input terminals.
- Some Genie Max units may have a fuse holder that clips into place, while others may have soldered fuses on the board.
Fuse Type and Rating
Most Genie garage door openers, including Max models, use a 3A–5A 250V fuse, typically of the slow-blow variety. This allows short bursts of high current (like during motor startup) without blowing the fuse unnecessarily.
How to Test If the Fuse Is Blown
Once you’ve located the fuse, here’s how to test it:
Visual Inspection:
- If the filament inside the glass tube is broken or blackened, the fuse is blown.
Using a Multimeter:
- Set your multimeter to continuity or resistance (Ω) mode.
- Touch the probes to both ends of the fuse.
- If the multimeter beeps or shows near-zero resistance, the fuse is good.
- No beep or very high resistance = blown fuse.
Replacing the Fuse
Once you’ve confirmed the fuse is bad:
- Remove it gently using fuse pullers or needle-nose pliers.
- Replace with an identical fuse (match the amp and voltage rating).
- Carefully reassemble the cover and screws.
- Plug the unit back in and test the opener.
Where to Buy Replacement Fuses
- Hardware stores like Home Depot or Lowe’s
- Online retailers such as Amazon or eReplacementParts
- Genie official website or authorized dealers
Why Do Fuses Blow in Genie Max Garage Door Openers?
Here are some common causes of blown fuses in garage door openers:
- Power Surges – Often caused by storms or faulty wiring.
- Short Circuits – Faulty wiring, moisture, or damaged components can cause shorts.
- Worn Motor – An aging or overloaded motor may draw too much current.
- Improper Installation – Loose wires or mismatched voltage input can blow fuses.
Preventing Future Fuse Failures
To avoid repeated fuse issues:
- Install a surge protector for your garage power source.
- Regularly inspect wiring and terminals for wear or corrosion.
- Don’t overload the opener with a heavy or jammed door.
- Keep the garage dry to prevent moisture damage.
Alternative Issues That Mimic Blown Fuses
Sometimes, problems that appear to be fuse-related may stem from other sources:
- Bad Wall Console: Try operating with the remote.
- Loose Wiring: Check terminal connections on the board.
- Faulty Logic Board: If a new fuse doesn’t fix it, the board itself may be dead.
- Sensor Malfunction: Misaligned safety sensors can cause the opener to shut down.
When to Call a Professional
While replacing a fuse is DIY-friendly, you should call a technician if:
- You’re uncomfortable handling electronics
- The fuse blows repeatedly
- There’s visible damage on the board
- You notice a burning smell or smoke from the unit
FAQs About Genie Max Garage Door Opener Fuses
Q: Are all Genie openers the same when it comes to fuse location?
No. While many Genie Max models have similar layouts, older or budget units may have the fuse in a different spot—or not at all.
Q: Can I use a higher amp fuse for longer life?
Absolutely not. Using a higher-rated fuse than specified can damage your opener and even cause a fire hazard.
Q: My opener still doesn’t work after replacing the fuse. What now?
You may have a faulty circuit board, transformer, or wiring issue. Further diagnostics or replacement may be required.
Summary: Solving Power Issues by Knowing Where the Fuse Is
If you’ve been scratching your head asking, “Where are the fuses on Genie Max garage door openers?”, now you know that these tiny components are vital for safe operation. Located inside the opener housing on the control board, the fuse protects the entire system from overload and electrical damage. Learning how to identify, test, and replace them can save you from unnecessary service calls and prolong the life of your garage door opener.
Whether you’re troubleshooting a dead motor, burned-out lights, or an unresponsive wall button, checking the fuse is always a great place to start.
