Introduction
Is your garage door making a screeching noise or refusing to open smoothly? A worn-out drive belt is often the silent culprit behind these frustrating issues, leaving you stuck in your driveway. Finding the correct replacement belt for Genie garage door opener models doesn’t have to be a guessing game; with the right guidance, you can restore quiet, reliable operation to your home in under an hour.
In this guide, we will walk you through everything you need to know about identifying, selecting, and installing the perfect belt for your specific Genie model. Whether you own a classic ChainLift or a modern SilentMax, we have the technical details and practical tips to help you get the job done right the first time.
Why Do Genie Garage Door Belts Fail?
Before rushing to buy a new part, it is helpful to understand why belts wear out. Genie garage door openers, particularly the belt-drive models like the SilentMax and PowerMax series, are designed for quiet operation. However, the rubber or polyurethane belts are subject to constant tension, temperature fluctuations, and friction.
According to industry standards, a typical garage door opener belt lasts between 7 to 10 years, depending on usage frequency. If you live in an area with extreme heat or humidity, the material may degrade faster, becoming brittle or stretching out. When a belt stretches, it loses tension, causing the motor to spin without effectively moving the door trolley. This slippage not only stops your door from working but can also strain the motor gears, leading to more expensive repairs down the line.
How to Identify Your Genie Model Number
One of the most common mistakes homeowners make is buying a universal belt that doesn’t fit their specific track length or motor housing. Genie produces several distinct series, and the belt requirements vary significantly between them.
To find your model number:
- Look at the back or side of the motor unit (the box hanging from your ceiling).
- Locate the sticker or label. It usually contains a model number starting with “3053,” “3064,” “4064,” or similar digits.
- Note the serial number as well, as this can help determine the manufacturing date.
Common Genie Series include:
- SilentMax: Known for ultra-quiet belt drive systems.
- PowerMax: A heavy-duty option often used for larger doors.
- ChainLift: While primarily chain-driven, some hybrid models use belts for secondary tensioning.
If you cannot find the label, measure the length of your existing belt. Most Genie belts come in standard lengths such as 10 feet, 12 feet, or 14 feet. Measuring the old belt from end to end (excluding the metal clips) is the most accurate way to ensure a perfect fit.
Choosing the Right Replacement Belt
Not all belts are created equal. When searching for a replacement belt for Genie garage door opener, you will encounter two main types: OEM (Original Equipment Manufacturer) parts and aftermarket alternatives.
OEM vs. Aftermarket Belts
| Feature | OEM Genie Belts | Aftermarket Belts |
|---|---|---|
| Fit | Guaranteed exact fit | May require adjustment |
| Durability | High-grade rubber/polyurethane | Varies by brand |
| Price | Higher ($30–$50) | Lower ($15–$25) |
| Warranty | Covered by Genie warranty | Limited or no warranty |
| Noise Level | Optimized for silence | May be slightly louder |
For most homeowners, we recommend sticking with OEM parts. While they cost more upfront, they are engineered specifically to handle the torque and speed of Genie motors. Using a generic belt might save money initially, but if it stretches or snaps within a year, you will end up spending more on labor and repeated replacements.
You can verify compatibility by checking the Genie Company official support page or consulting your owner’s manual. For broader technical definitions of garage door components, you can also refer to general mechanical resources like Wikipedia’s entry on garage door openers to understand the mechanics involved.
Step-by-Step Installation Guide
Replacing the belt is a manageable DIY project if you follow safety protocols. You will need a ladder, a wrench set, and possibly a pair of pliers.
Safety First: Always unplug the garage door opener before starting any work. Never attempt to adjust springs or cables unless you are a trained professional, as they are under extreme tension and can cause serious injury.
Step 1: Release Tension
Locate the tensioner pulley on the motor unit. Use your wrench to loosen the nut holding the tensioner. This will slacken the old belt, allowing you to slip it off the pulleys easily.
Step 2: Remove the Old Belt
Carefully remove the old belt from the trolley (the part that moves along the rail) and the motor pulley. Inspect the pulleys for any debris or damage. If the pulleys are cracked or worn, replace them now to prevent premature wear on your new belt.

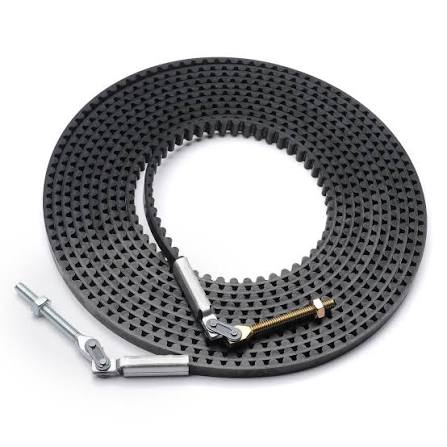

Step 3: Install the New Belt
Thread the new replacement belt for Genie garage door opener through the trolley mechanism first. Ensure the teeth of the belt align correctly with the grooves in the trolley. Then, loop the belt around the motor pulley and the idler pulley.
Step 4: Adjust Tension
This is the most critical step. Tighten the tensioner nut gradually. The belt should be tight enough that it does not slip, but loose enough that you can press it down about half an inch with moderate finger pressure. Over-tightening can damage the motor bearings, while under-tightening will cause slipping.
Step 5: Test the System
Plug the opener back in. Operate the door using the wall button. Listen for any unusual noises. If the door moves smoothly and quietly, your installation was successful. If it jerks or makes a grinding sound, re-check the tension and alignment.
Common Troubleshooting Tips
Even with a new belt, issues can arise. Here are quick fixes for common problems:
- Door Reverses Before Closing: This is usually a sensor issue, not a belt problem. Check that the safety eyes near the floor are aligned and clean.
- Motor Runs but Door Doesn’t Move: The belt may still be too loose. Increase the tension slightly.
- Squeaking Noise: Apply a small amount of silicone-based lubricant to the rail and rollers. Avoid using WD-40, as it can attract dust and gum up the mechanism.
FAQ Section
Q1: Can I use a car timing belt as a replacement?
A: No. Car timing belts are designed for high-temperature engine environments and have different tooth profiles. They will not fit Genie pulleys correctly and can cause severe damage to your opener. Always use a belt specified for garage door openers.
Q2: How often should I inspect my garage door belt?
A: We recommend a visual inspection every 6 months. Look for cracks, fraying, or signs of stretching. Regular maintenance can extend the life of your opener and prevent sudden failures.
Q3: Is it better to replace the belt or the whole opener?
A: If your opener is less than 10 years old and the motor is still strong, replacing the belt is cost-effective. However, if the motor is noisy, struggles to lift the door, or is older than 15 years, investing in a new opener with modern safety features might be a better long-term solution.
Q4: Why does my new belt stretch after a few weeks?
A: New belts often undergo a “break-in” period where they settle into the pulleys. However, excessive stretching usually indicates incorrect tension during installation or a misaligned trolley. Re-adjust the tensioner after the first week of use.
Q5: Can I lubricate the belt to make it last longer?
A: Generally, no. Most Genie belts are made of self-lubricating materials. Adding oil or grease can attract dirt and debris, which acts as an abrasive and wears down the belt faster. Keep the belt clean and dry.
Q6: What tools do I absolutely need for this repair?
A: At a minimum, you need a sturdy ladder, a socket wrench set (usually 7/16″ or 1/2″), and a pair of needle-nose pliers. Having a helper to hold the ladder or the door can also make the process safer and easier.
Conclusion
Replacing your replacement belt for Genie garage door opener is a straightforward task that can save you hundreds of dollars in service calls. By identifying your model correctly, choosing a high-quality OEM belt, and following proper tensioning techniques, you can ensure your garage door operates smoothly and quietly for years to come.
Remember, regular maintenance is key to longevity. Take a few minutes twice a year to check your belt’s condition and listen for any changes in sound. If you found this guide helpful, please share it with your neighbors or on social media to help others keep their homes running smoothly. Stay safe, and happy repairing!
