If you’re trying to figure out how to put dual wires on a Genie garage door opener, you’re not alone. Many homeowners run into confusion when installing or replacing wall consoles, safety sensors, or push buttons that require dual-wire configurations.
This guide will walk you through everything you need to know — from understanding the Genie wiring system to safely connecting dual wires step-by-step. Whether you’re upgrading your system or troubleshooting a faulty connection, this comprehensive tutorial will help you do it correctly and confidently.
Understanding Dual Wires on a Genie Garage Door Opener
Before you start wiring, it’s important to understand what dual wires do and why they’re used in Genie garage door opener systems.
Genie systems typically rely on low-voltage dual-conductor wires to connect key components, such as:
- Wall console or push button (for manual control)
- Safety sensors (for obstacle detection)
- Powerhead connections (at the motor unit)
Each device usually uses two wires per connection, and in dual wiring setups, these wires are paired and routed to their respective terminals on the opener.
Why Dual Wires Are Important
Dual wires ensure reliable communication between your opener’s control board and external accessories. Here’s why they matter:
| Feature | Purpose |
|---|---|
| Power | Carries low-voltage current from the opener to sensors/buttons |
| Signal | Sends open/close commands and safety signals |
| Safety | Prevents false activations and reverses the door when an object is detected |
When wired incorrectly, you may experience problems such as blinking sensor lights, an unresponsive wall button, or the door reversing mid-operation.
Tools and Materials You’ll Need
Before you start putting dual wires on your Genie garage door opener, prepare these items:
- Phillips screwdriver
- Wire stripper or cutter
- 18–22 gauge low-voltage wire (two-conductor)
- Electrical tape or wire connectors
- Ladder
- Safety gloves
- Flashlight
Having these tools ready ensures a smooth, safe installation process.
Step-by-Step Guide: Putting Dual Wires On A Genie Garage Door Opener
Let’s go through the complete process carefully.
Step 1: Disconnect Power for Safety
Before working on any wiring, unplug the Genie opener from the power outlet. This prevents accidental activation and electrical shock.
⚠️ Never attempt to modify wiring while the unit is powered on.
Step 2: Locate the Terminal Connections
On most Genie openers, the wiring terminals are located at the back or underside of the motor housing, often labeled as:
- “P/B” (for Push Button)
- “SENS” or “SAFE-T” (for Safety Sensors)
- “COM” or “COMMON” (for shared wire connections)
If you’re unsure, consult your model’s user manual or look for embossed markings near the terminal strip.
Step 3: Prepare the Dual Wires
Using your wire stripper:
- Cut the wire ends to clean, even lengths.
- Strip about ½ inch (1.2 cm) of insulation from each end.
- Twist the exposed copper strands tightly for a secure connection.
If you’re connecting two sets of wires (for example, wall console + safety sensors), ensure you clearly identify which pair goes to which terminal.

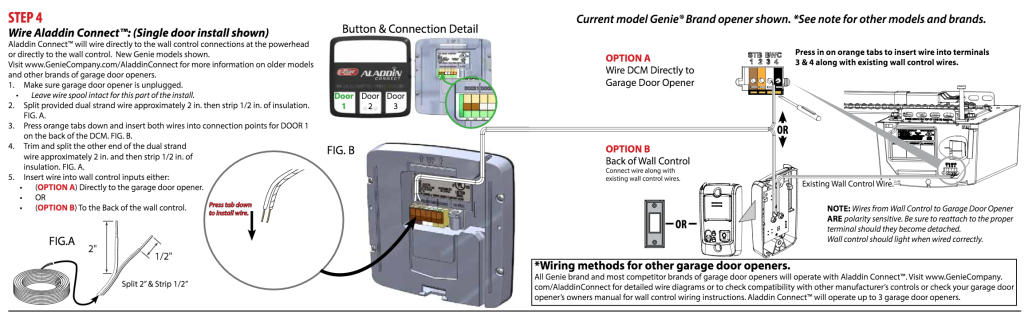

Step 4: Connect the Dual Wires to Terminals
Now it’s time to attach the wires to the opener. Follow this wiring configuration:
| Device | Wire 1 | Wire 2 | Terminal Label |
|---|---|---|---|
| Wall Console | White | White with black stripe | P/B & COM |
| Safety Sensors | White | White with black stripe | SENS & COM |
Connection Steps:
- Insert both white wires (signal) into the COM terminal.
- Insert the white/black stripe wires (power) into their designated P/B or SENS terminal.
- Tighten each terminal screw securely — avoid over-tightening to prevent wire breakage.
This configuration allows dual devices (console + sensors) to share a common terminal, ensuring proper communication.
Step 5: Secure and Route the Wires Properly
Use cable clips or staples to neatly secure the wires along the wall and ceiling. Avoid:
- Pinching wires under panels.
- Running them near metal objects or high-voltage cables.
- Leaving slack that could get caught in moving parts.
Neat wiring not only improves appearance but also ensures consistent signal strength.
Step 6: Reconnect Power and Test the System
Plug the opener back into the outlet and test the system:
- Press the wall button – the door should move smoothly.
- Wave an object in front of the safety sensors – the door should stop or reverse.
- Check indicator lights on the sensors – both should glow solid (not blinking).
If everything functions correctly, your dual wire installation is complete.
Troubleshooting Common Dual Wiring Issues
Even with correct wiring, issues can occur. Here’s how to handle them:
| Symptom | Possible Cause | Fix |
|---|---|---|
| Wall button not responding | Loose wire or wrong terminal | Recheck terminal screws |
| Red sensor light blinking | Misalignment or reversed polarity | Realign sensors and switch wires |
| Door won’t move | Shorted wire or power loss | Inspect wires for cuts or pinching |
| Door reverses instantly | Obstruction detected | Clean or adjust sensors |
If the problem persists, refer to your Genie manual or contact Genie customer support for model-specific guidance.
Wiring Dual Wires for Older vs. Newer Genie Models
| Feature | Older Models | Newer Models (Intellicode Series) |
|---|---|---|
| Terminals | Screw-type blocks | Push-in connectors |
| Wiring | Separate circuits | Combined dual-wire system |
| Compatibility | May need adapter | Fully compatible with dual wires |
| Programming | Manual setup | Auto-learn function |
💡 Tip: If you’re working with an older Genie model, you may need to use jumper wires or adapters to combine circuits correctly.
Expert Insight
According to home improvement experts at Garage Door Safety Association (GDSA), over 35% of garage door malfunctions stem from wiring errors — especially with dual-wire configurations.
“People often assume their opener is broken when it’s just a simple miswire,” says certified technician Mark Houston. “Always double-check terminals before replacing any parts.”
This highlights how proper wiring can save both time and money.
Safety Tips for Wiring a Genie Garage Door Opener
- Always disconnect power before touching wires.
- Use UL-approved low-voltage wire for safety.
- Never twist bare wires together without connectors.
- Label each wire if multiple pairs are used.
- Test sensors thoroughly before finalizing the setup.
These precautions help prevent electric shorts, false signals, and costly repairs.
Frequently Asked Questions (FAQ)
1. Can I connect multiple wall buttons using dual wires?
Yes. You can wire multiple wall consoles in parallel using the same dual-wire setup, as long as they share the common (COM) terminal.
2. What gauge wire should I use for Genie openers?
Use 18–22 AWG low-voltage, two-conductor wire. It’s ideal for long runs and ensures reliable communication.
3. Why are my safety sensors not lighting up after wiring?
Check the polarity — swapping the wires (white vs. white/black) between terminals can fix the issue.
4. Can I extend the wire length?
Yes, but avoid exceeding 30 feet (9 meters) without proper wire thickness. Longer runs may cause signal loss.
5. My wall console light blinks — what does it mean?
This typically indicates reversed wiring or a communication failure. Recheck that both white and white/black wires are correctly placed in their terminals.
6. Is it dangerous to wire Genie openers myself?
Not at all, as long as you follow safety rules and unplug the opener first. Genie systems operate on low voltage, making them safe for DIY installation.
Conclusion
Connecting dual wires on a Genie garage door opener may look complicated at first, but with the right steps, it’s a straightforward process anyone can handle. Proper wiring ensures smooth communication between your sensors, wall console, and opener — preventing common problems like blinking lights or non-responsive controls.
