Introduction
If you own an older garage door opener, you might struggle with one simple but frustrating issue: how to locate the program button on an old Genie garage door opener.
Many Genie users face this when trying to connect a new remote, keypad, or vehicle HomeLink system. The challenge? Older Genie models hide the program or “learn” button in less obvious places. This guide will help you quickly identify and use that button — even if your opener is decades old — so you can get your garage working again smoothly.
What Is the Program Button on a Genie Garage Door Opener?
The program button (sometimes called the learn button) is the key to pairing your garage door opener with a remote control or wireless keypad.
When pressed, it activates the receiver inside the opener to “listen” for a new signal from a remote. After pairing, your opener will recognize that signal and operate the door accordingly.
On modern Genie models, the program button is easy to spot — usually a colored button near LED indicators. But on older units, the location varies depending on the design and model.
Where to Locate the Program Button on an Old Genie Garage Door Opener
Let’s explore where you’ll typically find it on different generations of Genie openers.
1. Under the Light Lens Cover
Most Genie screw-drive and chain-drive models from the 1990s to early 2000s have the program button under the light lens cover.
Steps to find it:
- Unplug the opener for safety.
- Gently remove the plastic light lens cover on the motor housing.
- Look for a small square button near the antenna wire or behind the bulb socket.
👉 It may be red, green, or purple, depending on the model.
2. Behind the Motor Head or Panel
Some older Genie units, especially the Excelerator or ProMax series, have the learn button behind a small flip-up panel on the motor head.
Check near the wiring terminals or next to the travel limit adjustment screws.
3. On the Ceiling-Mounted Receiver Box
For very old Genie models (pre-1993), the radio receiver was a separate box mounted near the opener or ceiling outlet.
- The program or set button is located on that receiver box.
- You may see an LED light next to it that flashes when in program mode.
4. Inside Wall Console (Rare Models)
A few Genie systems from the early 1990s include the program function in the wall-mounted control console rather than on the motor unit. Look for a “Learn Code” or “Program” button near the main switch.
Identifying Button Color and Function
The button color can indicate what generation your Genie opener belongs to.
| Button Color | Model Generation | Compatible Remote Frequency |
|---|---|---|
| Red / Orange | 1995–2002 | 390 MHz remotes |
| Green | 2002–2011 | 390 MHz rolling code |
| Purple | 2011–2016 | 315/390 MHz Intellicode 2 |
| Black | Pre-1995 (separate receiver) | 390 MHz fixed code |
👉 Intellicode refers to Genie’s security technology that changes the remote code each time it’s used, preventing unauthorized access.

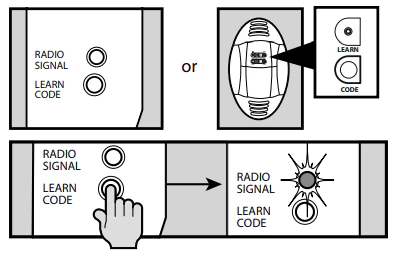

How to Program Your Remote Once You Locate the Button
Once you’ve found the program button, pairing your remote is simple.
Step-by-Step Instructions:
- Press and release the Program (or Learn) button.
- The LED light should blink or stay solid (depending on model).
- Within 30 seconds, press the button on your remote control once.
- The LED will flash or turn off, confirming successful programming.
- Test the remote by pressing it once more to open or close the door.
If it doesn’t work, repeat the process — some models require holding the remote button until the LED changes.
How to Reset or Clear the Program Memory
If your remote isn’t responding or you want to delete old remotes:
- Hold the Program/Learn button for 10 seconds.
- The LED will blink rapidly, then turn off — this means all stored codes are cleared.
- Reprogram your remotes as needed.
This is particularly helpful when moving into a new home or replacing lost remotes for security reasons.
Common Issues When Locating or Programming the Button
| Problem | Likely Cause | Solution |
|---|---|---|
| Can’t find the button | Covered by lens or hidden under panel | Remove light cover or check receiver box |
| Button doesn’t light up | Power supply issue | Check outlet or circuit breaker |
| Remote doesn’t pair | Wrong frequency | Verify remote compatibility |
| Light blinks but door doesn’t move | Travel limits misaligned | Adjust up/down limit controls |
| No LED light at all | Faulty logic board | Contact a Genie technician |
Expert Tips from Garage Door Technicians
- Label your opener model number. You’ll find it on the motor housing or owner’s manual — this helps identify the correct programming method.
- Clean dust and cobwebs inside the housing — debris can block the LED or button.
- Use compatible remotes only. Old Genie models require specific frequencies. Mixing types won’t work.
- Replace weak batteries in remotes before troubleshooting further.
According to HomeAdvisor’s 2024 report, nearly 40% of garage door malfunctions are related to outdated programming or receiver issues — both easily fixed by resetting or reprogramming.
Genie Models and Program Button Locations
| Genie Model | Button Location | Button Color |
|---|---|---|
| Genie Screw Drive (1998–2005) | Under light cover | Red or green |
| Genie ProMax / CM8600 | Behind rear panel | Green |
| Genie Intellicode (2006–2015) | Under lens near antenna | Purple |
| Genie BlueMax / Overhead | External receiver box | Black |
| Genie Excelerator | Side of motor housing | Green |
Safety Note
Always unplug your opener before touching any internal parts. Avoid using metal tools near electrical components. If you’re unsure or uncomfortable working with wiring, contact a certified Genie technician for inspection and assistance.
For a technical overview of garage door mechanisms, you can visit Garage door opener – Wikipedia.
FAQ: Locate Program Button on Old Genie Garage Door Opener
1. Where is the program button on an older Genie model?
It’s usually located under the light lens cover or on the rear panel of the motor housing. In very old models, it may be on a separate receiver box near the ceiling.
2. What color is the program or learn button?
Depending on the model, it could be red, green, purple, or black. The color indicates the radio frequency type used.
3. Can I use a new Genie remote with an old opener?
Yes — but it must match your opener’s frequency and Intellicode version. Some remotes are dual-frequency for compatibility.
4. Why doesn’t my remote pair even after pressing the button?
You might be pressing too slowly, using an incompatible remote, or dealing with a weak signal. Try again within 30 seconds of pressing the program button.
5. How can I tell if my opener supports Intellicode?
If the unit has a green or purple program button, it likely supports Intellicode security.
6. What should I do if there’s no program button at all?
Your opener may predate integrated receivers. Look for a separate receiver box near the power cord — that’s where the button will be.
Conclusion
Finding the program button on an old Genie garage door opener doesn’t have to be a guessing game. Once you know where to look — under the lens, behind a panel, or on an external receiver — programming your remote becomes quick and stress-free.
Remember: older Genie systems still work perfectly when properly maintained. So if this guide helped you locate and program your opener, share it on social media or bookmark it for the next time you help a neighbor with their garage door setup!
