Introduction
If your garage door doesn’t open or close fully, the problem may lie with the Limit Toggle Switch on a Genie Garage Door Opener. This small but crucial part controls how far the door travels before stopping. Many homeowners struggle with misaligned limits, causing the door to stop short or reverse unexpectedly. In this guide, we’ll explain how to identify, adjust, and maintain your limit toggle switch safely — even if you’re new to garage door systems.

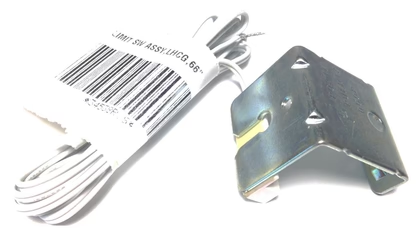

What Is the Limit Toggle Switch on a Genie Garage Door Opener?
The limit toggle switch is a small adjustment mechanism on your Genie opener’s motor unit. It determines the maximum open and close positions of your garage door.
Think of it like the “brain” that tells your door when to stop moving.
- The “Up” limit switch stops the door when it’s fully open.
- The “Down” limit switch stops it when it’s fully closed.
When these limits are set incorrectly, the door may:
- Reverse before closing completely.
- Slam against the floor.
- Stay partially open, creating security risks.
According to Genie Company technical documentation (2024), incorrect limit adjustment is the most common cause of operational faults in residential openers.
Why the Limit Toggle Switch Matters
Proper limit adjustment ensures:
- Safety — prevents the door from crushing objects or damaging the motor.
- Energy Efficiency — a fully closed door seals out drafts.
- Longevity — correct operation reduces stress on the opener mechanism.
In short, a well-tuned limit switch keeps your entire garage system healthy.
How to Locate the Limit Toggle Switch
Most Genie garage door openers have the limit toggle switch near the motor head, often beside two labeled screws or dials. Look for these markings:
- “Up” or “Open Limit”
- “Down” or “Close Limit”
👉 Tip: Unplug your opener before touching any adjustment controls to avoid electrical hazards.
Step-by-Step: How to Adjust the Limit Toggle Switch
Follow these steps carefully:
1. Identify the Current Problem
Observe the door’s movement:
- Does it not close completely? → The Down Limit is set too low.
- Does it reverse before opening fully? → The Up Limit is too short.
2. Disconnect Power
Unplug the opener or switch off the breaker for safety.
3. Find the Adjustment Screws
Locate the two limit screws or knobs (usually plastic or metal).
- Turning clockwise typically increases travel distance.
- Turning counterclockwise decreases it.
4. Make Small Adjustments
Start with ¼ turn adjustments only.
Example: If the door doesn’t close all the way, turn the Down Limit screw clockwise ¼ turn.
5. Test the Door
Reconnect power and run a full open/close cycle.
Repeat minor adjustments until the door stops perfectly at both limits.
6. Verify Safety Reverse System
Ensure the door automatically reverses when meeting resistance — an important safety feature required by UL 325 standards.
Common Signs You Need to Adjust the Limit Switch
| Symptom | Possible Cause | Solution |
|---|---|---|
| Door reverses before closing | Down limit too low | Turn Down Limit clockwise |
| Door hits the floor then reverses | Down limit too high | Turn Down Limit counterclockwise |
| Door stops short of opening | Up limit too short | Turn Up Limit clockwise |
| Door won’t move at all | Wiring or motor issue | Check circuit and reconnect power |
Expert Tips for Perfect Adjustment
- Mark your starting point. Use a marker so you can undo incorrect changes.
- Never force the door manually while adjusting.
- Check the travel chain/belt for tension — misalignment affects limits.
- Clean and lubricate the track every 6 months to maintain smooth motion.
According to the International Door Association (IDA), routine maintenance can extend opener life by up to 40%.
Troubleshooting: When Adjustments Don’t Work
If adjustments don’t fix the issue, consider:
- Worn limit switches (replaceable parts).
- Loose wiring to the limit mechanism.
- Defective logic board (common in older Genie models).
For older systems (before 2010), replacing the control board or upgrading to a newer model may be more cost-effective.
For general background on how electrical limit switches function, see Limit switch – Wikipedia.
Maintenance Checklist for Genie Openers
✅ Test open/close limits monthly.
✅ Clean photo-eye sensors.
✅ Inspect chain/belt tension.
✅ Lubricate hinges and rollers.
✅ Tighten mounting brackets.
Performing these simple checks can prevent costly repairs and ensure your opener works smoothly all year.
FAQ: Limit Toggle Switch on a Genie Garage Door Opener
1. What happens if the limit toggle switch is set incorrectly?
Your garage door may stop too early, reverse suddenly, or fail to close completely. It can also strain the motor, leading to premature failure.
2. Can I adjust the limit switch myself?
Yes — Genie designs their systems for homeowner adjustment. Just remember to unplug the opener and make tiny ¼-turn changes each time.
3. How often should I check the limits?
Every six months or anytime you notice the door behaving differently. Seasonal temperature changes can slightly alter door movement.
4. My door still won’t close after adjusting — why?
You may have a sensor alignment problem. Clean the photo-eye lenses and ensure both sides have steady lights.
5. What’s the difference between a limit switch and a force control?
The limit switch sets travel distance, while force control determines how much pressure the door uses. Both are critical for safe operation.
6. When should I call a professional?
If the door jerks, grinds, or the motor hums without moving, contact a certified Genie technician. Electrical faults require expert handling.
Conclusion
The Limit Toggle Switch on a Genie Garage Door Opener plays a key role in ensuring smooth, safe, and complete door movement. With proper adjustment and regular maintenance, you can prevent most common opener issues — saving time and repair costs.
If this guide helped you fix your garage door, consider sharing it on social media or bookmarking it for future reference. Keeping your Genie opener well-tuned means a safer, quieter home for years to come.
