Install A Safety Switch On Genie Garage Door Opener

Introduction

Garage doors are convenient, but without proper safety measures, they can become dangerous. If you own a Genie garage door opener, adding a safety switch (or safety sensor) ensures your door stops and reverses when something blocks its path.

Install A Safety Switch On Genie Garage Door Opener

In this guide, you’ll learn how to install a safety switch on Genie garage door opener — step by step — so your system runs safely and complies with modern safety standards.


Why You Need a Safety Switch on a Genie Garage Door Opener

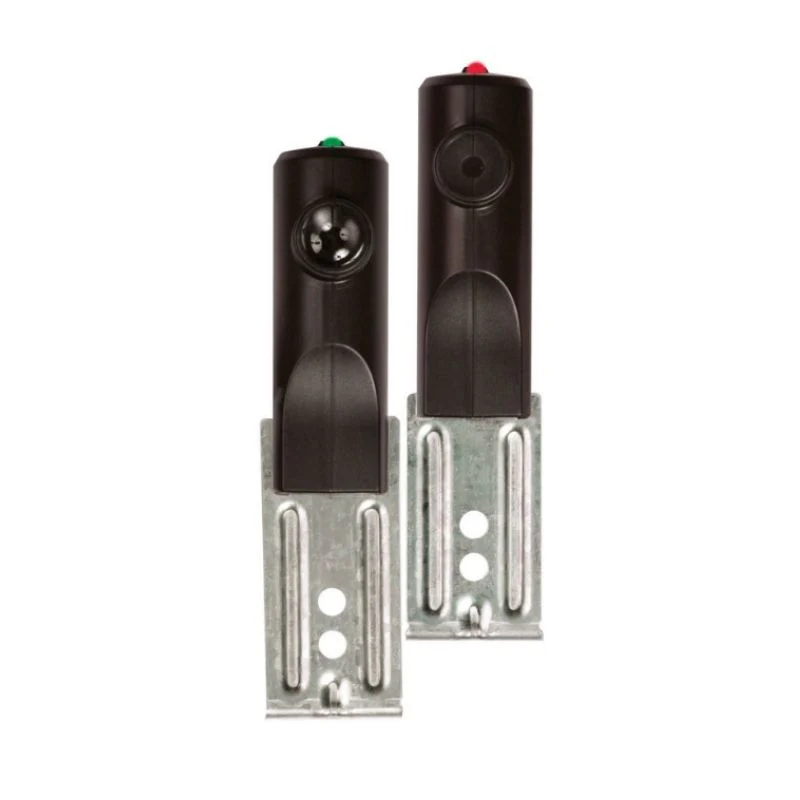

Modern garage door openers rely on infrared safety sensors, also known as photo-eye sensors, to prevent accidents. The Genie safety switch sends an invisible infrared beam across the base of the garage door. If the beam is broken — say, by a pet or child — the door instantly reverses.

Key Reasons to Install a Safety Switch

  • Prevent injuries: Stops the door if movement is detected underneath.
  • Protect your property: Avoids damage to cars or objects in the door’s path.
  • Meet federal safety standards: The U.S. Consumer Product Safety Commission requires automatic reversal systems on garage doors.
  • Extend motor life: Reduces strain and unnecessary reversals due to obstructions.

💡 According to the U.S. Consumer Product Safety Commission (CPSC), garage door accidents cause over 20,000 injuries annually. Installing a safety switch helps reduce that risk dramatically.


Tools and Materials You’ll Need

Before you begin, gather these items:

ItemPurpose
Safety switch kit (Genie compatible)Main component
Screwdriver (Phillips & flathead)Mounting and adjustments
Drill with bitsFor sensor bracket installation
Measuring tapeTo ensure alignment
Level toolFor even beam alignment
Wire strippersFor connecting wires
Zip tiesTo secure wires neatly
LadderAccess to opener unit

How to Install a Safety Switch on Genie Garage Door Opener

Let’s walk through the installation process. This guide assumes you’re adding Genie’s photo-eye safety sensors to a compatible Genie opener system.


Step 1: Disconnect the Power

Before any electrical work, unplug your Genie opener or switch off power from the breaker. Safety first.


Step 2: Locate the Sensor Mounting Points

Look for the bottom sides of your garage door tracks — that’s where the safety sensors go. Each sensor faces the other directly, approximately 5–6 inches from the floor.

Mark the position for both the sending and receiving sensors.


Step 3: Mount the Sensor Brackets

  1. Use the mounting brackets from your Genie kit.
  2. Attach them securely to the door track using bolts or screws.
  3. Ensure they are level — a misaligned beam won’t function properly.

🧰 Pro Tip: Use a bubble level to make sure the sensors align perfectly across the door opening.


Step 4: Install the Sensors

  1. Attach each sensor to its bracket.
  2. Adjust the angle slightly to point both lenses directly toward one another.
  3. Hand-tighten the screws — you’ll fine-tune later after testing.

Step 5: Run and Connect the Wires

  • Route the wires from each sensor along the door track up to the Genie opener motor head.
  • Use zip ties to keep the wiring tidy and away from moving parts.
  • Strip the wire ends (about ½ inch).
  • Connect to the screw terminals labeled “SENSOR” or “SAFE T BEAM” on your opener unit.

Refer to your Genie owner’s manual for terminal polarity (usually white and white/black wires).


Step 6: Power On and Test

Plug the unit back in.

  1. Try closing the garage door.
  2. While the door moves down, wave your hand or an object through the sensor beam.
  3. The door should immediately reverse direction.

If it doesn’t, realign the sensors — both LEDs should stay solid when properly connected.


Troubleshooting Common Issues

ProblemPossible CauseSolution
LED light blinkingMisalignment or dirt on sensorClean lens and realign
Door won’t closeBroken wire or obstructionCheck wiring and clear pathway
One sensor offLoose connection or power issueVerify terminal wiring
Door reverses randomlySunlight interferenceAdjust sensor angle or install visor shields

Expert Tip: Maintaining Your Genie Safety Sensors

To keep your system reliable:

  • Clean lenses monthly with a dry microfiber cloth.
  • Check wiring annually for wear or corrosion.
  • Realign sensors if the door tracks are bumped or moved.
  • Avoid painting near sensors — overspray can block the infrared beam.

🔗 For background information on how garage door safety sensors work, see Wikipedia’s article on garage door openers.


Benefits of Installing a Safety Switch on Genie Garage Door Opener

FeatureBenefit
Infrared beam detectionPrevents injury and damage
Automatic door reversalMeets U.S. safety standards
DIY installationSaves professional labor costs
Universal compatibilityWorks with most Genie models
Peace of mindProtects your family and vehicles

FAQ: Install A Safety Switch On Genie Garage Door Opener

1. Can I install the safety switch myself?

Yes. Most Genie models support DIY installation, and the process usually takes 30–60 minutes with basic tools.

2. What if my opener doesn’t have sensor ports?

Older Genie models (pre-1993) may lack sensor terminals. In that case, upgrading to a modern Genie opener is recommended for safety compliance.

3. Do safety sensors work in the dark?

Absolutely. Genie’s infrared beam operates in both light and dark conditions — ambient lighting doesn’t affect functionality.

4. What happens if the sensors get dirty?

If dust or debris blocks the lenses, the beam breaks and prevents the door from closing. Cleaning them monthly solves the issue.

5. How can I tell if my sensors are aligned?

Both sensor LEDs should glow solid. A blinking light indicates misalignment. Adjust until both remain steady.

6. Are replacement parts easy to find?

Yes. You can buy Genie Safe-T-Beam® kits online or at most hardware stores like Home Depot or Lowe’s.


Conclusion

Installing a safety switch on your Genie garage door opener is a simple yet essential upgrade for every homeowner. It ensures your door reverses when an obstacle is detected, protecting your family, pets, and property.

With this step-by-step guide, you can complete the installation safely and confidently — no need for professional help.
