Genie Wall Mount Garage Door Opener Instructions

Introduction

Installing a new garage door opener can feel intimidating, especially when you want to ensure safety and proper functionality from day one. If you have recently purchased a side-mount unit and are searching for reliable Genie Wall Mount Garage Door Opener instructions, you are in the right place to get your system running smoothly. We understand the frustration of unclear manuals, so we have simplified the process into an easy-to-follow guide that prioritizes your safety and convenience.

What Are Genie Wall Mount Garage Door Opener Instructions?

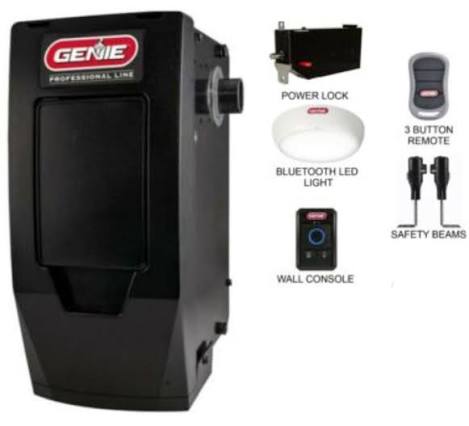

Before grabbing your drill, it is vital to understand what these specific instructions entail compared to traditional overhead openers. The Genie Wall Mount Garage Door Opener instructions differ significantly because the motor mounts on the wall beside the door rather than hanging from the ceiling. This design, often referred to as a jackshaft or side-mount opener, frees up overhead space and reduces noise vibration.

According to industry standards documented on Wikipedia, modern residential openers must adhere to strict safety reversal protocols established by UL 325. The Genie wall mount series (such as the Model 6070H or 4070H) integrates these safety features directly into the wall-mounted logic board, meaning the installation instructions focus heavily on sensor alignment and torsion spring interaction rather than chain tension. Understanding this distinction prevents common installation errors that plague DIYers transitioning from traditional trolley systems.

Why Choose a Wall Mount Over a Traditional Opener?

Many homeowners search for Genie Wall Mount Garage Door Opener instructions specifically because they are upgrading to maximize their garage’s utility. Here is a quick comparison to validate your choice:

Note: Always verify your door’s torsion spring system compatibility before proceeding, as wall mount openers require a standard torsion spring setup.

Pre-Installation Safety Checklist

Safety is non-negotiable when following Genie Wall Mount Garage Door Opener instructions. Garage doors are heavy mechanical objects under high tension. Before unboxing your kit, complete this checklist:

1. Disconnect Power: Unplug any existing opener and turn off the circuit breaker dedicated to the garage outlet.
2. Verify Door Balance: Manually lift the door halfway. It should stay in place without drifting up or down. An unbalanced door will destroy a wall mount opener within weeks.
3. Check Torsion Springs: Ensure your door uses a torsion spring system (spring mounted on a shaft above the door). Extension springs (side-mounted coils) are not compatible with Genie wall mount units.
4. Clear the Workspace: Remove all vehicles, tools, and debris from the immediate installation zone.
5. Gather Tools: You will need a stepladder, level, tape measure, socket set, adjustable wrench, wire strippers, and a cordless drill with masonry bits if mounting to brick.

⚠️ Critical Warning: Never attempt to adjust or repair torsion springs yourself. They store lethal amounts of energy. If your door is unbalanced or springs need adjustment, hire a certified technician before installing the opener.

Step-by-Step Genie Wall Mount Garage Door Opener Instructions

Follow these detailed steps for a professional-grade installation. These Genie Wall Mount Garage Door Opener instructions apply to most current Genie side-mount models, but always defer to your specific model’s manual for torque specifications.

Step 1: Determine Mounting Location

Identify which side of the door offers adequate clearance. You need at least 3 inches of headroom above the door opening and sufficient side room for the motor housing. Mark the mounting holes using the provided template, ensuring the unit is perfectly level. A tilted opener causes premature gear wear.

Step 2: Install the Mounting Bracket and Motor

Secure the mounting bracket to the wall studs or masonry using the supplied lag bolts. For drywall installations, you must anchor into wood studs; toggle bolts alone cannot support the dynamic load. Slide the motor onto the bracket and secure it with the retaining pins. The motor shaft should align precisely with the torsion spring shaft.

Step 3: Connect the Drive Coupler

Attach the drive coupler to the torsion spring shaft. This component transfers the motor’s rotation to the door. Tighten the set screws firmly according to the torque specs in your manual—typically 1/4 inch past finger-tight. Apply a small amount of thread locker to prevent vibration loosening over time.

Step 4: Install Safety Sensors and Wiring

Mount the Safe-T-Beam sensors 4–6 inches above the floor on both sides of the door opening. Run the low-voltage wiring along the wall, securing it with clips every 18 inches. Connect the wires to the motor head terminals, matching color-coded connections. Proper sensor alignment is mandatory; the indicator lights should be solid, not blinking.

Step 5: Program Travel Limits and Force Settings

This is where digital precision matters. Modern Genie wall mount units use electronic limit setting rather than mechanical stops.

1. Press and hold the “Set” button until the LED turns blue.
2. Use the up/down buttons to move the door to the fully open position. Press “Set” to confirm.
3. Move the door to the fully closed position. Press “Set” to confirm.
4. Test the auto-reverse by placing a 2×4 board flat on the floor under the door. The door must reverse immediately upon contact. Adjust force sensitivity if needed using the dial or digital menu.

Step 6: Sync Remotes and Keypad

Press the “Learn” button on the motor head (usually near the antenna wire). Within 30 seconds, press your remote button three times rapidly. Repeat for each additional remote and wireless keypad. Test all devices from outside the garage to ensure signal range is adequate.

Troubleshooting Common Installation Issues

Even with perfect Genie Wall Mount Garage Door Opener instructions, hiccups occur. Here are solutions to frequent problems:

• Door reverses before closing: Check sensor alignment first. Clean lenses with a soft cloth. Verify nothing blocks the beam path. If sensors are fine, increase downward force slightly.
• Motor hums but door doesn’t move: The drive coupler may be loose, or the emergency release cord is engaged. Re-engage the trolley lock and retighten coupler set screws.
• Excessive vibration during operation: Confirm the motor is level and securely anchored. Uneven mounting creates harmonic resonance. Also verify the torsion spring shaft is not bent.
• Remote works intermittently: Replace remote batteries. Reprogram the remote. Check for LED bulb interference; some cheap LED bulbs emit RF noise that disrupts opener signals. Switch to Genie-approved LED bulbs.

Frequently Asked Questions (FAQ)

Q1: Can I install a Genie wall mount opener on a door with extension springs?

No. Genie Wall Mount Garage Door Opener instructions explicitly state compatibility only with torsion spring systems. Extension springs lack the centralized shaft required for side-mount drive coupling. Convert to torsion springs first or choose a traditional trolley opener.

Q2: How much headroom do I actually need for a Genie wall mount?

Most Genie side-mount models require only 3 inches of clearance above the top of the door opening. This makes them ideal for garages with low ceilings, vaulted roofs, or overhead storage racks where traditional openers won’t fit.

Q3: Is professional installation required for warranty validity?

Not necessarily. Genie honors warranties for DIY installations provided you follow the Genie Wall Mount Garage Door Opener instructions precisely and register your product online within 30 days. However, electrical work or spring adjustments should still be performed by licensed professionals to avoid voiding coverage due to improper handling.

Q4: How do I reset my Genie wall mount opener to factory settings?

Hold the “Program” and “Set” buttons simultaneously for 10 seconds until the LED flashes red. Release both buttons. All remotes and keypads will be erased. Reprogram all devices afterward. This resolves persistent glitches caused by corrupted memory or power surges.

Q5: Why is my Genie wall mount opener louder than expected?

Wall mount openers should be whisper-quiet. Excessive noise usually indicates misalignment between the motor shaft and torsion shaft, loose mounting hardware, or worn drive coupler components. Recheck levelness and tighten all fasteners. Lubricate the torsion spring shaft bearings with white lithium grease—not WD-40.

Q6: Does the Genie wall mount include battery backup?

Select models like the 6070H-B include integrated battery backup that operates the door up to 20 times during power outages. Verify your exact model number. Even without built-in backup, most units support add-on battery accessories. Test backup functionality monthly by unplugging the unit.

Conclusion

Mastering the Genie Wall Mount Garage Door Opener instructions transforms a daunting project into a rewarding weekend upgrade. By following these steps meticulously, you gain a quieter, safer, and more spacious garage environment that enhances both daily convenience and home value. Remember, patience during installation pays dividends in decades of reliable performance.

If this guide helped you navigate your installation successfully, please share it on social media to assist fellow homeowners tackling similar projects. Tag us in your completed installation photos—we love seeing your success stories! Safe lifting, and enjoy your newly optimized garage space.
