Introduction
There are few things more frustrating than pressing your garage door remote only to be met with silence or a grinding noise when you’re rushing to work. If you are currently dealing with Genie Screwdrive SD9000 garage door opener troubleshooting, please know that most issues stem from simple wear-and-tear rather than catastrophic motor failure. This comprehensive guide is designed to walk you through safe, effective diagnostics so you can restore your system’s reliability without unnecessary service calls.

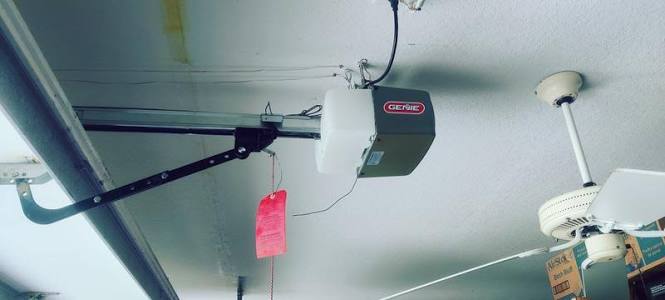

Understanding the Genie Screwdrive SD9000 System
Before diving into repairs, it is vital to understand what makes this unit unique. The Genie SD9000 utilizes a direct-drive screw mechanism, which differs significantly from chain or belt systems. According to general mechanical engineering principles documented on Wikipedia, screw-drive openers use a threaded steel rod to move the trolley, resulting in fewer moving parts but requiring specific lubrication protocols.
Because the SD9000 relies on this single rail system, troubleshooting often centers on three pillars: lubrication, alignment, and electronic programming. Misdiagnosing a lubrication issue as a motor failure is the most common mistake homeowners make, leading to premature replacements.
Key Specifications at a Glance
| Feature | Specification | Troubleshooting Relevance |
|---|---|---|
| Drive Type | Direct Screw Drive | Requires specialized lithium grease; no oil |
| Motor Power | 1/2 HP DC Equivalent | Check capacitor if humming but not moving |
| Safety System | Safe-T-Beam® | Lens cleaning solves 60% of reversal issues |
| Frequency | 315 MHz / 390 MHz | Antenna wire must hang straight for range |
| Travel Limits | Electronic Set Points | Reprogram after any track adjustment |
Why Is My Genie SD9000 Making Excessive Noise?
Noise is the primary complaint for screw-drive owners. However, not all sounds indicate the same problem. Proper Genie Screwdrive SD9000 garage door opener troubleshooting requires auditory diagnosis.
Grinding or Squealing Sounds
This almost always indicates dry rails or improper lubricant. Unlike chain drives, never use WD-40, silicone spray, or white lithium grease on an SD9000. These attract dust and create a paste that damages the carriage.
Step-by-Step Lubrication Fix:
- Disconnect power to the opener by unplugging it or switching off the breaker.
- Clean the entire length of the screw rail with a lint-free cloth and mineral spirits to remove old residue. Allow 10 minutes to dry completely.
- Apply Genie-specific screw drive lubricant (part #36275S) directly onto the top surface of the rail. Use exactly 2–3 tablespoons distributed evenly along the 8-foot rail section.
- Manually move the trolley back and forth three times to distribute the grease into the threads.
- Restore power and test operation. Repeat monthly during winter months when grease thickens.
Rattling or Vibrating Noises
If the unit sounds like it is shaking loose, inspect the mounting hardware. Over time, the vibration inherent to screw drives can loosen ceiling brackets. Tighten all lag screws using a 7/16″ socket wrench. Ensure the opener is mounted perpendicular to the header bracket; even a 2-degree misalignment causes binding and noise.
Garage Door Opens Partially Then Reverses
When the door travels down but stops and reverses before hitting the floor, the issue is typically related to force settings or safety sensors. This is a critical safety feature, not merely an inconvenience.
Diagnosing Safe-T-Beam® Sensor Issues
The SD9000 uses infrared beams across the door opening. If the beam is broken or misaligned, the door will reverse immediately.
- Check LED Indicators: Look at the sensor eyes mounted 4–6 inches above the floor. Both should show solid lights. A blinking red light indicates obstruction or misalignment.
- Clean Lenses: Wipe both transmitter and receiver lenses with a soft microfiber cloth. Spider webs and dust are frequent culprits.
- Verify Alignment: Loosen the wing nut on the receiving sensor slightly. Adjust until the LED turns solid green, then retighten gently. Even a millimeter shift disrupts the beam.
- Inspect Wiring: Trace wires back to the motor head. Look for pinch points, nail punctures, or corrosion at terminal connections.
Adjusting Down Force Settings
If sensors are functional but the door still reverses on cold days, the down-force limit may be too sensitive. Temperature changes affect metal expansion and spring tension.
- Locate the force adjustment knobs on the rear panel (labeled “UP” and “DOWN”).
- Turn the DOWN knob clockwise by one-quarter turn only.
- Test the door. If it still reverses, repeat in quarter-turn increments.
- Safety Warning: Never exceed the minimum force required to close the door. Test the auto-reverse function monthly by placing a 2×4 board flat on the floor under the door center. The door must reverse upon contact. Failure to pass this test requires immediate professional service.
Remote Control Works Intermittently or Not at All
Signal interference and battery issues account for over 70% of remote failures. Before assuming the logic board is faulty, complete these verification steps.
Battery and Contact Verification
- Replace batteries with fresh alkaline cells (avoid rechargeables due to voltage differences).
- Inspect battery compartment contacts for blue-green corrosion. Clean with cotton swab dipped in white vinegar, then dry thoroughly.
- Test remote LED brightness. Dim light indicates internal circuit degradation despite new batteries.
Signal Range Testing
Hold remote against motor housing and press button. If door operates, antenna or receiver is suspect. Extend antenna wire fully downward—never coil or paint it. Metal shelving, LED bulbs, or Wi-Fi routers within 3 feet of the opener can cause RF interference. Temporarily relocate nearby electronics to isolate the variable.
Reprogramming Procedure
Corrupted codes happen after power surges. Clear and reset:
- Press and hold the “Learn Code” button on motor head until indicator blinks (approximately 10 seconds). Release to erase all remotes.
- Press “Learn Code” once briefly. Indicator stays solid.
- Within 30 seconds, press desired remote button twice. Indicator flashes confirmation.
- Repeat for additional remotes and keypads.
FAQ Section
How often should I lubricate my Genie SD9000 screw drive?
Under normal residential use, lubricate every 3–4 months. In extreme temperatures (below 20°F or above 95°F), increase frequency to monthly. Always use manufacturer-specified lubricant; generic products void warranties and accelerate wear. Signs of needed lubrication include increased operating noise or slower cycle times.
Can I replace just the carriage assembly instead of the whole opener?
Yes, the SD9000 carriage (trolley) is a separate replaceable component. If the screw rail is undamaged and the motor functions properly, replacing the carriage costs approximately 40% less than full unit replacement. However, if the opener exceeds 15 years, investing in a newer model with updated safety features and quieter operation often provides better long-term value.
Why does my SD9000 hum but not move the door?
A humming motor without movement typically indicates either a failed starting capacitor or stripped carriage coupling. First, manually disengage the emergency release cord and operate the door by hand. If movement is smooth, the problem is electrical/mechanical within the opener. Capacitor testing requires a multimeter set to capacitance mode; readings below 80% of rated microfarads confirm failure. If capacitor tests good, inspect the plastic coupler connecting motor shaft to screw rod for cracks or stripping.
Is it safe to adjust travel limits myself?
Basic travel limit adjustments are homeowner-safe when following manual instructions precisely. However, never bypass safety sensors or modify force settings beyond specified ranges. Improper adjustment creates entrapment hazards. If door balance seems off (door doesn’t stay put when manually positioned halfway open), call a certified technician—spring adjustments are extremely dangerous and require specialized tools.
What lifespan should I expect from an SD9000?
With proper maintenance, Genie screw-drive openers typically last 15–20 years. Units lacking regular lubrication or installed in unconditioned spaces may fail within 8–10 years. Track usage cycles rather than calendar years; heavy commercial-style residential use accelerates wear proportionally.
Conclusion
Successful Genie Screwdrive SD9000 garage door opener troubleshooting combines systematic diagnosis with disciplined maintenance. By understanding your system’s unique requirements—especially proper lubrication and sensor care—you can resolve most issues safely while extending equipment life. Remember that safety always trumps convenience; when in doubt, consult a certified Genie dealer.
