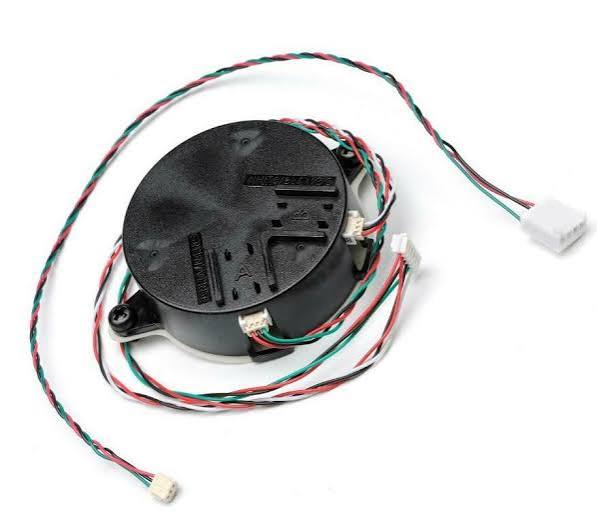

Is your garage door refusing to close, or does it reverse immediately after hitting the floor? You are not alone. Many homeowners face frustration when their Genie screw drive garage door opener sensor connection fails, leaving their home vulnerable and their daily routine disrupted. Understanding how these safety devices work is the first step toward a quick and safe repair.
Garage door sensors, often called “photo-eyes,” are critical safety features mandated by federal law since 1993. They prevent the door from crushing objects, pets, or people by detecting interruptions in an invisible infrared beam. When this connection is broken, the opener assumes there is an obstacle and refuses to close. In this guide, we will walk you through everything you need to know about diagnosing, fixing, and maintaining the sensor connection on your Genie screw drive model.
How Do Genie Screw Drive Sensors Work?
Before diving into repairs, it is essential to understand the mechanism behind the Genie screw drive garage door opener sensor connection. Unlike chain or belt drives, screw drive openers use a threaded steel rod to move the trolley. However, the safety sensor system operates independently of the drive mechanism.
The system consists of two units mounted near the floor on either side of the garage door opening:
- The Sending Unit (Transmitter): Usually has an amber or yellow LED. It emits an invisible infrared beam.
- The Receiving Unit (Receiver): Usually has a green LED. It detects the beam from the sender.
When the beam is uninterrupted, the receiver sends a “clear” signal to the motor head, allowing the door to close. If the beam is blocked—by a car, a box, or even misalignment—the receiver cuts the signal, and the door stops or reverses.
According to safety standards outlined by regulatory bodies, this system must be fail-safe. This means that if the wires are cut or the power is lost, the door should not close. For more detailed technical specifications on garage door safety standards, you can refer to Wikipedia’s entry on Garage Door Openers, which provides historical context on why these sensors became mandatory.
Why Is My Genie Sensor Light Blinking or Off?
One of the most common issues users face is inconsistent LED behavior. The lights on your sensors are the primary diagnostic tool. Here is what they typically mean for Genie models:
- Solid Green (Receiver) & Solid Amber (Sender): The connection is good. The door should operate normally.
- Blinking Green (Receiver): The beam is blocked or misaligned. The door will not close.
- No Light on Either Unit: There is a power issue, a wiring break, or a faulty sensor.
- Blinking Amber (Sender): Rare, but usually indicates a power surge or internal fault.
If you see a blinking green light, do not force the door closed. Instead, check for obstructions like leaves, spider webs, or dirt on the lens. Even a thin layer of dust can disrupt the Genie screw drive garage door opener sensor connection.
Step-by-Step: How to Align Genie Garage Door Sensors
Misalignment is the number one cause of sensor failure. Vibrations from the screw drive mechanism, accidental bumps from cars, or settling foundations can shift the brackets slightly. Follow these precise steps to realign your sensors.
Tools You Will Need
- A soft cloth or microfiber towel
- A wrench or socket set (usually 7/16″ or 1/2″)
- A level (optional but recommended)
- A helper (optional)
Alignment Procedure
- Clean the Lenses: Wipe both sensor lenses with a soft cloth. Dirt and grime are silent killers of sensor efficiency.
- Check the Brackets: Ensure both sensors are mounted at the same height. Genie recommends mounting them no higher than 6 inches above the floor. Use a tape measure to verify both sides are equal.
- Loosen the Wing Nut: Slightly loosen the wing nut or bolt on the bracket of the receiving unit (the one with the green light). Do not remove it completely; just enough to allow movement.
- Adjust the Angle: Gently rotate the sensor housing left, right, up, or down while watching the LED. You are looking for the moment the blinking green light turns solid.
- Tighten Securely: Once the light is solid, hold the sensor firmly in place and tighten the wing nut. Be careful not to overtighten, as this can crack the plastic housing.
- Test the Door: Press the wall button to close the door. If it closes smoothly, the alignment is successful.
Pro Tip: If you struggle to get a solid light, try adjusting the sending unit (amber light) slightly. Sometimes the beam needs to be projected at a slightly different angle to hit the receiver perfectly.
Troubleshooting Wiring and Power Issues
If alignment does not solve the problem, the issue may lie in the Genie screw drive garage door opener sensor connection wiring. Screw drive openers are known for their durability, but the vibration can eventually loosen wire terminals.
Check the Wire Connections
Inspect the wires running from the sensors to the motor head. Look for:
- Frayed Insulation: Rodents or sharp edges can chew through wires.
- Loose Terminals: At the back of the motor unit, ensure the white and black wires are securely screwed into the correct terminals. Typically, white goes to white and black to black, but consult your specific model’s manual.
- Staple Damage: If wires were stapled too tightly during installation, the copper inside may have broken.
Test for Voltage
If you have a multimeter, you can test the voltage at the sensor terminals on the motor head. Genie openers typically send 5–12 volts DC to the sensors. If there is no voltage, the issue may be with the logic board of the opener itself, not the sensors.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Blinking Green Light | Misalignment | Realign sensors until light is solid |
| No Lights On | Power Failure | Check wiring and motor head terminals |
| Door Closes Then Reverses | Dirty Lens or Weak Beam | Clean lenses and check for sunlight interference |
| Intermittent Failure | Loose Wire | Tighten terminal screws at motor head |
Common Mistakes to Avoid
When fixing your Genie screw drive garage door opener sensor connection, avoid these common pitfalls that can lead to further damage or safety hazards.
- Ignoring Sunlight Interference: Direct sunlight hitting the receiver lens can overwhelm the infrared signal. If your garage faces west, consider adding a small shade or hood over the sensor.
- Using Incorrect Replacement Parts: Not all sensors are universal. Genie sensors often have specific frequency requirements. Using a generic brand may result in incompatibility. Always check your model number.
- Forcing the Door: Never bypass the sensors to force the door closed. This disables a critical safety feature and can lead to severe injury or property damage.
- Neglecting the Screw Drive Lubrication: While not directly related to sensors, a poorly lubricated screw drive causes excessive vibration. This vibration can knock sensors out of alignment repeatedly. Use a lithium-based grease on the screw drive every six months to minimize movement.
FAQ Section
1. Can I bypass the sensors to close my garage door?
While it is technically possible to bypass sensors by holding down the wall button, it is strongly discouraged. This disables the safety reversal mechanism. If an object is in the way, the door will crush it. Only use this method in extreme emergencies, and never leave the system bypassed.
2. Why do my sensors work at night but not during the day?
This is likely due to sunlight interference. Direct sunlight contains infrared light that can confuse the receiver. Try shading the sensors with a small piece of cardboard or adjusting their angle slightly away from direct sun.
3. How often should I check my Genie sensor alignment?
It is recommended to check your sensor alignment and clean the lenses every three months. Additionally, inspect them after any significant weather events or if you notice the door behaving erratically.
4. What is the difference between Genie Series 1 and Series 2 sensors?
Genie has updated their sensor designs over the years. Series 2 sensors often have a different housing shape and may use a different mounting bracket. However, the wiring principle remains the same. Always match the sensor type to your opener’s manufacturing date.
5. My sensors are aligned, but the door still won’t close. What next?
If the lights are solid but the door reverses, check the travel limits and force settings on the motor head. The door may think it is hitting an obstacle due to incorrect force calibration. Refer to your owner’s manual for adjustment instructions.
6. Can I replace just one sensor if it is broken?
It is best to replace both sensors as a pair. Even if only one appears broken, the other may be nearing the end of its life. Mismatched sensors can lead to compatibility issues and unreliable performance.
Conclusion
Fixing your Genie screw drive garage door opener sensor connection does not require a professional technician in most cases. By understanding how the infrared beam works, keeping the lenses clean, and ensuring proper alignment, you can maintain a safe and functional garage door. Remember, these sensors are not just convenience features; they are vital safety devices that protect your family and property.
If you have followed these steps and still experience issues, it may be time to consult a certified Genie dealer or a professional garage door technician. However, for most minor misalignments and wiring loose ends, this guide should have you back in operation in under 30 minutes.
