The Genie Pro Max Garage Door Opener Bypass Safety Beam topic comes up often among homeowners and technicians. Many people search for ways to bypass the safety beam when their garage door refuses to close properly, but it’s important to understand the implications — both for safety and for compliance with regulations.
In this guide, we’ll cover what the safety beam does, why you might consider bypassing it, the correct troubleshooting methods, and safe alternatives that don’t compromise your garage door opener’s essential protective functions.
Understanding the Safety Beam

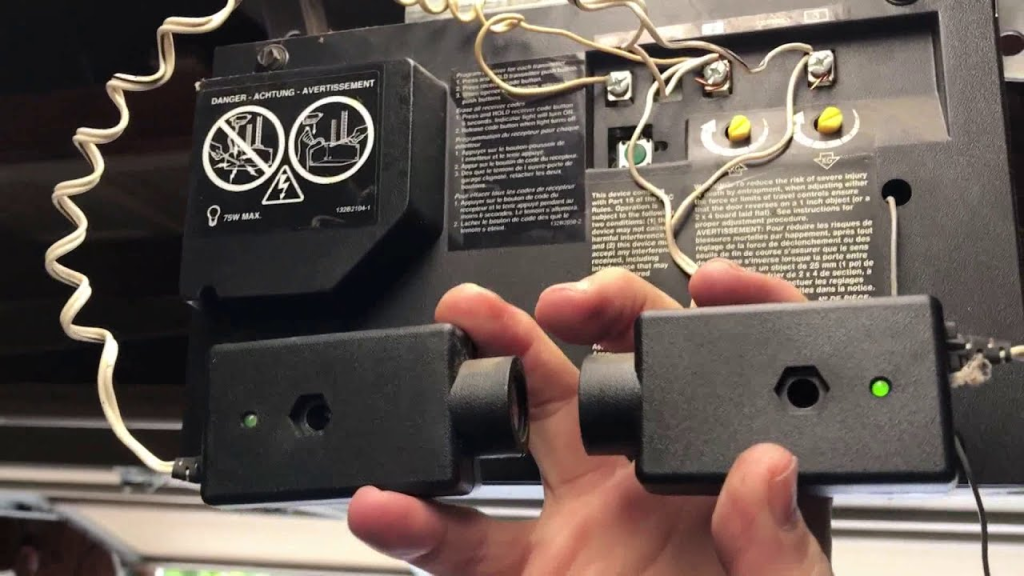

The safety beam (also known as the Safe-T-Beam® system in Genie models) is an infrared sensor system positioned near the base of the garage door tracks. It consists of a sender and a receiver. The sender emits an invisible infrared beam that the receiver detects. If something interrupts the beam while the door is closing, the opener stops and reverses.
This is a critical safety feature designed to prevent the door from hitting people, pets, or objects. The system became mandatory in the U.S. in the early 1990s, following federal regulations (UL 325) for garage door openers.
Why People Search for a Genie Pro Max Garage Door Opener Bypass Safety Beam
There are a few common scenarios:
- Faulty Sensor or Wiring
- The beam is interrupted because the sensor is dirty, damaged, or misaligned.
- Garage Door Won’t Close in Bad Weather
- Rain, snow, or bright sunlight can sometimes interfere with the infrared beam.
- Temporary Operation During Repairs
- A technician might bypass the beam momentarily to close the door for security.
- Obsolete or Unavailable Replacement Parts
- On older Genie Pro Max models, finding compatible safety beams can be difficult.
Risks of Bypassing the Safety Beam
Bypassing the safety beam removes a key safety feature. This means the opener will no longer stop if something is in the door’s path. The risks include:
- Injury to People or Pets: The door can crush anything in its path without reversing.
- Property Damage: Objects under the door may be damaged if the beam is bypassed.
- Legal Liability: If an accident happens, you could be held responsible.
- Code Violation: Bypassing may violate building codes and insurance policies.
Bottom line: While it might seem like a quick fix, bypassing is generally not recommended except in temporary, controlled situations.
Genie Pro Max Garage Door Opener Bypass Safety Beam — How It’s Typically Done (For Educational Purposes Only)
Disclaimer: This information is for educational purposes only. Performing a bypass on your own system may void warranties, break laws, or cause injury. Always follow manufacturer guidelines and safety laws.
A typical bypass involves one of the following:
- Direct Wiring at the Opener Terminals
- The safety beam wires are connected together at the opener’s terminal block, simulating a constant “beam clear” signal.
- Resistor or Jumper Wire Trick
- A resistor or jumper is installed to fool the opener into thinking the beam is uninterrupted.
- Shorting Sensor Inputs
- On some Genie Pro Max models, shorting the two sensor input terminals bypasses the detection circuit.
While these methods can work, they should only be used temporarily by a trained professional during diagnostic procedures.
Safer Alternatives to Bypassing
If your garage door refuses to close and you suspect the safety beam is the problem, try these safe alternatives:
1. Clean the Sensor Lenses
Dust, dirt, or spider webs can block the beam. Use a soft cloth to wipe both sensors.
2. Realign the Sensors
If the LED on one sensor is blinking or off, gently adjust the sensor so both LEDs are solid.
3. Check the Wiring
Inspect the wires for fraying, pinching, or loose connections at the opener head.
4. Shield from Sunlight
Bright sunlight can interfere with infrared beams. Install small shades over the sensors to reduce interference.
5. Replace the Sensors
If cleaning and alignment don’t work, order replacement Genie-compatible safety beams.
Legal and Compliance Considerations
According to UL 325 standards, all garage door openers manufactured after 1993 must include an operational safety reversing system. Permanently bypassing the beam can:
- Make your opener non-compliant
- Void your homeowner’s insurance coverage for related accidents
- Create legal liability if injury occurs
If you absolutely must bypass temporarily for security reasons (e.g., stuck door at night), restore the beam to full working order as soon as possible.
Troubleshooting the Genie Pro Max Safety Beam
Here’s a quick diagnostic checklist:
- Check the Indicator Lights
- Solid lights = alignment OK
- Blinking/off light = beam misaligned or blocked
- Test with Manual Closure
- Hold the wall button continuously to force the door closed (this overrides the beam temporarily but only while holding the button).
- Swap Sensor Positions
- Move the sender and receiver to opposite sides to rule out a defective sensor.
- Test Wiring Continuity
- Use a multimeter to check if wires are intact from the opener head to the sensors.
Why Professionals Sometimes Use a Temporary Bypass
There are scenarios where a bypass is useful:
- Closing the door when parts are on order
- Testing opener function without safety beam interference
- Emergency closure during power outages or security incidents
However, a qualified technician will always restore the safety beam as soon as possible.
Maintenance Tips to Avoid Safety Beam Problems
- Keep the area around sensors clear of debris, lawn tools, or storage items.
- Clean lenses regularly, especially if your garage is dusty.
- Protect wiring from rodents or accidental damage.
- Schedule annual inspections to check alignment and function.
Final Thoughts
The Genie Pro Max Garage Door Opener Bypass Safety Beam discussion often comes from frustration when a garage door won’t close. But the safety beam is there to protect people, pets, and property. Bypassing should be an absolute last resort, done only temporarily and by a trained professional.
Whenever possible, troubleshoot and repair the safety beam instead of bypassing it. The small investment in replacement sensors or professional repair is worth the peace of mind and safety compliance.
