Is your old garage door opener struggling to lift your heavy wooden door, or has it finally given up the ghost? Dealing with a malfunctioning opener is not just an inconvenience; it can compromise your home’s security and daily routine. If you have chosen the robust Genie Max 750 3/4 Garage Door Opener Installation project to upgrade your home, you are making a smart choice for power and reliability. This guide will walk you through the process clearly and safely, ensuring you get the most out of your new hardware.
Why Choose the Genie Max 750 for Your Home?

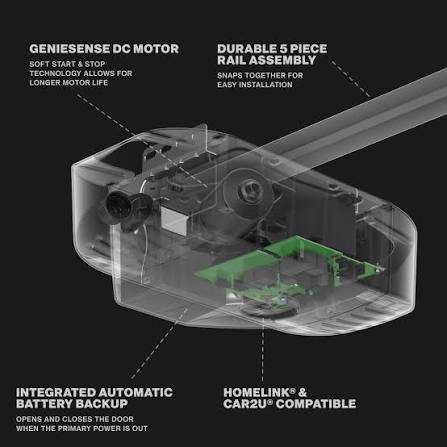

Before diving into the tools and bolts, it is essential to understand why this specific model is a top contender in the US market. The Genie Max 750 features a 3/4 horsepower DC motor. Unlike older AC motors, this DC motor provides soft-start and soft-stop technology. This means your door opens and closes gently, reducing wear and tear on the springs and tracks.
According to industry standards, a 3/4 HP motor is ideal for heavy double-car garage doors or insulated wooden doors that weigh significantly more than standard single-layer steel doors. By choosing this model, you are investing in longevity. The belt-drive system also ensures quiet operation, which is a major plus if your garage is attached to your living space or if you have bedrooms above the garage.
Essential Tools and Safety Precautions
Safety is the cornerstone of any successful DIY project. Before you unbox your Genie Max 750, ensure you have the right environment and equipment. Working with garage door springs and heavy metal components can be dangerous if proper precautions are not taken.
Required Tools List
- Stepladder (stable and tall enough to reach the header bracket)
- Power drill with assorted bits
- Wrench set (adjustable wrenches are helpful)
- Socket set
- Tape measure
- Level (a 4-foot level is ideal for rail alignment)
- Pliers and wire cutters
- Safety glasses and work gloves
Critical Safety Steps
- Disconnect Power: Ensure the old opener is unplugged and the circuit breaker is turned off.
- Secure the Door: Close the garage door completely and lock it in place using C-clamps on the track below the bottom roller. This prevents the door from falling while you remove the old opener.
- Check Spring Tension: Never attempt to adjust or remove torsion springs yourself. These are under extreme tension and should only be handled by certified professionals. For more information on garage door mechanics and safety standards, you can refer to general safety guidelines on Wikipedia.
Step-by-Step Genie Max 750 3/4 Garage Door Opener Installation
This section breaks down the installation into manageable phases. Take your time with each step to ensure precision.
Phase 1: Removing the Old Opener
If you are replacing an existing unit, start by disconnecting the emergency release cord. Unbolt the motor unit from the ceiling bracket. You may need a helper to support the weight of the old motor as you detach it. Once the motor is down, remove the old rail and the header bracket from above the door. Clean the area of any dust or old hardware debris.
Phase 2: Assembling the Rail and Motor
The Genie Max 750 comes with a pre-assembled or easy-assemble rail system. Lay the rail on a flat surface. Attach the motor unit to the rear of the rail using the provided bolts. Tighten them securely but do not over-torque, as this can strip the threads.
Install the trolley and the carriage onto the rail. Ensure the carriage moves smoothly from one end to the other. If it sticks, check for any burrs on the rail or misaligned wheels. Apply a small amount of white lithium grease to the rail if recommended by the manual, though many modern belt drives require minimal lubrication.
Phase 3: Installing the Header Bracket
The header bracket is the anchor point for the entire system. It must be installed directly above the center of the garage door.
- Measure the width of your door and mark the exact center on the wall above the door frame.
- Hold the header bracket against the wall. Use your level to ensure it is perfectly horizontal.
- Mark the screw holes. Drill pilot holes into the wood header behind the drywall. Do not rely solely on drywall anchors; the bracket must be secured into solid wood or structural steel to handle the lifting force.
- Bolt the header bracket firmly in place.
Phase 4: Mounting the Opener Unit
Now, lift the assembled motor and rail unit. You will likely need a helper for this step. Hang the front of the rail on the header bracket you just installed. Then, attach the rear mounting bracket to the ceiling joists.
Crucial Alignment Tip: Use your level to check the rail. It should have a slight upward angle toward the back of the garage (about 1/4 inch per foot) if specified in your manual, or be perfectly level depending on the specific Genie Max 750 variant instructions. Proper alignment prevents binding and ensures smooth operation. Secure the ceiling bracket with lag screws into the joists.
Phase 5: Connecting the Door Arm
Attach the curved door arm to the trolley on the rail and the straight door arm to the top of the garage door. Connect the two arms together. Ensure the pins are secured with cotter pins or clips so they do not vibrate loose over time.
Remove the C-clamps securing the door to the track. Manually lift and lower the door to ensure it moves freely without binding. If the door is hard to lift manually, your springs may be improperly balanced, and you should call a professional before proceeding.
Phase 6: Wiring and Sensor Installation
Safety eyes (sensors) are mandatory for all modern garage door openers.
- Install the sending and receiving sensors on either side of the door, about 6 inches above the floor.
- Ensure they are aligned perfectly; the LED lights should indicate a clear connection.
- Run the wires along the baseboard or staple them neatly up the door frame to the motor unit. Avoid running wires near high-voltage lines to prevent interference.
Connect the wall control panel and the power cord. Plug the unit into a grounded outlet. Do not use an extension cord unless it is a heavy-duty, short-length cord rated for the amperage.
Troubleshooting Common Installation Issues
Even with careful planning, you might encounter hiccups. Here is how to address common problems during your Genie Max 750 3/4 Garage Door Opener Installation.
| Issue | Possible Cause | Solution |
|---|---|---|
| Door reverses before closing | Misaligned sensors or obstruction | Check sensor LEDs. Clean lenses. Ensure nothing blocks the beam. |
| Motor runs but door doesn’t move | Broken gear or disconnected arm | Check the carriage connection to the door. Inspect internal gears if under warranty. |
| Noisy operation | Loose hardware or lack of lubrication | Tighten all bolts. Lubricate rollers and hinges (not the belt). |
| Remote not working | Programming error or dead battery | Reprogram the remote per the manual. Replace the battery. |
Setting Limits and Force Controls
Once the physical installation is complete, you must program the travel limits. This tells the opener how far to go up and down.
- Press the “Set Limit” button on the motor head.
- Use the wall control to move the door to the fully closed position. Press the set button again.
- Move the door to the fully open position. Press the set button to save.
Next, adjust the force settings. The door should reverse immediately if it hits an obstruction. Place a 2×4 piece of wood on the floor under the center of the door. Close the door. It should stop and reverse upon hitting the wood. If it does not, decrease the close force setting slightly. If it reverses before hitting the wood, increase the force slightly.
FAQ Section
1. How long does it take to install a Genie Max 750?
For a DIYer with basic mechanical skills, the Genie Max 750 3/4 Garage Door Opener Installation typically takes between 3 to 5 hours. This includes removing the old unit, assembling the new one, and programming the settings. Having a helper can significantly reduce this time.
2. Can I install this opener on a heavy wooden door?
Yes, the 3/4 HP motor is specifically designed for heavier doors, including double-car insulated steel doors and solid wood doors. However, ensure your garage door springs are properly balanced to support the weight of the door before installing the opener.
3. Do I need a professional electrician for the wiring?
Generally, no. The Genie Max 750 plugs into a standard 120V outlet. As long as you have a grounded outlet nearby, you can handle the wiring yourself. However, if you need to install a new outlet or run new circuits, consult a licensed electrician to comply with local codes.
4. What maintenance is required after installation?
Minimal maintenance is required. Every six months, check the hardware for tightness. Lubricate the door’s rollers, hinges, and springs with a silicone-based lubricant. Avoid getting grease on the belt drive, as this can attract dust and cause slippage. Test the safety sensors monthly.
5. Is the Genie Max 750 compatible with smart home systems?
Yes, many Genie Max 750 models come with Aladdin Connect compatibility or built-in Wi-Fi modules. This allows you to control your garage door via a smartphone app, integrate with Amazon Alexa or Google Assistant, and receive alerts when the door is left open.
Conclusion
Completing your Genie Max 750 3/4 Garage Door Opener Installation is a rewarding project that enhances both the convenience and security of your home. By following this guide, you have ensured that your heavy-duty door is operated by a powerful, quiet, and reliable motor. Remember, the key to success lies in precise alignment, secure mounting, and thorough testing of safety features.
