Genie Keypad Garage Door Opener Dip Switches

Introduction

There are few things more frustrating than standing in the rain, punching codes into a keypad that refuses to open your garage door. If you own an older model system, understanding Genie keypad garage door opener dip switches is often the key to restoring access and peace of mind. While modern units use rolling code technology, many reliable Genie systems still utilize fixed-code dip switch configurations that require precise manual alignment between the keypad and the motor unit. This guide will walk you through identifying, matching, and troubleshooting these switches safely so you can get back inside without hassle.

What Are Genie Keypad Garage Door Opener Dip Switches?

Before attempting any programming, it is vital to understand what these components actually do. Genie keypad garage door opener dip switches are tiny, dual-position mechanical toggles located inside both the external wireless keypad and the internal garage door opener motor head.

Unlike modern “rolling code” systems that generate billions of unique signal combinations automatically, dip switch systems rely on a fixed binary code. Think of them as a physical password. If the pattern of “Up” and “Down” positions on the keypad does not match the pattern on the motor unit exactly, the door will not operate.

Fixed Code vs. Rolling Code: A Critical Distinction

According to technical documentation referenced in Wikipedia’s article on garage door openers, fixed-code dip switch systems were the industry standard prior to the mid-1990s. Understanding this distinction prevents wasted effort:

⚠️ Safety Note: Always disconnect power to the garage door opener before removing the motor cover to inspect internal dip switches. Capacitors can hold a charge even when unplugged.

How Do I Locate the Dip Switches on My Genie Opener?

Finding the switches is half the battle. Their location varies significantly depending on whether you are looking at the keypad or the overhead motor unit.

Locating Switches on the Motor Unit

For most legacy Genie models (such as the SD2500, CM7600, or H4000 series):

1. Remove the light lens cover by squeezing the sides or unscrewing the retaining nut.
2. Look near the antenna wire or the terminal block where the wall console connects.
3. Identify a bank of 9 or 12 small plastic toggles. They are typically blue, red, or black.
4. Note the current position of each switch. Taking a high-resolution photo with your phone is highly recommended before making changes.

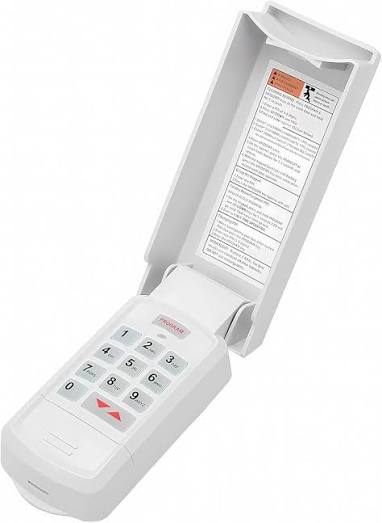

Locating Switches on the Wireless Keypad

Not all Genie keypads have dip switches; newer ones are Intellicode compatible. However, if yours does:

1. Open the battery compartment on the back of the keypad.
2. Slide out the inner circuit board tray (if applicable).
3. Locate the matching bank of 9 or 12 switches.
4. Ensure the number of switches matches the motor unit exactly. A 9-switch keypad cannot program to a 12-switch opener without an adapter or replacement.

Step-by-Step: Programming Genie Keypad Garage Door Opener Dip Switches

This tutorial assumes you have confirmed both devices use dip switch technology. Follow these steps precisely to synchronize your system.

Step 1: Establish a New Code Pattern

Never leave your switches in the factory default position (often all “Up” or alternating). This is a significant security risk.

• Create a random pattern of Up and Down positions.
• Avoid obvious patterns like all-up, all-down, or simple alternation.
• Write this pattern down temporarily for reference.

Step 2: Set the Motor Unit Switches First

Using a small flathead screwdriver or a pen tip:

1. Adjust each of the 9 or 12 switches on the motor head to match your new chosen pattern.
2. Press firmly but gently; these switches are delicate and can break if forced.
3. Double-check every single switch against your written pattern. One misaligned switch will prevent operation.

Step 3: Match the Keypad Switches

Now move to the exterior keypad:

1. Replicate the exact same pattern you set on the motor unit.
2. Verify alignment visually. Hold the keypad next to your reference note.
3. Reassemble the keypad housing and reinstall batteries. Use fresh alkaline batteries (typically 9V or AAA depending on model) to rule out power issues during testing.

Step 4: Test and Verify

Stand within 3–5 feet of the garage door:

1. Enter your personal PIN followed by the Send/Open button.
2. The door should activate immediately.
3. Test from increasing distances (10 ft, 20 ft, driveway) to confirm signal strength.
4. If the door operates intermittently, recheck switch alignment and battery voltage.

Expert Tip: According to Genie service technicians, over 60% of “failed programming” calls for dip switch systems are caused by oxidized switch contacts. Toggle each switch back and forth 5–10 times before setting your final pattern to clean internal contacts and ensure reliable conductivity.

Why Won’t My Genie Keypad Work After Matching Dip Switches?

Even with perfect alignment, issues persist. Here is a systematic troubleshooting approach based on decades of field experience.

Common Failure Points

• Oxidized Contacts: As mentioned above, age causes corrosion. Toggling switches repeatedly cleans them.
• Battery Voltage Drop: Weak batteries may provide enough power for LED lights but insufficient amperage for RF transmission. Always test with a multimeter or known-good batteries.
• Antenna Issues: The hanging antenna wire on the motor unit must be fully extended and uncoiled. A coiled or damaged antenna reduces effective range dramatically.
• RF Interference: LED bulbs installed in the opener’s light fixture can emit electromagnetic interference that blocks dip switch signals. Test with the light bulb removed. If operation improves, replace with RFI-shielded garage-door-specific LED bulbs.
• Switch Count Mismatch: Confirm both devices have identical switch counts. Adapters exist for 9-to-12 conversions but must be purchased separately.
• Failed Receiver Board: If switches are verified correct and batteries are fresh, the receiver board in the motor unit may have failed. This requires professional diagnosis or board replacement.

When to Upgrade Instead of Repair

If your Genie keypad garage door opener dip switches require constant adjustment, or if neighbors’ openers trigger yours (a real risk with only 4,096 possible combinations), upgrading to an Intellicode system is strongly advised. Modern Genie Intellicode keypads eliminate dip switches entirely, offer vastly superior security, and are backward-compatible with many older motor units via universal receivers.

Frequently Asked Questions (FAQ)

Q1: Can I convert my dip switch Genie opener to rolling code without replacing the motor?

Yes. Genie and third-party manufacturers sell universal Intellicode receiver kits that plug into the existing motor’s terminal block. This allows you to use modern secure keypads while retaining your functional legacy motor. Installation typically takes under 30 minutes.

Q2: How many possible codes does a 9-switch Genie system have?

A 9-position dip switch system offers 2⁹ = 512 unique combinations. A 12-switch system offers 2¹² = 4,096 combinations. This limited pool is why fixed-code systems are considered insecure by modern standards and why upgrading is recommended for homes in dense neighborhoods.

Q3: My keypad has no visible dip switches but my opener does. Are they compatible?

Likely not directly. A keypad without visible switches is probably an Intellicode model designed for rolling-code receivers. You would need either a universal receiver adapter or a replacement dip-switch-compatible keypad. Check the model number on the keypad’s back label against Genie’s compatibility chart.

Q4: Is it safe to use dip switch garage door openers in 2026?

Functionally, yes—they will open your door. Security-wise, they are vulnerable to code grabbing and brute-force attacks due to their limited combination pool. If you live in a low-crime rural area, the risk is minimal. In urban or suburban settings, adding a smart garage controller with encryption or upgrading to Intellicode is a prudent investment.

Q5: How often should I change my dip switch code?

At minimum, once per year or whenever you move into a home with a legacy system. Previous owners, contractors, or neighbors may know your code. Changing the pattern takes less than five minutes and significantly reduces unauthorized access risk.

Q6: Can weather affect dip switch keypad performance?

Extreme cold can reduce battery output and make plastic switches brittle. Moisture ingress can corrode contacts. Install a weather-resistant keypad cover rated for outdoor use, and inspect seals annually. Silicone dielectric grease applied sparingly to switch contacts can prevent moisture-related failures.

Conclusion

Understanding Genie keypad garage door opener dip switches empowers you to maintain, troubleshoot, and secure one of your home’s most-used entry points. While this technology is aging, proper maintenance—cleaning contacts, using fresh batteries, verifying exact switch alignment, and mitigating RF interference—can keep legacy systems functioning reliably for years. However, given the inherent security limitations of fixed-code systems, planning an upgrade to Intellicode or smart-enabled technology should be part of your long-term home safety strategy.
