Introduction
There are few things more frustrating than a garage door that refuses to open when you are rushing to work or returning home with groceries. If you own this specific system, finding an accurate Genie Intellicode garage door opener parts diagram is often the first critical step toward diagnosing the issue and restoring functionality. We understand the stress of mechanical failures, and this guide is designed to help you identify components confidently so you can get back to your daily routine without unnecessary delays or expensive service calls.
Understanding the Genie Intellicode System Architecture
Before diving into repairs, it is essential to understand what makes the Intellicode system unique compared to older models. The term “Intellicode” refers to Genie’s proprietary rolling-code security technology, which changes the access code every time the remote is used to prevent unauthorized entry. According to Wikipedia, modern rolling-code systems significantly reduced the vulnerability of garage doors to code-grabbing devices compared to fixed-code predecessors.
When looking at a Genie Intellicode garage door opener parts diagram, you will notice distinct electronic modules that differ from standard chain-drive openers. Identifying these correctly ensures you order compatible replacements rather than generic parts that may compromise security or function.
Key Components in the Diagram
- Logic Board (PCB): The brain of the opener containing the Intellicode receiver and microprocessor.
- Safe-T-Beam Sensors: Infrared safety reversal system mandated by federal law since 1993.

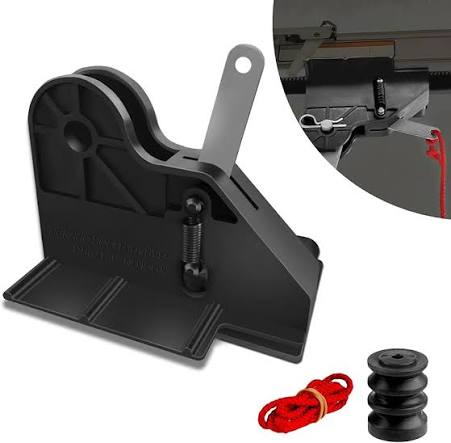

- Carriage Assembly: The mechanism that physically moves along the rail to lift the door.
- Limit Switches: Mechanical or electronic stops that tell the motor when to cease operation.
- Capacitor: Provides the initial torque burst required to start the motor.
How to Locate Your Specific Genie Model Number
A common mistake homeowners make is assuming all Intellicode diagrams are identical. They are not. Using the wrong schematic can lead to electrical hazards or incompatible part purchases. To find the correct Genie Intellicode garage door opener parts diagram, you must first locate your exact model number.
Step-by-Step Identification Process
- Locate the Motor Head: Safely position a stepladder beneath the opener unit. Never stand on the door tracks or unstable surfaces.
- Find the Rating Label: Look for a white or silver sticker on the side or back panel of the motor housing. It typically lists “Model,” “HPC,” and “Serial Number.”
- Record the Full Alphanumeric Code: Write down the entire string. For example, “ISD1000” differs significantly from “CM8600IC/A” in terms of internal gearing and board layout.
- Cross-Reference Manufacturing Date: The date code helps determine if your unit uses revision A, B, or C boards, as Genie frequently updated Intellicode firmware and hardware over its production run.
Expert Tip: Take a clear photo of the label with your smartphone before climbing down. This prevents transcription errors when searching for diagrams later.
Interpreting the Parts Diagram Correctly
Once you have the official Genie Intellicode garage door opener parts diagram for your specific model, knowing how to read it saves hours of confusion. Manufacturers use standardized callouts, but understanding the context matters.
Reading Callout Numbers vs. Part Numbers
Diagrams typically feature two types of identifiers:
| Identifier Type | Purpose | Example | Action Required |
|---|---|---|---|
| Callout Number | Reference key linking visual location to parts list | #14, #22-A | Use to find row in parts table |
| Part Number | Unique SKU for ordering replacement | 37285R.S, 29557S | Enter into retailer search bar |
| Assembly Number | Grouped components sold as single unit | 36428R.S | Order if multiple sub-parts failed |
Identifying Wear Points on the Schematic
Not all parts fail at equal rates. When reviewing your diagram, prioritize inspection of high-stress components:
- Drive Gears: Usually callouts near the motor shaft; plastic teeth strip after 10–15 years.
- Belt/Chain Tensioner: Located mid-rail; sagging indicates adjustment or replacement need.
- Wall Console Wiring Terminals: Corrosion here mimics logic board failure.
- Safety Sensor Lenses: Cracks or moisture ingress cause intermittent reversal issues.
Common Repairs Linked to Diagram Components
Understanding the Genie Intellicode garage door opener parts diagram directly translates to successful DIY repairs. Below are three frequent scenarios where the diagram proves invaluable.
Scenario 1: Door Reverses Immediately After Closing
This usually indicates Safe-T-Beam misalignment or wiring faults. The diagram shows sensor wire routing paths and terminal block locations. Check continuity using a multimeter set to ohms; resistance should be near zero on intact wires. Clean lens surfaces with isopropyl alcohol and realign brackets until both indicator LEDs glow steadily.
Scenario 2: Motor Hums But Door Doesn’t Move
The capacitor or drive gear assembly is likely culpable. Consult the exploded view to locate the capacitor housing. Discharge stored energy by shorting terminals with insulated pliers before testing. Capacitance readings below 80% of rated value confirm replacement necessity. If gears appear stripped in the diagram’s transmission section, replace the entire gear kit rather than individual teeth.
Scenario 3: Remote Works Intermittently
Rolling-code sync loss or antenna damage causes this. The diagram identifies antenna wire attachment points on the logic board. Resolder cold joints and verify wire isn’t pinched against metal chassis. If problems persist, reprogram remotes following manufacturer sequence while referencing console button locations shown in the wiring schematic.
Safety Precautions Before Any Repair
Working with garage door openers involves electricity, heavy springs, and moving machinery. Always observe these non-negotiable safety protocols:
- Disconnect Power: Unplug the unit AND turn off the circuit breaker. Verify absence of voltage with a non-contact tester.
- Never Touch Springs: Torsion springs store lethal kinetic energy. Spring-related repairs require certified professionals only.
- Secure the Door: Clamp locking pliers onto tracks below rollers when working overhead to prevent accidental descent.
- Use Proper PPE: Safety glasses and insulated gloves protect against debris and residual charge.
- Document Wire Colors: Photograph all connections before disassembly to ensure correct reassembly per diagram specifications.
Frequently Asked Questions About Genie Intellicode Parts
Where can I download free Genie Intellicode garage door opener parts diagrams?
Official diagrams are available through Genie’s support portal by entering your model number. Authorized distributors like North Shore Commercial Door and Garage Door Supply also host PDF schematics. Avoid third-party sites hosting outdated or modified versions that could lead to incorrect part identification.
Can I substitute non-Genie parts shown in the diagram?
While some universal capacitors or sensors may fit physically, Intellicode-specific components like logic boards and remotes require OEM compatibility. Substituting security-critical parts voids warranties and may create vulnerabilities. Mechanical parts like belts or rollers sometimes have cross-compatible alternatives, but always verify dimensions against original specifications listed in the Genie Intellicode garage door opener parts diagram.
How do I know if my Intellicode board needs replacement versus reprogramming?
Reprogramming resolves sync issues between remotes and receivers. Board failure manifests as complete unresponsiveness, burnt component odors, visible capacitor bulging, or error LED patterns documented in the manual. If reprogramming fails twice and power supply tests normal, board replacement is indicated.
What tools are needed for diagram-guided repairs?
Essential tools include Phillips and flathead screwdrivers, nut drivers (¼” and 5/16”), needle-nose pliers, digital multimeter, stepladder, and socket set. Specialized tasks may require gear pullers or spring winding bars (professionals only). Keep the diagram accessible on a tablet or printed sheet during work to avoid repeated ladder trips.
Why does my diagram show different part numbers than my physical unit?
Genie issued technical service bulletins updating superseded parts throughout Intellicode’s lifespan. Newer part numbers often consolidate multiple revisions into improved assemblies. Cross-reference the supersession chart included in current parts catalogs or contact Genie technical support with your serial number for definitive mapping.
Is it worth repairing an old Intellicode opener versus replacing it?
Consider repair if the unit is under 15 years old, parts cost less than $150, and no structural damage exists. Replacement becomes economical when repair costs exceed 50% of new unit price, when safety features are obsolete, or when noise/vibration indicates systemic wear. Modern DC-motor openers offer quieter operation and battery backup absent in older AC Intellicode models.
Conclusion and Next Steps
Navigating a Genie Intellicode garage door opener parts diagram doesn’t have to be overwhelming when approached methodically. By correctly identifying your model, interpreting callouts accurately, and prioritizing safety, you can diagnose and resolve most common issues without professional intervention. Remember that understanding the system architecture builds confidence for future maintenance and helps distinguish genuine failures from simple adjustments.
