Installing a new garage entry system can feel overwhelming, especially when you are staring at confusing diagrams and heavy hardware. If you need a reliable Genie Intellicode Garage Door Opener Installation Manual, you are in the exact right place. Grab your tools, and let us get your home secure and functioning effortlessly!
Step-by-Step Genie Intellicode Garage Door Opener Installation Manual
Taking on a DIY garage door setup is highly rewarding, but precision is everything. Before we begin, gather your tools: a stepladder, a power drill, a tape measure, locking pliers, and a 7/16-inch wrench.
Here is your foolproof guide to getting the job done right.
Phase 1: Assembling the Rail and Belt
First, lay out all the rail sections on a clean, flat surface. Connect the rail pieces using the provided hardware, ensuring the teeth align perfectly.
Next, thread the belt or chain through the rail. Always leave exactly 1/2 inch of clearance between the belt and the rail base to prevent friction wear.
Phase 2: Mounting the Header Bracket
This is the most critical structural step. The header bracket supports the entire weight of the motor assembly.
Measure the highest point your garage door reaches during its travel arc. Mount the header bracket exactly 2 inches above this highest point on the header wall. Use heavy-duty 3/8-inch lag screws to secure it firmly into the wooden studs.
Phase 3: Hanging the Powerhead

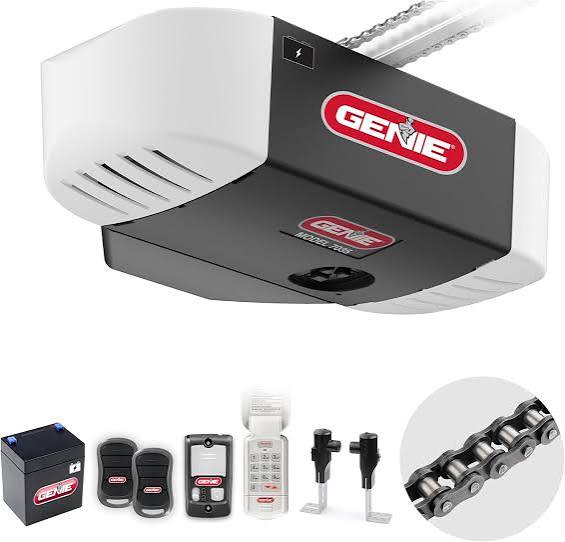

With the help of a friend, lift the powerhead (the main motor unit) and attach it to the header bracket.
Do not fully tighten the bolts yet. You will need some wiggle room to align the rail perfectly straight with the top of your garage door. Once aligned, lock the bolts down securely.
How Do I Program My Genie Intellicode Remote?
Once the physical hardware is mounted, you need to sync your remote. Genie uses rolling code technology, which changes the access code every time you use the remote to prevent thieves from copying your signal.
- Locate the Learn Button on the powerhead. It is usually a small, square button near the antenna wire.
- Press and release the Learn Button. An LED light will illuminate, indicating the system is in pairing mode.
- Within 30 seconds, press and hold the button on your Intellicode remote that you wish to program.
- The powerhead LED will flash or click, confirming the remote is successfully synced.
Understanding the basic security mechanics of a garage door opener helps you appreciate why this rolling code sync is so vital for your home’s safety.
What Are the Pros and Cons of Genie Intellicode Openers?
Before you finalize your limit switch adjustments, it is helpful to know what makes your specific model stand out. Here is a quick text infographic comparing the benefits and drawbacks of the Intellicode system.
| Feature | Genie Intellicode Pros | Potential Cons |
|---|---|---|
| Security | Rolling code tech prevents signal theft. | Remotes require specific syncing steps. |
| Motor | Ultra-quiet belt drive options available. | Chain drives need periodic lubrication. |
| Setup | Clear color-coded wiring terminals. | Rail assembly usually requires two people. |
| Smart Tech | Compatible with Aladdin Connect Wi-Fi. | Wi-Fi hub is often sold separately. |
How Do I Align the Genie Safety Sensors Correctly?
Safety sensors (photo-eyes) are not optional; they are a federal safety requirement. They shoot an invisible infrared beam across the door opening. If anything breaks the beam, the door immediately reverses.
According to the U.S. Consumer Product Safety Commission (CPSC), approximately 30,000 garage door-related injuries occur annually, making precise sensor installation vital.
Install the sensors exactly 6 inches above the garage floor on both vertical tracks.
“Proper alignment of the photo-eye sensors is not just a code requirement; it is the primary failsafe preventing catastrophic property damage,” notes certified garage door technician Mark Davies.
Ensure both sensor lenses are pointing directly at each other. The LED on the sending sensor will glow solid red, and the receiving sensor will glow solid green when perfectly aligned.
Frequently Asked Questions About Genie Intellicode Setup
Even with a great manual, a few hiccups can happen. Here are the answers to the most common user questions.
Why is my Genie Intellicode remote not programming?
If the remote refuses to sync, the most common culprit is a weak battery. Replace the remote battery with a fresh CR2032 coin cell. Additionally, ensure you are pressing the Learn Button on the motor unit before pressing the remote button.
How often should I change the batteries in my Genie remote?
For optimal performance, replace your remote batteries every 12 to 18 months. If you notice the remote only works when you are standing very close to the garage, it is a clear sign the battery is dying.
Can I use an old Genie remote with a new Intellicode opener?
Generally, no. Older Genie remotes used fixed DIP switches, while modern Intellicode systems use rolling code technology. They are not cross-compatible. You must use a remote specifically labeled as “Intellicode” or “Series II” compatible.
What does a blinking red light on the Genie opener mean?
A blinking red light on the powerhead or wall console usually indicates an issue with the safety sensors. Check for cobwebs blocking the lenses, ensure the wires are securely plugged into the back of the motorhead, and verify that the tracks haven’t bent, knocking the sensors out of alignment.
How do I adjust the travel limits?
Locate the limit adjustment screws on the side of the powerhead. Turn the “UP” screw clockwise to increase travel distance, or counter-clockwise to decrease it. Make only one-quarter turn adjustments at a time, testing the door after each tweak to prevent it from straining against the floor.
Final Thoughts
Successfully completing your Genie Intellicode Garage Door Opener Installation Manual steps brings a massive sense of accomplishment and adds immediate value to your home. By following these precise measurements and taking the time to align your safety sensors, you ensure a quiet, secure, and long-lasting system.
