Introduction
Dealing with a malfunctioning garage door can be incredibly frustrating, especially when you are rushing to leave for work in the morning. If your door refuses to respond, a faulty Genie Intellicode Garage Door Opener Circuit Board is often the hidden culprit behind the issue. Read on to learn how to easily diagnose, repair, or replace this vital component and get your system running smoothly again.

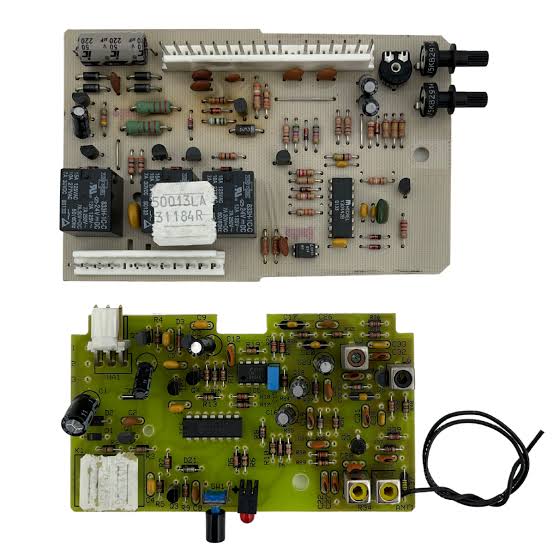

Understanding Your Genie Intellicode Garage Door Opener Circuit Board
Think of the circuit board as the “brain” of your entire garage door system. It receives signals from your remote controls, processes safety sensor data, and tells the motor exactly when to start and stop.
Unlike older models that used fixed DIP switches, the Genie Intellicode Garage Door Opener Circuit Board utilizes rolling code technology. This advanced security feature changes the access code billions of times to prevent thieves from copying your remote’s signal.
Understanding how this vital component integrates into the broader <a href=”https://en.wikipedia.org/wiki/Garage_door_opener” target=”_blank” rel=”noopener noreferrer”>garage door opener mechanism</a> can help you appreciate its critical role in your home’s daily security. When this logic board fails, your entire system essentially goes blind and deaf.
Industry data indicates that electrical issues, particularly power surges, account for nearly 30% of all residential electronic logic board failures. Because these boards are highly sensitive to voltage spikes, they require careful handling and proper diagnosis before any replacement occurs.
Top Signs Your Logic Board is Failing
Before you order a replacement part, you need to confirm the circuit board is actually the problem. Here are the most common symptoms of a failing logic board:
- Unresponsive Controls: Neither your wall console nor your handheld remotes trigger the motor.
- The “Humming” Motor: The motor hums or clicks loudly for a second, but the door does not move.
- Blinking LED Error Codes: The motor head’s LED light flashes in specific patterns (e.g., 3 or 4 rapid flashes) indicating a microprocessor failure.
- Random Reversals: The door closes halfway and immediately reverses back up without any physical obstruction.
- Dead Accessories: Your wireless keypad or vehicle’s built-in HomeLink system suddenly stops syncing with the opener.
If you experience a combination of these issues, it is highly likely your Genie Intellicode Garage Door Opener Circuit Board has suffered internal damage.
Pros and Cons: Repairing vs. Replacing the Circuit Board
Homeowners often wonder if they should attempt to repair the existing board or simply buy a new one. Below is a quick comparison to help you make an informed decision.
| Feature | Repairing the Board (Soldering) | Replacing the Board (Recommended) |
|---|---|---|
| Cost | Low (Under $20 for components) | Moderate ($50 – $110 for a new OEM part) |
| Skill Level | Advanced (Requires micro-soldering) | Beginner (Basic hand tools required) |
| Time Required | 2 to 4 hours of troubleshooting | 15 to 30 minutes of labor |
| Reliability | Low (Other capacitors may fail soon) | High (Brand new factory-tested unit) |
| Warranty | None | Usually includes a 1-year manufacturer warranty |
Expert Insight: As certified garage door technician David Reynolds explains, “Replacing a fried logic board is almost always more cost-effective and safer than buying a brand-new opener unit. It saves homeowners up to 70% on replacement costs while restoring full factory functionality.”
Step-by-Step Tutorial: Replacing the Circuit Board Safely
Replacing the board is a straightforward DIY task if you follow the correct safety protocols. Always prioritize safety when working with electricity and heavy machinery.
Tools You Will Need:
- #2 Phillips head screwdriver
- 5/16-inch nut driver
- Smartphone (for taking reference photos)
- Safety glasses and insulated work gloves
- A step ladder
Step 1: Disconnect the Power Source Safety is your top priority. Unplug the garage door opener from the ceiling electrical outlet. If it is hardwired, go to your home’s main electrical panel and flip the dedicated breaker to the “OFF” position. Wait exactly 5 minutes to allow the internal capacitors to fully discharge their stored energy.
Step 2: Remove the Motor Head Cover Set up your step ladder safely beneath the motor unit. Use your 5/16-inch nut driver to remove the four sheet metal screws securing the outer light lens and motor cover. Gently slide the cover off and set it aside.
Step 3: Document the Wiring Harness Before you pull a single wire, take out your smartphone and snap a clear, well-lit photo of the circuit board’s wiring connections. Pay special attention to the color-coded plugs and the thin, black antenna wire. This photo will be your lifeline during reassembly.
Step 4: Detach the Old Board Carefully squeeze the plastic tabs on the wiring harnesses and pull them straight out. Use your Phillips screwdriver to remove the mounting screws securing the Genie Intellicode Garage Door Opener Circuit Board to the chassis. Lift the board out gently.
Step 5: Install the Replacement Board Ensure your new replacement board (commonly model numbers like 36179R.S or 38874R.S) matches your exact opener unit. Lower it into the chassis, secure it with the mounting screws, and reconnect the wiring harnesses exactly as shown in your reference photo. Ensure the antenna wire hangs freely and is not pinched.
Step 6: Reassemble and Test the System Replace the motor cover and secure it with the screws. Restore power to the unit by plugging it in or flipping the breaker. The motor lights should turn on. Test the wall console to ensure the door opens and closes smoothly.
Step 7: Reprogram Your Remotes Because the new board has a fresh microchip, your old remotes will no longer work automatically. Locate the “Learn Code” button on the new circuit board. Press and release it (the LED will begin blinking), then press the button on your remote control. The system will sync within 10 seconds.
Frequently Asked Questions (FAQ)
Q1: How much does a replacement Genie Intellicode circuit board cost? A brand-new, OEM (Original Equipment Manufacturer) replacement circuit board typically costs between $50 and $110, depending on your specific Genie model. This is significantly cheaper than replacing the entire garage door opener motor, which can cost upwards of $300 plus professional installation fees.
Q2: Can a lightning strike or power surge fry my logic board? Yes, absolutely. Power surges from lightning strikes or grid fluctuations are the number one cause of circuit board failure. To prevent future damage, it is highly recommended to plug your garage door opener into a heavy-duty, surge-protecting power strip rather than directly into the wall outlet.
Q3: How long does a standard Genie circuit board typically last? Under normal conditions, a high-quality logic board should last between 10 to 15 years. However, environmental factors like extreme garage temperature fluctuations, high humidity, and frequent power surges can significantly reduce its lifespan to just 5 to 7 years.
Q4: Will replacing the board erase my remote programming? Yes. Because the rolling code security is housed within the microchip on the circuit board, installing a new board resets the system’s memory. You will need to manually reprogram all of your handheld remotes, wireless keypads, and vehicle HomeLink systems using the new “Learn” button.
Q5: Is it safe to bypass the circuit board temporarily to close my door? No, it is highly unsafe and practically impossible to bypass the logic board. The circuit board controls the safety reversal sensors and the motor’s braking mechanism. Attempting to hotwire the motor will cause the heavy door to slam shut uncontrollably, posing a severe risk of injury or property damage.
Conclusion
Troubleshooting and fixing your Genie Intellicode Garage Door Opener Circuit Board is a highly rewarding DIY project that saves you money and restores your home’s security. By carefully diagnosing the issue, following safety protocols, and swapping out the logic board, you can extend the life of your garage door system for another decade.
