Introduction
There are few things more frustrating than pressing your remote and watching your Genie garage door opener red LED lights flash instead of opening the door. This warning signal usually indicates a safety sensor misalignment, an obstruction, or a specific component failure that prevents the system from operating safely. Don’t worry; in most cases, you can diagnose and resolve this issue yourself without calling a technician. This guide will walk you through exactly what those blinking red lights mean and how to get your garage door working smoothly again.
What Do Genie Garage Door Opener Red LED Lights Mean?

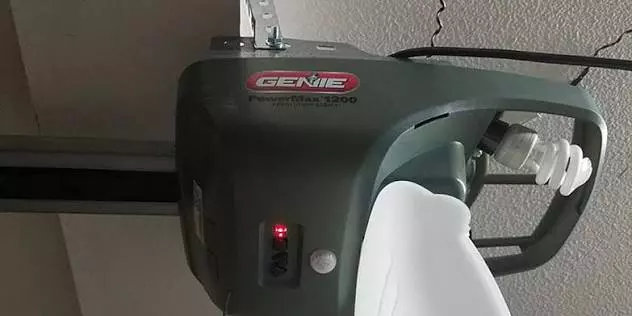

Before grabbing tools, it is vital to understand that the Genie garage door opener red LED lights serve as a diagnostic communication system. Genie openers typically feature two sets of LEDs: one on the motor unit (logic board) and one on the safety sensors near the floor.
According to general engineering principles for automated safety systems found on Wikipedia, modern openers are mandated to include photoelectric eyes that reverse the door if an object breaks the beam. When your Genie unit displays red lights, it is actively enforcing this safety protocol or reporting an internal voltage/component fault.
Common Red Light Patterns and Their Meanings
| LED Location | Light Behavior | Likely Cause | Urgency |
|---|---|---|---|
| Safety Sensor | Solid Red / Blinking | Misalignment or Obstruction | High |
| Motor Unit | 1-2 Blinks | Travel Limit Error | Medium |
| Motor Unit | 3-4 Blinks | Safety Beam Fault | High |
| Motor Unit | Rapid Flashing | Logic Board / Capacitor Issue | High |
| Wall Console | Blinking Red | Lock Mode Activated | Low |
Note: Always consult your specific model’s manual, as blink codes can vary between Intellicode 1 and Intellicode 2 models.
Why Are My Genie Safety Sensors Blinking Red?
The most frequent cause of Genie garage door opener red LED lights is a problem with the Safe-T-Beam® system. If the door refuses to close and the sensor LED is red or blinking, follow these diagnostic steps:
Step 1: Check for Physical Obstructions
Inspect the area between the two sensors mounted 4–6 inches above the floor. Even a small cobweb, leaf, or tool handle can break the infrared beam. Clear the path completely and test the door.
Step 2: Verify Sensor Alignment
Genie sensors must face each other directly. A bump from a car or storage item often knocks them out of position.
- Loosen the wing nut on the blinking sensor bracket.
- Gently rotate the sensor housing until the LED turns solid green (receiver) or stops blinking red.
- Tighten the wing nut while holding the sensor steady.
- Test the door operation.
Step 3: Inspect Wiring Connections
If alignment doesn’t fix the red light, check the wires running from the sensors to the motor head. Look for:
- Pinched or cut wires near the door tracks.
- Loose terminal connections at the back of the opener.
- Corrosion on wire ends (trim and re-strip if necessary).
Expert Tip: Use a multimeter set to DC voltage to test sensor wires. You should read approximately 5V DC across the sensor terminals when powered. Zero volts indicates a broken wire or failed logic board output.
How to Reset Genie Garage Door Opener After Red Light Errors
Sometimes the Genie garage door opener red LED lights persist due to a software glitch or corrupted travel limits rather than hardware failure. Performing a system reset can clear false error states.
Step-by-Step Reset Procedure
- Locate the Learn Button: Find the square “Learn” button on the motor unit (usually near the antenna wire).
- Clear Memory: Press and hold the Learn button for 10 seconds until the round LED turns off. This erases all remotes and keypads.
- Reset Travel Limits:
- Press and hold the DOWN arrow button until the door fully closes. Release.
- Press and hold the UP arrow button until the door fully opens. Release.
- Press the SET/PRGM button once to save new limits.
- Reprogram Remotes: Press the Learn button briefly (LED blinks), then press your remote button. Repeat for all transmitters.
- Test Safety Reversal: Place a 2×4 board flat on the floor under the door. Close the door; it must reverse upon contact. If not, adjust force settings per manual instructions.
When Red Lights Indicate Logic Board Failure
If you’ve verified sensors, wiring, and performed resets but Genie garage door opener red LED lights continue flashing rapidly (often 6+ blinks), the logic board may be failing. This is common after power surges or lightning strikes.
Signs of Logic Board Issues
- Opener hums but doesn’t move despite functional capacitor.
- LEDs behave erratically or don’t respond to reset attempts.
- Intermittent operation that worsens over time.
- Visible burn marks or swollen capacitors on the circuit board.
Replacement Considerations
Replacing a logic board costs $80–$150 versus $300–$500 for a new opener. If your unit is over 15 years old, replacement is often more cost-effective. Always match the exact model number when ordering parts.
FAQ: Genie Garage Door Opener Red LED Lights
Q1: Can I bypass the red light on my Genie opener temporarily?
You can hold the wall console button continuously to override safety beams for emergency closure, but never bypass sensors permanently. This disables critical safety features and violates federal regulations. Fix the underlying issue instead.
Q2: Why does my Genie opener show red lights only when it rains?
Moisture infiltration in sensor housings or outdoor wiring junctions causes intermittent shorts. Seal sensor lenses with silicone caulk, ensure wire splices are waterproofed with heat-shrink tubing, and verify conduit integrity where wires enter the garage.
Q3: How long do Genie safety sensors typically last?
Quality sensors last 10–15 years under normal conditions. Premature failure often results from UV exposure, physical damage, or voltage spikes. Replace both sensors as a matched pair even if only one appears faulty.
Q4: Does a red light mean I need professional service?
Not necessarily. Over 70% of red light issues stem from simple misalignment or obstructions fixable in under 10 minutes. Call a certified Genie dealer only after completing all DIY troubleshooting steps outlined above, or if electrical testing reveals component failure beyond your comfort level.
Q5: Will replacing batteries in my remote fix the red light?
No. Remote batteries affect transmitter range, not the opener’s diagnostic LEDs. Genie garage door opener red LED lights relate exclusively to the motor unit, safety system, or wall console—not handheld remotes. However, weak remotes can mimic operational problems, so replace batteries annually as preventive maintenance.
Q6: What if the red light comes on mid-cycle while closing?
This indicates an active obstruction detection event. Immediately inspect the door path, track alignment, and spring tension. Binding rollers or damaged tracks can create resistance that triggers safety reversal. Lubricate moving parts with white lithium grease and tighten loose track bolts before retesting.
Conclusion
Understanding your Genie garage door opener red LED lights transforms a confusing warning into actionable information. Most issues resolve through sensor realignment, obstruction removal, or limit resets—saving you unnecessary service calls and expenses. Remember that these lights exist to protect your family and property; never ignore or disable them. Regular monthly inspections of sensors and annual lubrication prevent many common failures before they start.
