Genie Garage Door Opener Prior To 1995

Introduction

Owning a home with original fixtures can be charming, but operating a Genie garage door opener prior to 1995 often brings unique challenges regarding safety and reliability. If you are struggling with an aging unit that lacks modern sensors or remote compatibility, you are not alone in navigating these vintage mechanical quirks. This guide provides empathetic, expert-backed solutions to help you safely maintain, upgrade, or responsibly replace your pre-1995 Genie system.

Identifying Your Pre-1995 Genie Model Accurately

Before attempting any repairs or ordering parts, you must positively identify your specific unit. The phrase “Genie garage door opener prior to 1995” covers a wide range of models, including the iconic Screw Drive, Chain Drive, and early Belt Drive systems. Misidentification is the most common reason DIY repairs fail on vintage units.

How to Locate Your Model Number

1. Check the Motor Head: Remove the light lens cover. The model number (e.g., SD-5000, G-2000) is typically stamped on a metal plate or sticker inside the housing.
2. Inspect the Rail: For screw drive models, the rail type determines the carriage assembly needed. Measure the rail width; pre-1995 rails differ significantly from post-2000 standards.

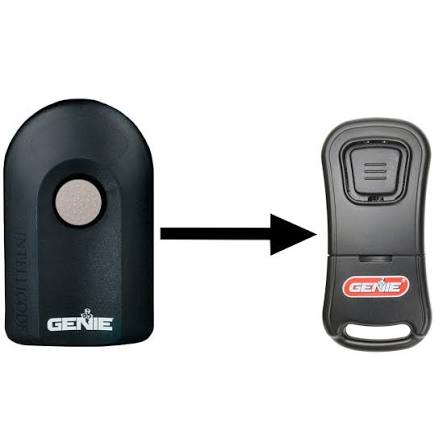

3. Review the Remote Frequency: Older Genies often used 390 MHz dip-switch remotes. If your remote has tiny switches inside rather than a “learn” button, it confirms a pre-1995 manufacture date.

Expert Insight: According to industry technicians, over 40% of service calls for vintage openers result from incorrect part ordering due to model confusion. Always verify the exact manufacturing code, not just the series name.

Critical Safety Risks of Pre-1995 Openers

The most vital information for owners of a Genie garage door opener prior to 1995 concerns safety compliance. In 1993, U.S. federal law mandated photoelectric reversal sensors for all residential garage door openers. Units manufactured before this mandate lack this life-saving feature.

The Dangers of Missing Photo-Eye Sensors

• Crush Hazard: Without sensors, the door will not reverse if it strikes a child, pet, or object. It relies solely on pressure sensitivity, which may not trigger until significant force is applied.
• Entrapment Risk: Older limit switches can drift over time, causing the door to close too far and trap vehicles or damage the floor.
• Liability Issues: Insurance claims related to injuries caused by non-compliant openers can be complicated.

According to Wikipedia, the Consumer Product Safety Commission (CPSC) estimates that properly functioning photoelectric sensors have prevented thousands of entrapment deaths since their mandatory implementation. If your pre-1995 Genie lacks these sensors, retrofitting a universal sensor kit or replacing the unit is strongly recommended.

Troubleshooting Common Vintage Genie Problems

Vintage Genie units are mechanically robust but suffer from age-related wear. Below are solutions to the most frequent issues encountered with a Genie garage door opener prior to 1995.

1. Door Reverses Before Hitting the Floor

• Cause: Worn limit switch contacts or misadjusted travel limits.
• Fix: Locate the limit adjustment screws on the motor head. Turn the “Down” limit screw clockwise in small increments (¼ turn at a time). Test after each adjustment.
• Note: If adjustments fail, the internal cam gear may be stripped—a common failure point in units over 25 years old.

2. Excessive Noise or Grinding

• Cause: Lack of lubrication on the screw drive or worn carriage.
• Fix: Apply Genie-specific screw drive lubricant (not white lithium grease) directly to the rail. Use approximately 2 tablespoons, distributed evenly along the entire length. Operate the door 3–4 cycles to distribute.
• Warning: Never use WD-40 or silicone spray on screw drives; they attract dust and accelerate wear.

3. Remote Works Intermittently

• Cause: Failing capacitor on the logic board or corroded dip switches.
• Fix: Clean dip switch contacts with electrical contact cleaner. If the issue persists, test voltage at the antenna wire connection. A reading below 12V DC indicates a failing transformer or capacitor.

Repair vs. Replace: Making the Right Choice

Deciding whether to repair or replace a Genie garage door opener prior to 1995 requires balancing cost, safety, and longevity. Use this comparison table to guide your decision:

When to Definitely Replace

• Your unit lacks photoelectric sensors and cannot accommodate a retrofit kit.
• The main drive gear or motor shows visible metal fatigue.
• You’ve spent more than $150 on repairs in the last two years.
• The unit uses a proprietary frequency no longer supported by FCC regulations.

Step-by-Step: Retrofitting Safety Sensors on Pre-1995 Genies

If you choose to keep your vintage opener, adding safety sensors is non-negotiable. Here is a precise tutorial for installing a universal photo-eye retrofit kit compatible with most pre-1995 Genie models:

1. Purchase a Compatible Kit: Ensure the kit specifies compatibility with “pre-1995 Genie” or “dip-switch era” openers. Standard modern kits will not interface correctly.
2. Mount Sensors: Install sending and receiving sensors 4–6 inches above the floor on both sides of the door track. Use the provided brackets; do not glue or tape.
3. Wire to Logic Board: Disconnect power. Locate the terminal block labeled “SAFE” or “SENSOR.” Connect the retrofit harness according to the kit’s wiring diagram—typically red to +12V, black to ground, and white to signal.
4. Align Beams: Power on. Adjust sensor angles until both indicator LEDs show solid green (not blinking). Misalignment by even 2mm will prevent operation.
5. Test Reversal: Place a 2×4 board vertically in the door path. Close the door. It must reverse within 0.5 seconds of beam interruption. Repeat test monthly.

⚠️ Safety Warning: If the retrofit kit does not integrate seamlessly or the door fails reversal testing, stop use immediately. Do not bypass sensors under any circumstances.

FAQ: Genie Garage Door Opener Prior To 1995

Can I still get replacement parts for a Genie garage door opener prior to 1995?

Yes, but availability is limited. Specialty vendors and eBay often stock NOS (New Old Stock) parts like carriages, limit switches, and capacitors. However, critical components like logic boards and motors are largely discontinued. Always cross-reference part numbers with your exact model before purchasing.

Is it legal to continue using a pre-1995 Genie without sensors?

While not illegal for existing installations in private residences, it violates current safety standards and creates significant liability risk. Landlords and property managers are generally required to upgrade to compliant systems. For homeowners, the ethical and practical recommendation is immediate sensor retrofit or replacement.

Why does my vintage Genie opener work slower in cold weather?

Pre-1995 Genie screw drives use lubricants that thicken below 32°F (0°C). Switch to cold-weather synthetic screw drive lubricant rated for -20°F. Also check that the door springs are properly balanced; cold makes unbalanced doors harder to lift, straining the aging motor.

Can I add smart home features to my pre-1995 Genie?

Yes, through external smart controllers like Chamberlain MyQ or Tailwind iQ3. These devices connect to your existing wall button terminals and provide Wi-Fi control without modifying the vintage opener internals. Note: This adds convenience but does not add safety sensors—you must address those separately.

How long should a Genie garage door opener prior to 1995 last?

With meticulous maintenance, some units have operated 30+ years. However, the safe and reliable service window is typically 20–25 years. Beyond that, plastic gears degrade, capacitors leak, and safety risks escalate exponentially. If your unit is approaching or exceeding 30 years, proactive replacement is advised.

Conclusion

Maintaining a Genie garage door opener prior to 1995 requires dedication to safety, accurate identification, and honest assessment of its remaining useful life. While these vintage machines are celebrated for their durability, they were designed in an era before modern safety mandates—and that gap cannot be ignored. Whether you choose to retrofit sensors, perform targeted repairs, or invest in a new compliant system, prioritize protection over nostalgia.
