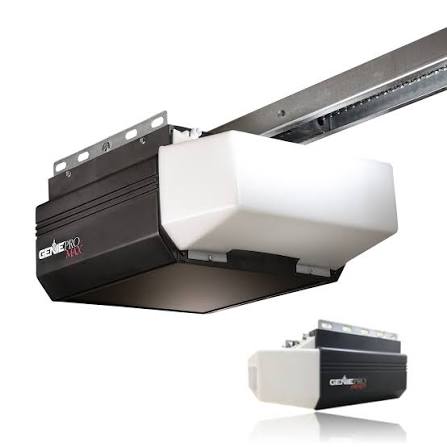

Genie Garage Door Opener Model Pmx500Ic B

Introduction

Is your garage door acting up, leaving you stranded or worried about security? You are not alone; thousands of homeowners face similar frustrations when their reliable opener suddenly stops responding. If you own the Genie Garage Door Opener Model PMX500IC/B, understanding its specific mechanics is the first step toward a quick and cost-effective solution. This guide is designed to help you troubleshoot, maintain, and maximize the lifespan of this robust screw-drive unit, ensuring your home remains safe and accessible.

Understanding the Genie PMX500IC/B Architecture

Before diving into repairs or maintenance, it is crucial to understand what makes the Genie Garage Door Opener Model PMX500IC/B unique. Unlike chain-drive openers that can be noisy, or belt-drive systems that require frequent tension adjustments, the PMX500IC/B utilizes a screw-drive mechanism. This design uses a threaded steel rod to move the trolley that lifts the door.

The “PMX” series is renowned for its durability in varying temperatures, making it a favorite in regions with harsh winters or hot summers. The “IC” typically denotes an integrated control system, while the “B” often refers to specific batch or feature variations, such as battery backup compatibility or specific rail lengths. Knowing these details helps you source the correct replacement parts and avoid compatibility issues.

Key Specifications at a Glance

Why Choose the Screw-Drive Mechanism?

Many homeowners ask why they should stick with or choose a screw-drive model like the PMX500IC/B. The answer lies in reliability and part count. A screw-drive system has fewer moving parts than a chain drive. There are no chains to stretch, sag, or lubricate excessively. This simplicity translates to lower long-term maintenance costs.

According to industry standards, screw-drive openers are particularly effective for heavy wooden doors or insulated steel doors because they provide consistent torque. However, they do require specific care regarding lubrication, which we will discuss later. For more detailed engineering principles behind garage door mechanisms, you can refer to general mechanical definitions on Wikipedia.

Common Issues and Troubleshooting Steps

Even the most durable machines encounter issues. Here are the most common problems associated with the Genie Garage Door Opener Model PMX500IC/B and how to fix them.

1. The Door Reverses Before Closing

This is a safety feature triggered by misaligned sensors or excessive force settings.

• Check the Sensors: Look at the photo-eye sensors near the floor on both sides of the door. Ensure the LED lights are solid (not blinking). If one is blinking, check for obstructions like leaves, spiderwebs, or dirt.
• Clean the Lenses: Use a soft, dry cloth to wipe the sensor lenses.
• Adjust Force Settings: If sensors are clear, the close-force adjustment may be too low. Locate the adjustment dials on the motor head. Turn the “Close” dial slightly clockwise to increase force. Note: Do this incrementally. Too much force is dangerous.

2. The Motor Runs, But the Door Doesn’t Move

If you hear the motor humming but the door stays put, the issue is likely with the drive carriage or the screw itself.

• Inspect the Carriage: Check if the plastic release lever is engaged. If the emergency release cord was pulled, the trolley is disconnected from the drive. Re-engage it by pulling the handle toward the motor until it clicks.
• Check the Screw Thread: Over time, the nylon insert in the trolley can wear down. If the threads on the steel rod are clean but the trolley slips, you may need to replace the trolley assembly.

3. Excessive Noise During Operation

While screw drives are quieter than chains, they should not be grinding or screeching.

• Lubrication is Key: Unlike chain drives, screw drives require specific lubrication. Use a high-quality lithium-based grease or a specialized garage door screw-drive lubricant. Avoid WD-40, as it is a solvent, not a lubricant, and will attract dust, causing more wear.
• Apply Correctly: Apply a thin bead of grease along the entire length of the screw thread. Run the door up and down twice to distribute it evenly. Wipe away any excess to prevent dripping.

Step-by-Step Maintenance Guide

To ensure your Genie Garage Door Opener Model PMX500IC/B lasts for its full warranty period and beyond, follow this maintenance routine every six months.

1. Safety First: Disconnect the power to the opener before performing any physical inspections.
2. Visual Inspection: Check the steel screw rod for rust or debris. If rust is present, clean it with a wire brush and apply a rust-inhibiting primer before greasing.
3. Tighten Hardware: Vibrations can loosen bolts. Check the mounting brackets on the ceiling and the rail connections. Tighten any loose nuts or bolts using a socket wrench.
4. Test Balance: Disconnect the opener using the emergency release. Manually lift the door halfway. It should stay in place. If it falls or rises, your springs are unbalanced. Warning: Spring adjustment is dangerous and should be done by a professional.
5. Reconnect and Test: Reconnect the power and test the auto-reverse feature. Place a 2×4 piece of wood on the floor under the door. Close the door. It should reverse immediately upon touching the wood.

Smart Home Integration: Modernizing Your PMX500IC/B

One of the advantages of the Genie PMX series is its adaptability to modern smart home ecosystems. While older models may not have built-in Wi-Fi, the PMX500IC/B is compatible with the Aladdin Connect system.

By adding an Aladdin Connect door controller, you can:

• Open and close your garage from anywhere using your smartphone.
• Receive notifications when the door is left open.
• Grant temporary access to guests or delivery services.

This upgrade transforms a standard opener into a secure, intelligent entry point for your home. It is a cost-effective alternative to buying a brand-new smart opener.

Pros and Cons of the Genie PMX500IC/B

To help you decide if this model is right for your needs, or if you should consider upgrading, here is a balanced view.

Pros:

• Durability: Fewer moving parts mean less wear and tear.
• Temperature Resilience: Performs well in extreme heat and cold compared to belt drives.
• Security: Genie’s CodeDodger technology prevents code grabbing by hackers.
• Quiet Operation: Significantly quieter than traditional chain drives.

Cons:

• Lubrication Needs: Requires regular greasing to prevent noise and wear.
• Vibration: Can transmit more vibration to the ceiling structure than belt drives.
• Speed: Generally slower opening/closing speeds compared to high-end belt drives.

Frequently Asked Questions (FAQ)

Q1: How do I program a new remote for the Genie PMX500IC/B?

A: Locate the “Learn” button on the motor head (usually purple or orange). Press and release it. Within 30 seconds, press the button on your new remote three times. The motor light should blink or turn off, indicating success.

Q2: Can I replace the screw drive with a chain drive?

A: No, the rail systems are not interchangeable. If you want to switch drive types, you must replace the entire opener unit, including the rail and motor head.

Q3: Why is my Genie opener beeping?

A: A beeping sound often indicates that the battery backup (if equipped) is failing or needs charging. It can also signal a sensor obstruction. Check the battery status light on the motor unit.

Q4: Is the Genie PMX500IC/B compatible with HomeKit or Alexa?

A: Not natively. You need a third-party hub like the Aladdin Connect or a universal smart garage controller that integrates with these platforms to enable voice control.

Q5: How often should I lubricate the screw drive?

A: It is recommended to lubricate the screw drive every 6 to 12 months, depending on usage frequency and environmental conditions. In dusty areas, more frequent cleaning and lubrication may be necessary.

Q6: What should I do if the door opens but won’t close?

A: This is almost always a sensor issue. Ensure the sensors are aligned and nothing is blocking the beam. If the lights on the sensors are blinking, realign them until both lights are solid.

Conclusion

The Genie Garage Door Opener Model PMX500IC/B remains a solid choice for homeowners who value durability and straightforward mechanics. By understanding its screw-drive nature and adhering to a simple maintenance schedule, you can enjoy years of reliable service. Whether you are troubleshooting a minor sensor issue or looking to integrate smart home features, this model offers the flexibility and strength needed for modern living.

Don’t let a malfunctioning garage door disrupt your day. Share this guide with friends and family who might be struggling with their own openers, and keep your community safe and informed!
