If your garage door opener isn’t functioning properly or you’re planning to install a new one, you may be searching for information about the Genie Garage Door Opener Model PMX500I C B. This model is part of Genie’s well-known line of residential garage door openers designed for durability, safety, and convenience.
Understanding how the opener works can help you install it correctly, troubleshoot common issues, and extend its lifespan. In this guide, we’ll explore the features, installation basics, troubleshooting methods, and maintenance practices for the Genie PMX500I C B system.
What Is the Genie Garage Door Opener Model PMX500I C B?
The Genie Garage Door Opener Model PMX500I C B is a residential garage door opener designed to automate the opening and closing of garage doors using a motorized drive system.
Garage door openers work by using an electric motor connected to a rail system that moves the door via a trolley mechanism. These systems are widely used in residential homes to improve convenience and security.
You can learn more about how garage door openers work here:
https://en.wikipedia.org/wiki/Garage_door_opener
Typical Specifications
| Feature | Description |
|---|---|
| Motor Power | ½ horsepower |
| Drive System | Chain drive |
| Installation Type | Ceiling-mounted |
| Power Source | 120V outlet |
| Safety Technology | Infrared sensors |
This model is designed for standard sectional garage doors commonly used in residential properties.
Key Features of the Genie PMX500I C B
The Genie Garage Door Opener Model PMX500I C B includes several features that make it a practical solution for homeowners.
Reliable Chain Drive System
This opener uses a chain drive mechanism, which is known for strength and durability.
Advantages include:
- reliable lifting power
- strong performance for heavier doors
- lower cost compared with belt drives
However, chain drives may produce slightly more noise.
Safe-T-Beam Safety Sensors
Genie includes its Safe-T-Beam® safety system, which uses infrared sensors mounted near the floor.
If an object interrupts the beam:
- the door stops
- the door reverses automatically
This safety feature helps prevent accidents.

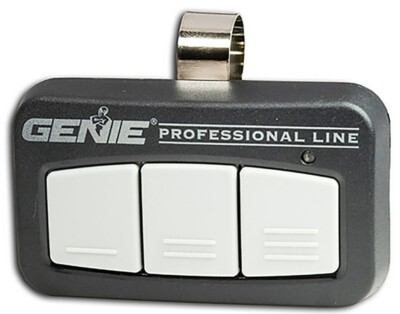

Remote Control Access
The Genie PMX500I C B supports wireless remote transmitters that allow users to operate the garage door from their vehicle.
Typical remote features include:
- rolling code security
- multi-door compatibility
- range of 50–150 feet
Wall Console Control
In addition to remote controls, the opener can be operated using a wall-mounted console located inside the garage.
Common functions include:
- open/close button
- light control
- vacation lock mode
Components of the Genie Garage Door Opener System
Understanding the system components helps when performing maintenance or troubleshooting.
Motor Unit
The motor unit powers the entire system.
Typical specifications include:
- ½ HP motor
- integrated control board
- internal lighting system
Rail and Trolley System
The rail guides the trolley, which connects to the garage door.
When the motor runs, the trolley moves along the rail and lifts or lowers the door.
Drive Chain
The chain transfers motor power to the trolley.
Signs of chain wear include:
- excessive noise
- slack in the chain
- jerky door movement
Safety Sensors
Sensors are installed near the bottom of the door tracks.
They prevent the door from closing if something is in the doorway.
Circuit Board
The circuit board acts as the control center of the opener.
It processes signals from:
- remotes
- sensors
- wall controls
Step-by-Step Installation Overview
Installing the Genie Garage Door Opener Model PMX500I C B requires several steps.
Step 1: Prepare the Garage Door
Before installing the opener:
- ensure the door is balanced
- check springs and cables
- inspect tracks
A balanced door prevents excessive strain on the opener.
Step 2: Install the Rail Assembly
Attach the rail system to the motor unit.
Secure it to the garage ceiling using mounting brackets.
Typical installation height:
- 7–8 feet above the floor
Step 3: Connect the Door Arm
The door arm connects the trolley to the garage door.
Ensure the connection is secure and aligned properly.
Step 4: Install Safety Sensors
Mount the sensors on each side of the garage door.
Recommended height:
- 4–6 inches above the floor
Run the sensor wiring back to the motor unit.
Step 5: Connect Power and Test
Plug the opener into a 120-volt outlet.
Test the door by pressing the wall control button.
Programming Genie Remote Controls
Programming the remote allows you to control the opener from your vehicle.
Remote Programming Steps
- Locate the Learn button on the motor unit.
- Press and release the Learn button.
- Press the button on the remote transmitter.
- Wait for the indicator light to confirm programming.
Your remote should now operate the garage door.
Troubleshooting Common Problems
Even reliable systems like the Genie Garage Door Opener Model PMX500I C B may experience occasional issues.
Problem: Door Won’t Close
Possible causes include:
- blocked safety sensors
- sensor misalignment
- damaged wiring
Cleaning the sensors often resolves the issue.
Problem: Remote Not Working
Possible solutions:
- replace remote batteries
- reprogram the transmitter
- check signal interference
Problem: Door Reverses While Closing
This may occur if:
- the door encounters resistance
- sensors detect obstruction
- travel limits are set incorrectly
Adjusting limit settings may solve the issue.
Average Repair Costs
Garage door opener repair costs vary depending on the component.
| Repair Type | Average Cost |
|---|---|
| Sensor replacement | $50 – $150 |
| Remote replacement | $30 – $80 |
| Chain repair | $80 – $150 |
| Circuit board replacement | $150 – $300 |
Regular maintenance helps avoid costly repairs.
Advantages vs Disadvantages
Advantages
Strong lifting power
The chain drive system handles heavier doors.
Affordable price
Chain-drive openers are typically cheaper than belt-drive models.
Reliable design
Genie openers are known for durability.
Disadvantages
Higher noise levels
Chain-drive systems are louder than belt drives.
Requires maintenance
Chains must be lubricated periodically.
Maintenance Tips for Genie Garage Door Openers
Routine maintenance keeps your opener operating smoothly.
Lubricate Moving Parts
Apply lubricant to:
- chain
- rollers
- hinges
This should be done every 6 months.
Inspect Safety Sensors
Check that sensors are clean and aligned.
Dust or dirt can block the infrared beam.
Tighten Hardware
Garage doors move frequently, which can loosen bolts.
Inspect and tighten hardware regularly.
Test the Door Balance
Disconnect the opener and lift the door manually.
If it doesn’t stay halfway open, the springs may require adjustment.
FAQ About Genie Garage Door Opener Model PMX500I C B
What type of garage door works with the PMX500I C B?
This opener works with most standard sectional residential garage doors.
Is the Genie PMX500I C B noisy?
Because it uses a chain drive system, it may be slightly louder than belt-drive openers.
Can I install the opener myself?
Many homeowners install it themselves, but professional installation is also common.
Why does my garage door reverse when closing?
This usually indicates a sensor issue or an obstruction in the door’s path.
How long does a Genie garage door opener last?
With proper maintenance, most openers last 10–15 years.
How often should I maintain my garage door opener?
Basic maintenance should be performed every 6 months.
Conclusion
The Genie Garage Door Opener Model PMX500I C B is a dependable residential opener designed to provide convenient and secure garage door operation. With its chain-drive system, safety sensors, and remote-control functionality, it remains a practical choice for many homeowners.
By understanding installation procedures, troubleshooting techniques, and maintenance practices, you can keep your Genie opener running efficiently for years.
